Toyota 4Runner: Components

COMPONENTS

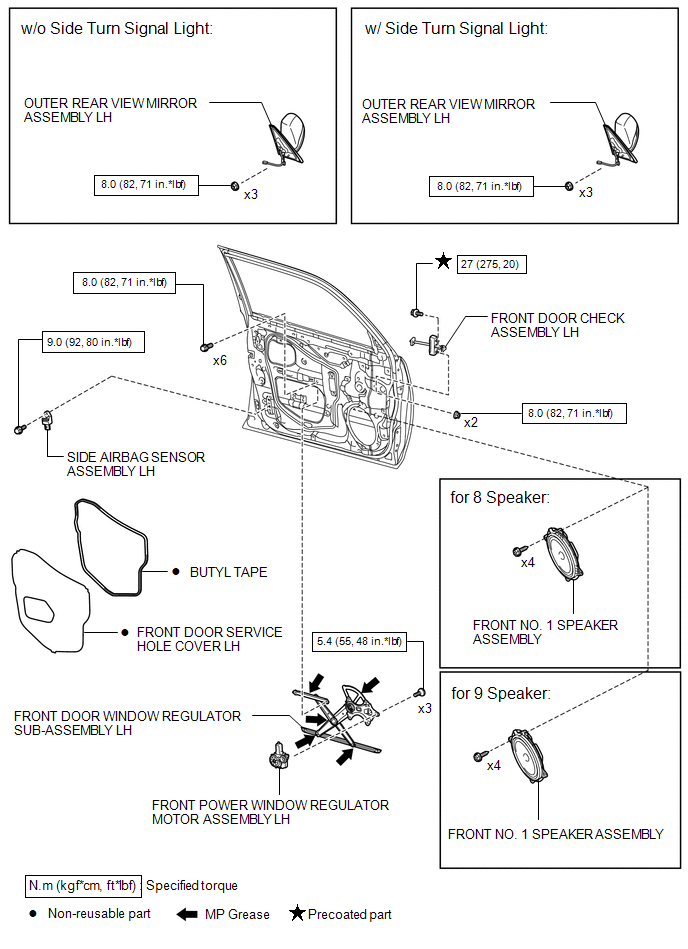

ILLUSTRATION

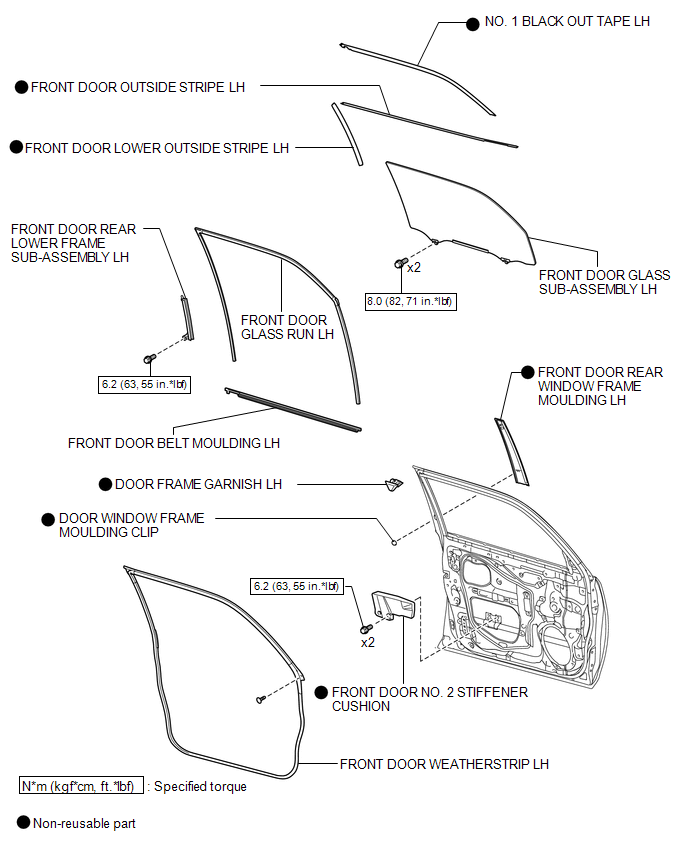

ILLUSTRATION

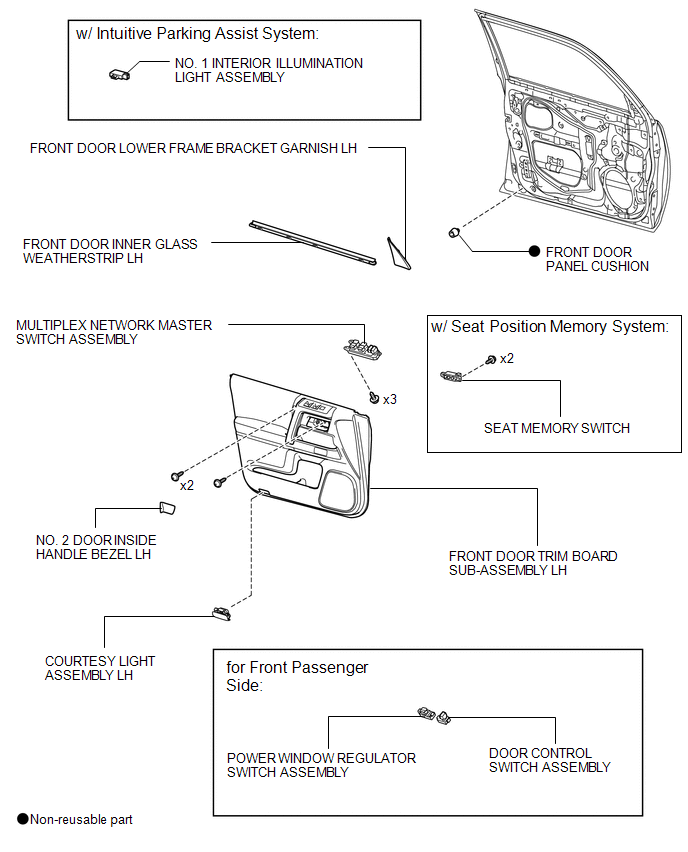

ILLUSTRATION


ILLUSTRATION


Front Door
...

Disassembly
DISASSEMBLY CAUTION / NOTICE / HINT HINT: Use the same procedure for both the RH and LH sides. The procedure listed below is for the LH side. PROCEDURE 1. DISCONNECT CABLE FROM ...
