Toyota 4Runner: Components

COMPONENTS

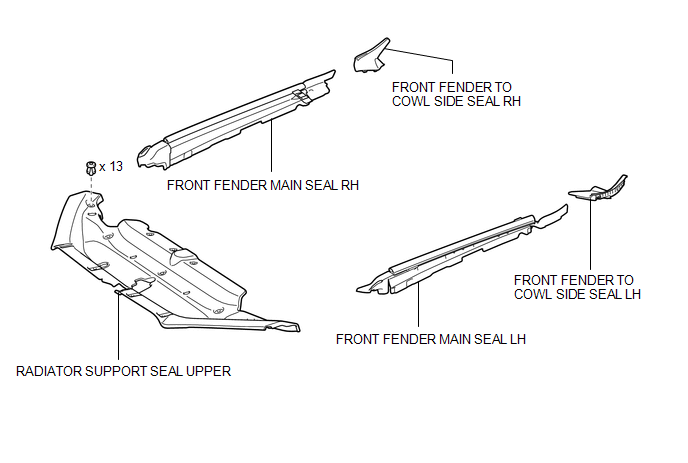

ILLUSTRATION

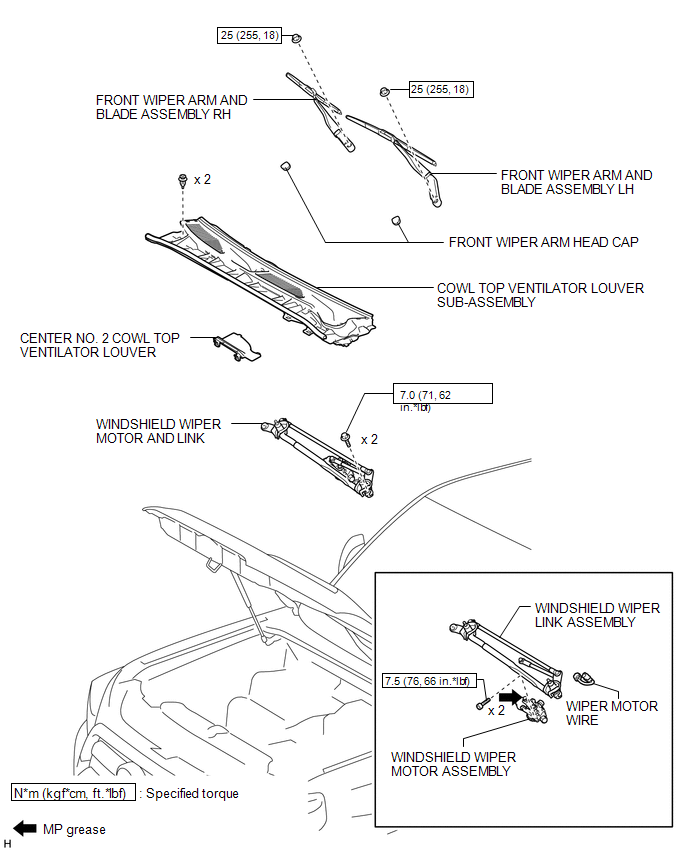

ILLUSTRATION


Front Wiper Motor
...

On-vehicle Inspection
ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY (a) Operate the front wipers while spraying washer fluid on the windshield glass. Make sure that the front ...
