Toyota 4Runner: Components

COMPONENTS

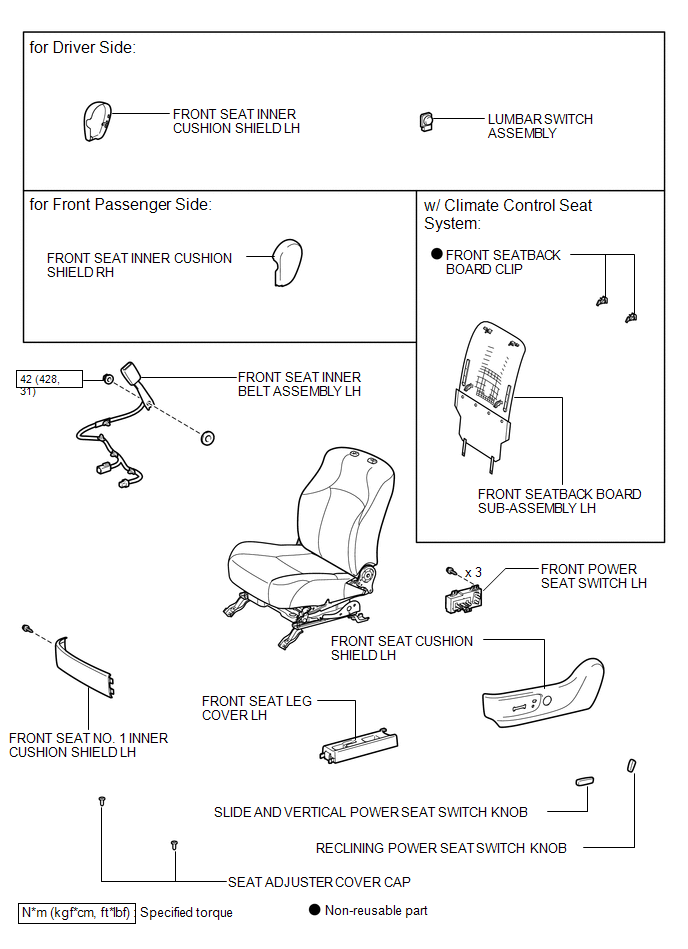

ILLUSTRATION

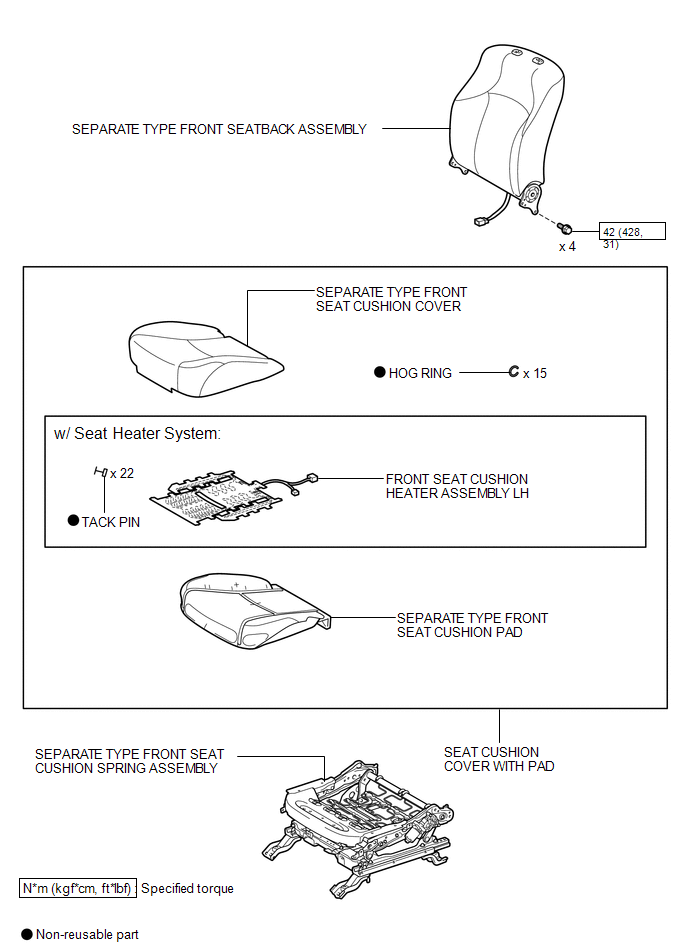

ILLUSTRATION

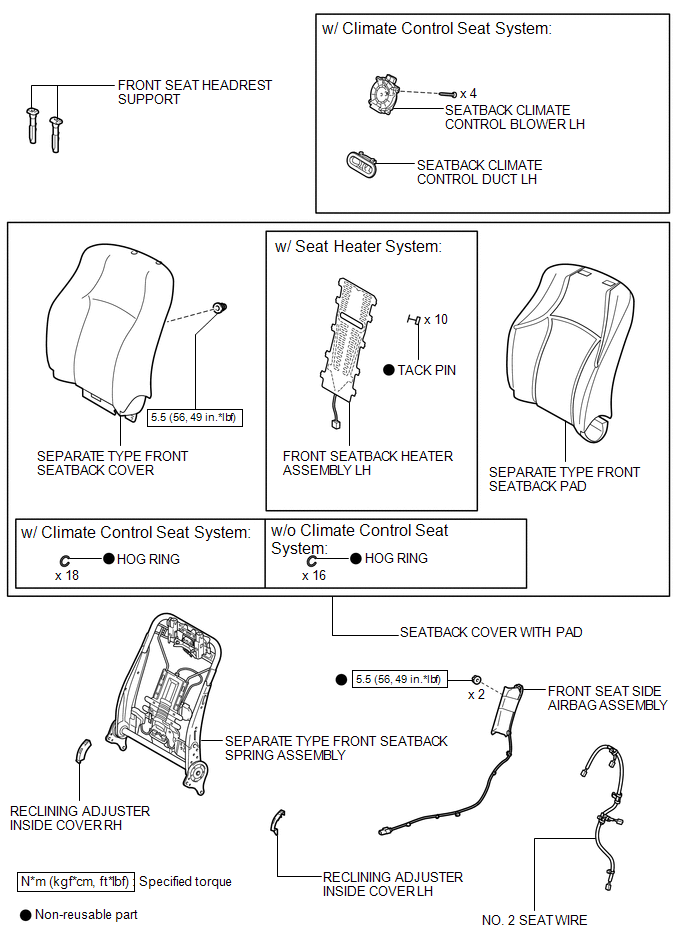

ILLUSTRATION

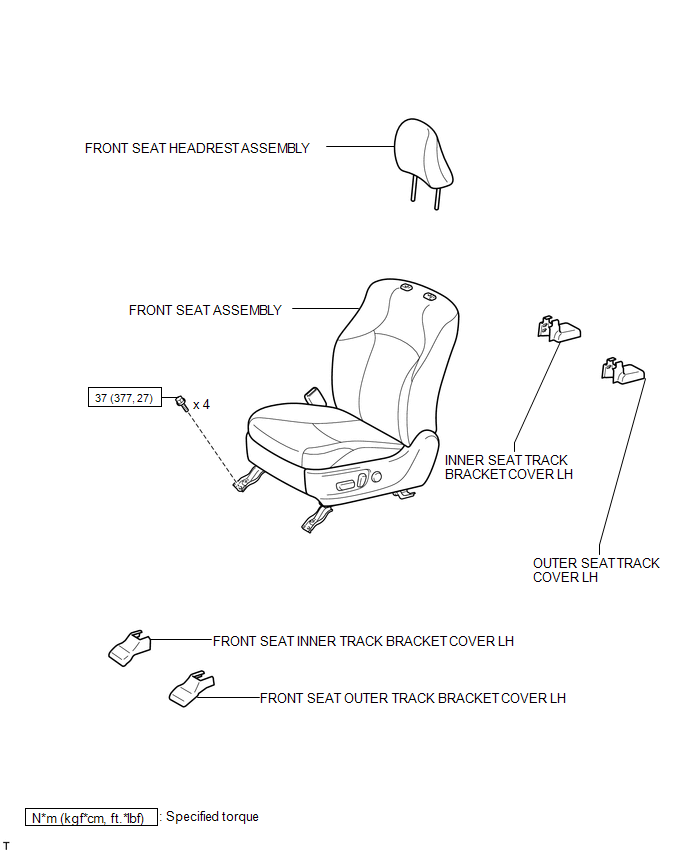

ILLUSTRATION

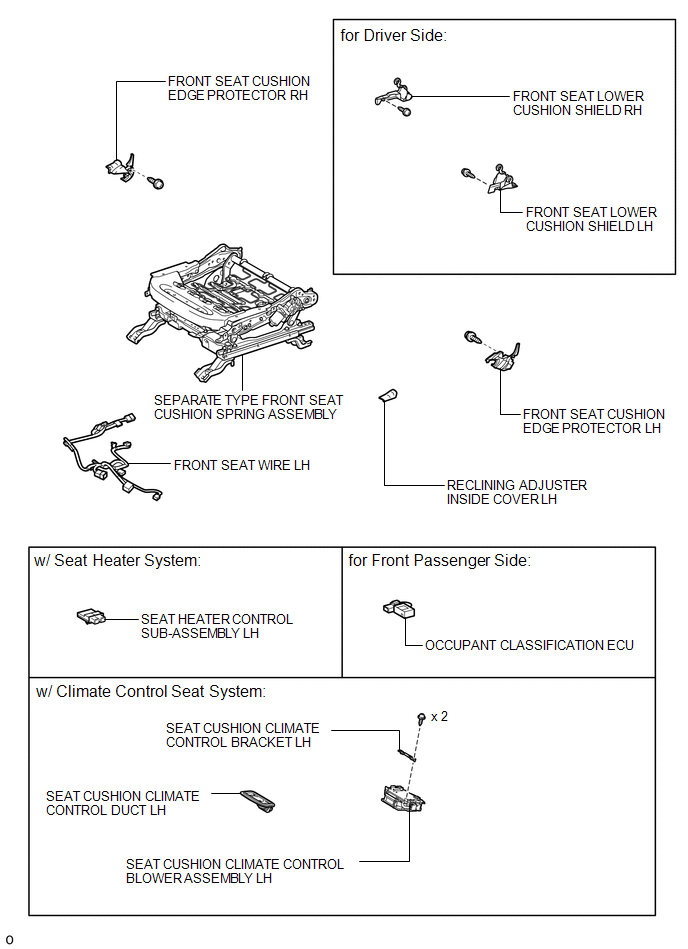

ILLUSTRATION


Front Seat Assembly(for Power Seat)
...

Inspection
INSPECTION PROCEDURE 1. INSPECT SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY (a) for Driver Side: (1) Check the operation of the separate type front seat cushion spring assembly ...
