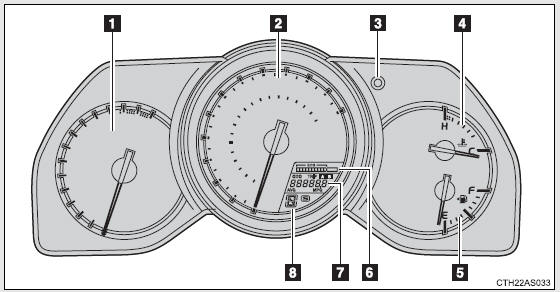

Non-Optitron type meters

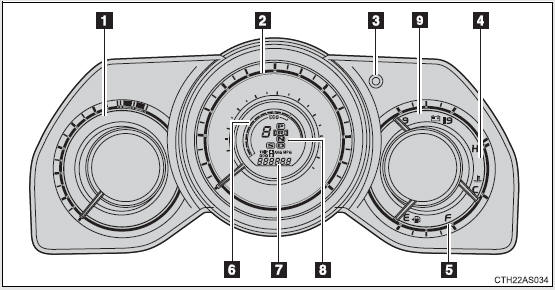

Optitron type meters

1. Tachometer Displays the engine speed in revolutions per minute 2. Speedometer Displays the vehicle speed 3. Display change button 4. Engine coolant temperature gauge Displays the engine coolant temperature 5. Fuel gauge Displays the quantity of fuel remaining in the tank 6. Eco Driving Indicator Zone Display 7. Odometer, trip meter and average fuel consumption display 8. Shift position and shift range indicators 9. Voltmeter Displays the charge state

Instrument cluster

...

Switching the display

Items displayed can be switched by pressing the display change button. Odometer Displays the total distance the vehicle has been driven. Trip meter Displays the distance the vehicle has been ...
