Toyota 4Runner: Outer Rear View Mirror Cover

Toyota 4Runner Service Manual / Vehicle Exterior / Mirror (ext) / Outer Rear View Mirror Cover

Components

COMPONENTS

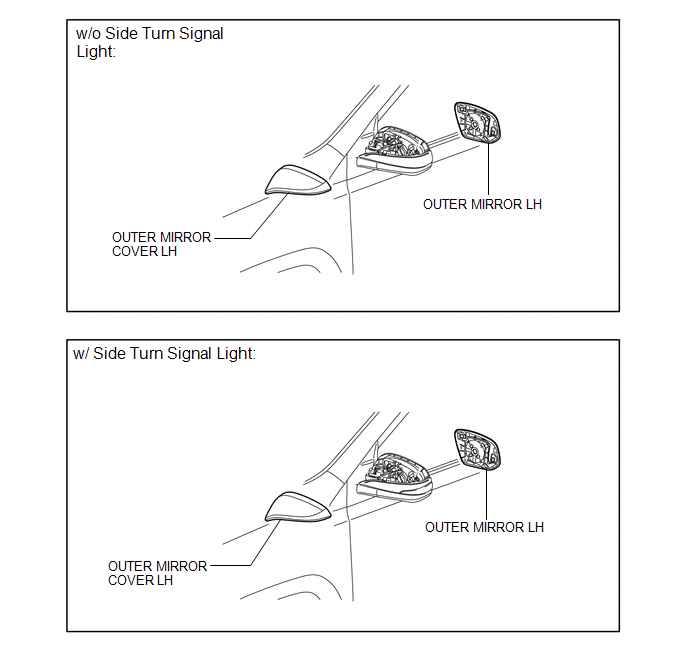

ILLUSTRATION


Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for both the RH and LH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. REMOVE OUTER MIRROR LH

(See page )


2. REMOVE OUTER MIRROR COVER LH

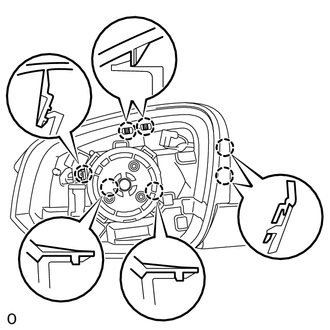

(a) Detach the 7 claws to remove the outer mirror cover LH.


Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for both the RH and LH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. INSTALL OUTER MIRROR COVER LH

(a) Attach the 7 claws to install the outer mirror cover LH.

2. INSTALL OUTER MIRROR LH

(See page )
