Toyota 4Runner: Parts Location

PARTS LOCATION

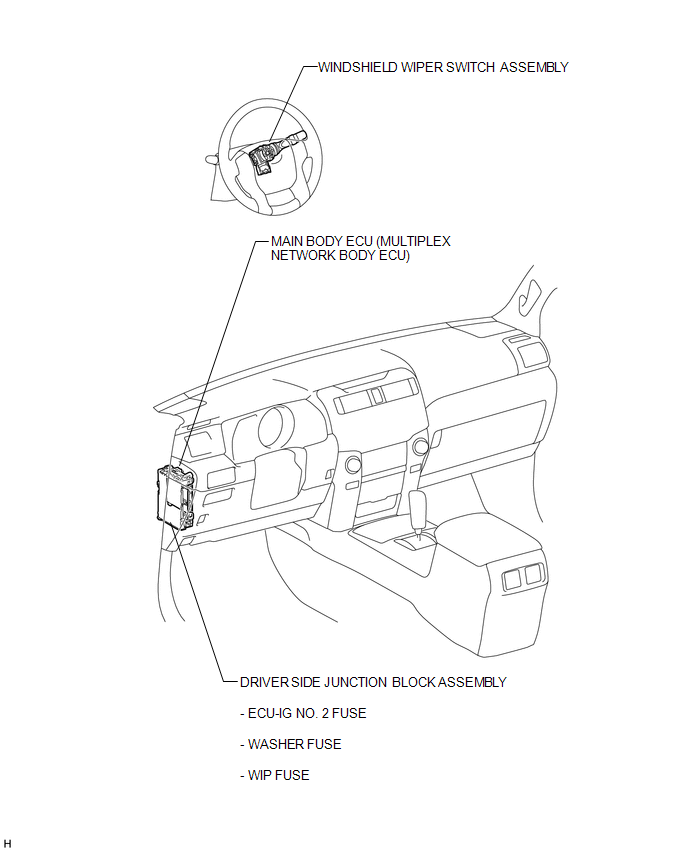

ILLUSTRATION

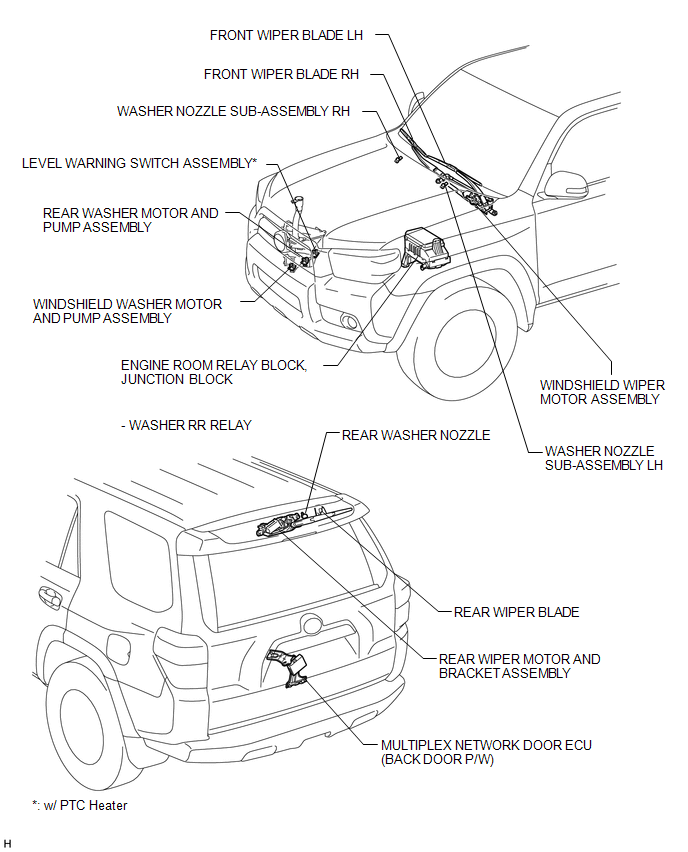

ILLUSTRATION


Precaution
PRECAUTION 1. IGNITION SWITCH EXPRESSION HINT: The type of ignition switch used on this model differs according to the specifications of the vehicle. The expressions listed in the table below are ...

System Diagram
SYSTEM DIAGRAM 1. WIPER AND WASHER SYSTEM Communication Table Sender Receiver Signal Communication Method Main body ECU (Multiplex netw ...

Other materials about Toyota 4Runner:

Terminals Of Ecu
TERMINALS OF ECU 1. CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) (a) Remove the main body ECU (multiplex network body ECU) (See page ). (b) Measure the voltage and resistance according to the value(s) in the ...

Driver Side Solar Sensor Short Circuit (B14A2)
DESCRIPTION The automatic light control sensor (solar sensor), which is installed on the upper side of the instrument panel, detects sunlight and controls the air conditioning in auto mode. The output current from the automatic light control sensor (sol ...
