Toyota 4Runner Service Manual / Vehicle Interior / Door Lock / Wireless Door Lock Control System(w/ Smart Key System) / Parts Location

PARTS LOCATION

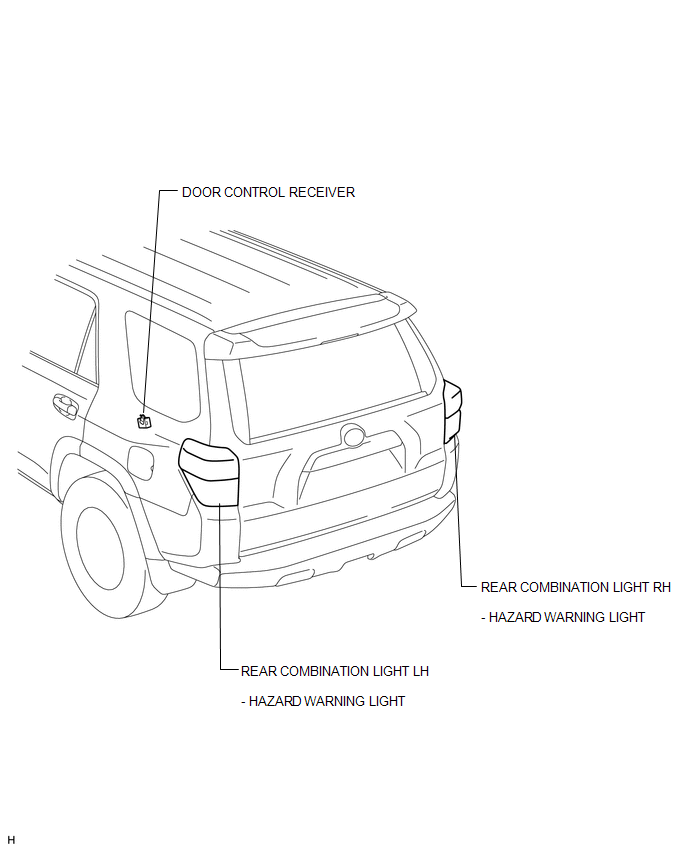

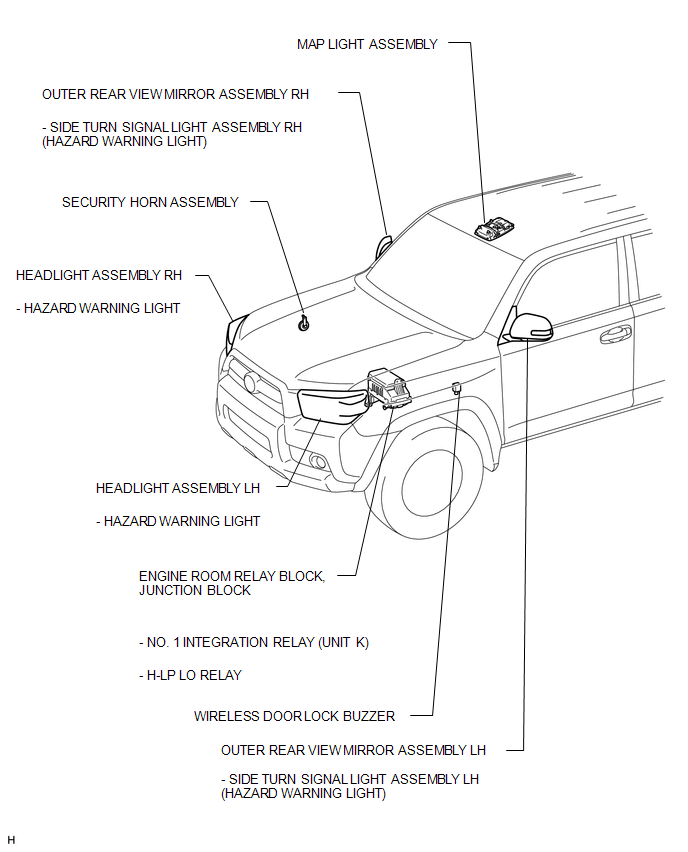

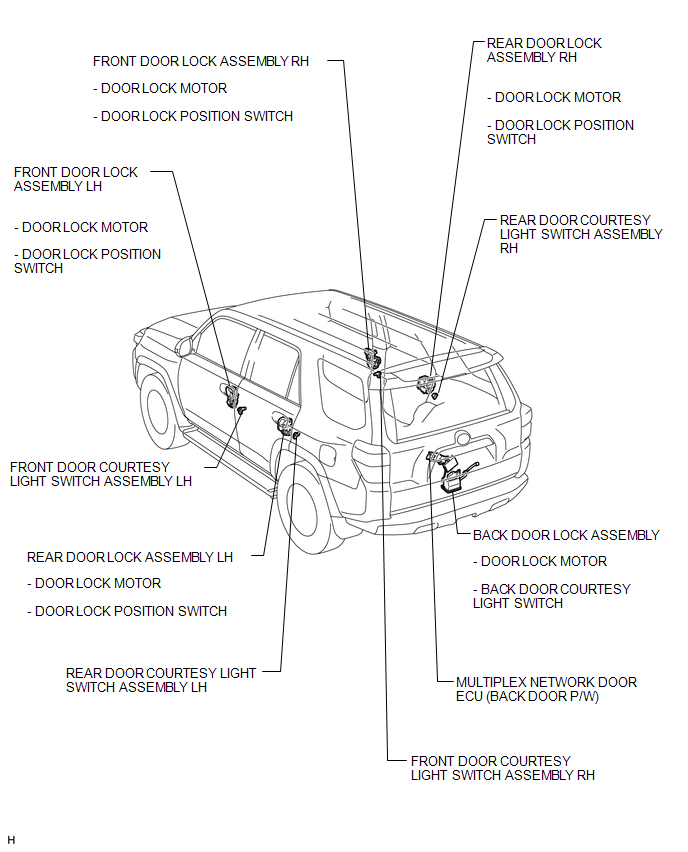

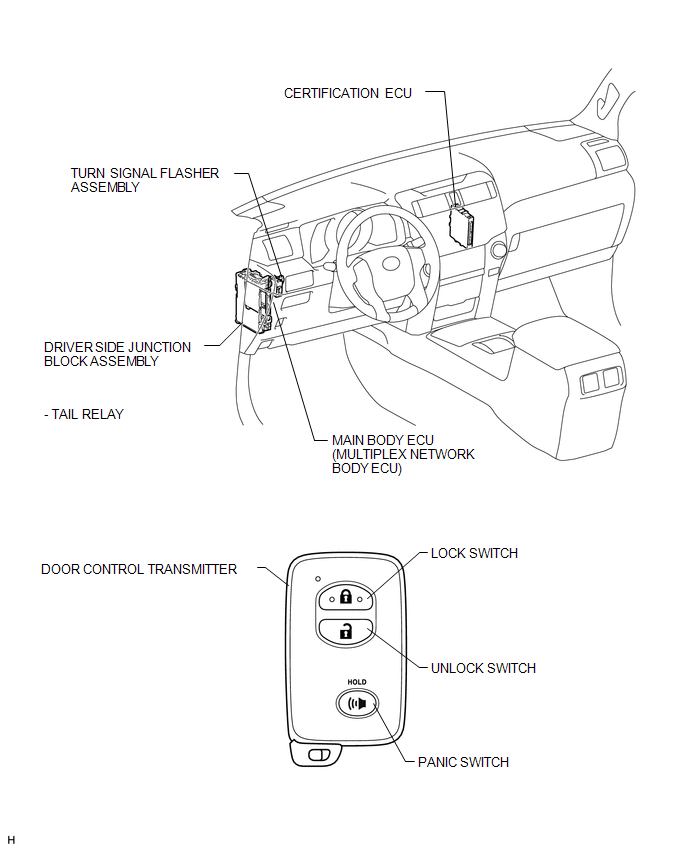

ILLUSTRATION

Wireless Door Lock Control System(w/ Smart Key System)

...
