Toyota 4Runner Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Smart Key System(for Entry Function) / Parts Location

PARTS LOCATION

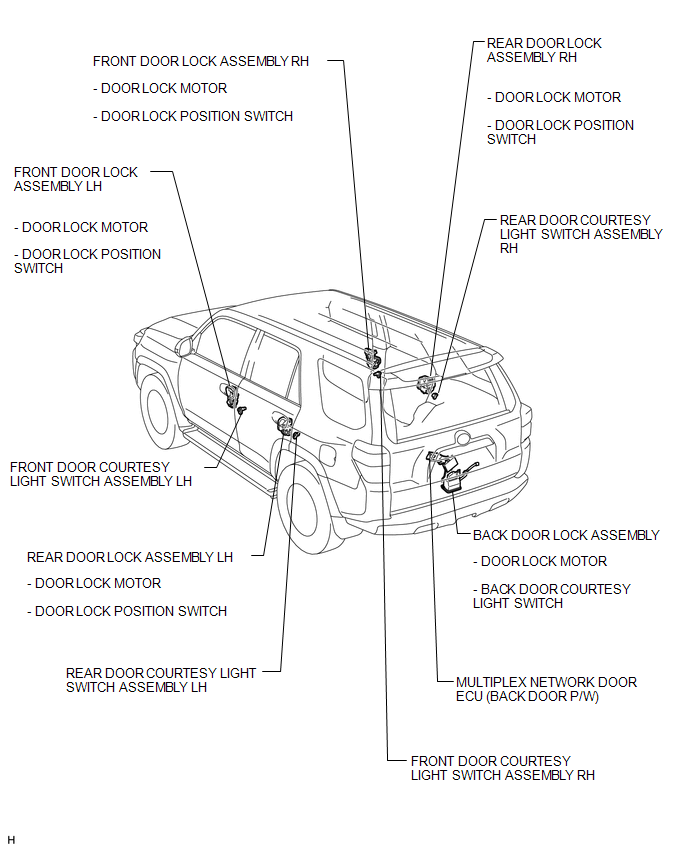

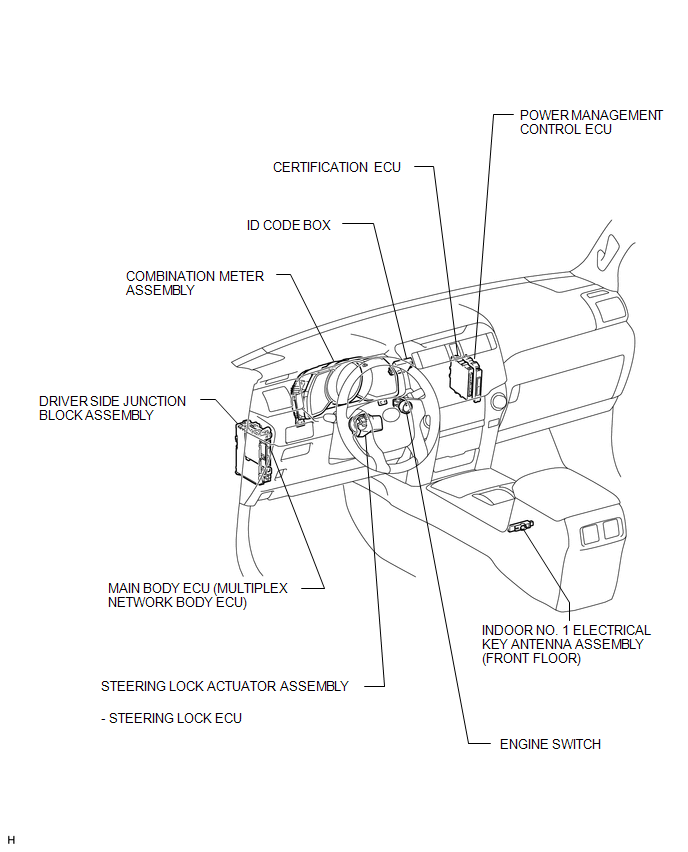

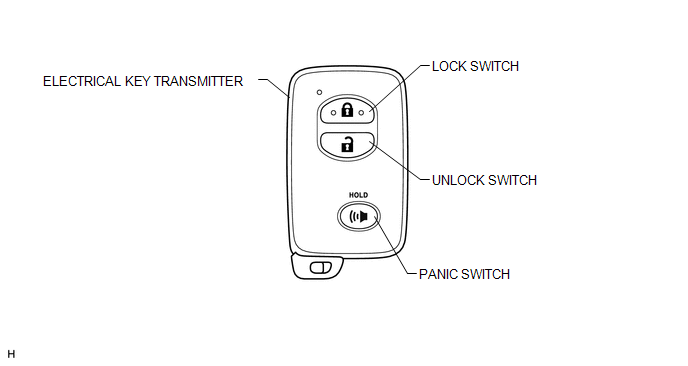

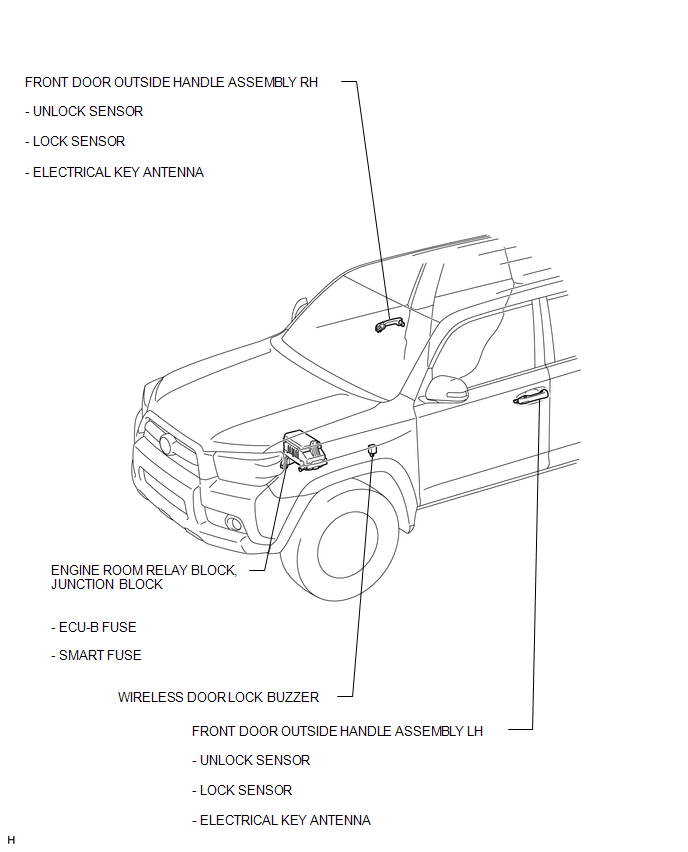

ILLUSTRATION

Precaution

PRECAUTION 1. PRECAUTIONS FOR USERS WITH PACEMAKERS (a) Weak electric waves are emitted from the key. If a pacemaker is being used, read the pacemaker instruction manual before using the smart key ...

System Description

SYSTEM DESCRIPTION CAUTION: If using a pacemaker, be sure to read the manual of the pacemaker before using the key, as the radio waves of the key may affect the pacemaker. 1. SMART KEY SYSTEM DES ...
