Toyota 4Runner: Power back window

The power back window can be opened and closed using the switch or key.

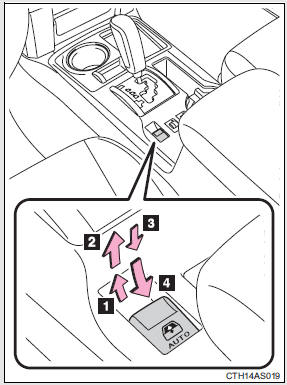

From inside the vehicle


1. Closing
2. One-touch closing*
3. Opening
4. One-touch opening* *: Pressing the switch in the opposite direction will stop window travel partway.

From outside the vehicle (vehicles without a smart key system)


1. Opening
2. Closing

Turn the key fully and hold it.

From outside the vehicle (vehicles with a smart key system)


1. Opening (push and hold) 2. Closing (push and hold)

This operation can only be performed when the electronic key is within the detection range.

The power back window can be operated from inside the vehicle when

Vehicles without a smart key system

The engine switch is in the “ON” position.

Vehicles with a smart key system

The “ENGINE START STOP” switch is in IGNITION ON mode.

• The power back window can be opened when the rear window wiper is working, but the wiper stops working until the window is closed again.

If the power back window is not fully closed, the rear window wiper, washer, and defogger will not work.

• If the back door is not fully closed, the power back window cannot be opened using the switch located in the cabin. (It is still possible to close the window.)


• If the back door is opened while the power back window is opening or closing, window operation will stop.

The power back window can be operated from outside the vehicle when (vehicles with a smart key system

)

• The “ENGINE START STOP” switch is off.

• The back door is closed.

Operating the power back window from inside the vehicle after turning the engine off

Vehicles without a smart key system

The power back window can be operated for approximately 45 seconds even after the engine switch is turned to the “ACC” or “LOCK” position. It cannot, however, be operated once either front door is opened.

Vehicles with a smart key system

The power back window can be operated for approximately 45 seconds even after the “ENGINE START STOP” switch is turned to ACCESSORY mode or turned off. It cannot, however, be operated once either front door is opened.

Jam protection function

If an object becomes caught between the window and the window frame, window travel is stopped and the window is opened slightly.

When the power back window does not close normally

If the jam protection function is operating abnormally and a window cannot be closed, perform the following operations using the power back window switch.

• After stopping the vehicle, the window can be closed by holding the power back window switch in the one-touch closing position while the engine switch is turned to the “ON” position (vehicles without a smart key system) or the “ENGINE START STOP” switch is turned to IGNITION ON mode (vehicles with a smart key system).


• If the window still cannot be closed even by carrying out the operation explained above, initialize the function by performing the following procedure.

Hold the power back window
switch in the one-touch closing position.

Continue holding the switch for a further 6 seconds after the window has closed.

Hold the power back window
switch in the one-touch opening position.

Continue holding the switch for a further 2 seconds after the window has opened completely.

Hold the power back window
switch in the one-touch closing position once again. Continue holding the switch for a further 2 seconds after the window has closed.

If you release the switch while the window is moving, start again from the beginning.

If the window continues to close but then re-open slightly even after performing the above procedure correctly, have the vehicle inspected by your Toyota dealer.

Customization that can be configured at Toyota dealer

Settings (e.g. linked operation) can be changed.

(Customizable features )

CAUTION

Caution while driving

Keep the back door and back window closed while driving. If the back door or the back window is left open, the back door may hit nearby objects while driving or luggage may be unexpectedly thrown out, causing an accident.

In addition, exhaust gases may enter the vehicle, causing death or a serious health hazard. Make sure to close the back door and back window before driving.

Closing the power back window

Observe the following precautions.

Failure to do so may result in death or serious injury.

• Check to make sure that all passengers do not have any part of their body in a position where it could be caught when a window is being operated.

• Do not allow children to operate the power back window.

Closing a power back window on someone can cause serious injury, and in some instances, even death.

Jam protection function

• Never use any part of your body to intentionally activate the jam protection function.

• The jam protection function may not work if something gets caught just before the window fully closes.
