Toyota 4Runner: Radiator Grille

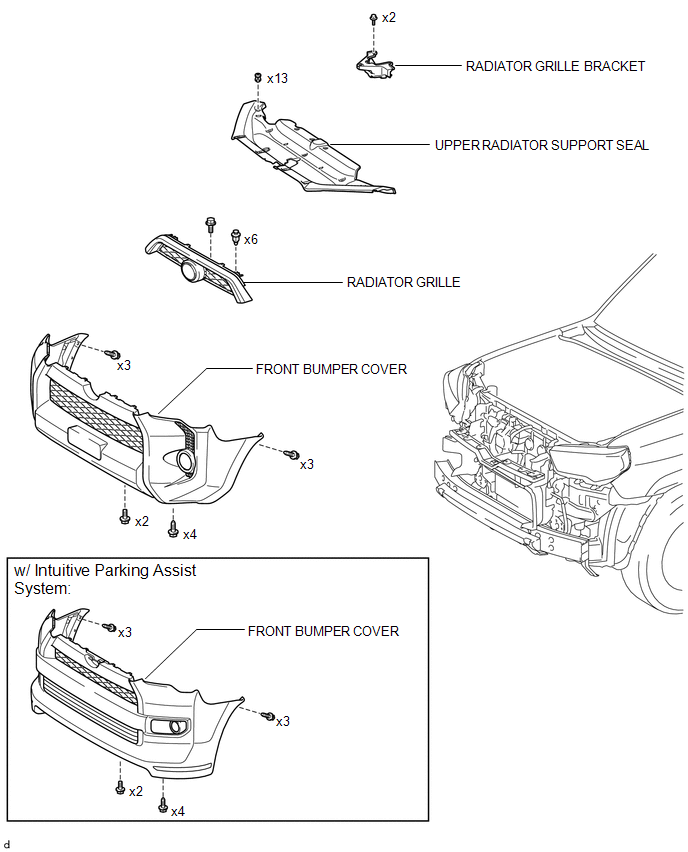

Components

COMPONENTS

ILLUSTRATION


Removal

REMOVAL

PROCEDURE

1. REMOVE UPPER RADIATOR SUPPORT SEAL


2. REMOVE FRONT BUMPER COVER


3. REMOVE FRONT BUMPER COVER (w/ Intuitive Parking Assist System)


4. REMOVE RADIATOR GRILLE

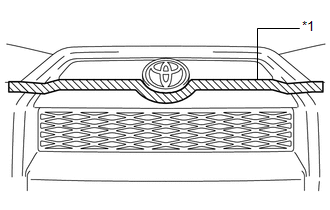

(a) Put protective tape around the radiator grille.

Text in Illustration

*1

Protective Tape

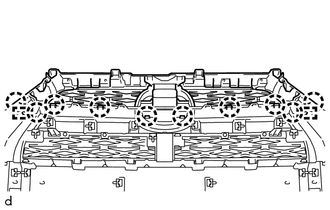

(b) Detach the 10 claws and 2 guides to remove the radiator grille.

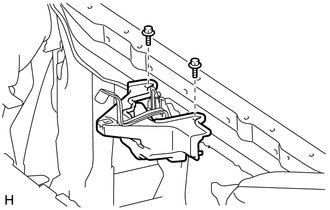

5. REMOVE RADIATOR GRILLE BRACKET

(a) Remove the 2 bolts and radiator grille bracket.


Installation

INSTALLATION

PROCEDURE

1. INSTALL RADIATOR GRILLE BRACKET

(a) Install the radiator grille bracket with the 2 bolts.

2. INSTALL RADIATOR GRILLE

(a) Attach the 10 claws and 2 guides to install the radiator grille.

3. INSTALL FRONT BUMPER COVER (w/ Intuitive Parking Assist System)


4. INSTALL FRONT BUMPER COVER


5. INSTALL UPPER RADIATOR SUPPORT SEAL
