Toyota 4Runner: Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH and LH sides.
  • The procedure listed below is for the LH side.
  • When removing the window frame moulding, black out tape and outside stripe, heat the vehicle body, window frame moulding, black out tape and outside stripe using a heat light.

Standard:

Item

Temperature

Vehicle Body

40 to 60°C (104 to 140°F)

Window Frame Moulding

20 to 30°C (68 to 86°F)

Black Out Tape

20 to 30°C (68 to 86°F)

Outside Stripe

20 to 30°C (68 to 86°F)

NOTICE:

Do not heat the vehicle body, window frame moulding, black out tape or outside stripe excessively.

PROCEDURE

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).


2. REMOVE REAR DOOR INSIDE HANDLE BEZEL LH


3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH


4. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH


5. REMOVE REAR DOOR SERVICE HOLE COVER LH


6. REMOVE REAR DOOR GLASS RUN LH


7. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH


8. REMOVE REAR DOOR QUARTER WINDOW GLASS LH


9. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH


10. REMOVE REAR DOOR BELT MOULDING LH


11. REMOVE REAR DOOR WEATHERSTRIP LH


12. REMOVE REAR DOOR FRONT WINDOW FRAME MOULDING LH


13. REMOVE NO. 2 BLACK OUT TAPE LH

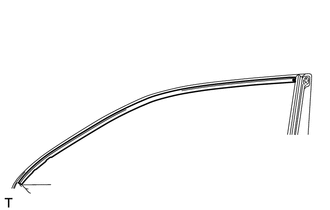

(a) Pull back an edge of the No. 2 black out tape and pull it parallel to the vehicle body to remove it.

14. REMOVE REAR DOOR LOWER OUTSIDE STRIPE LH

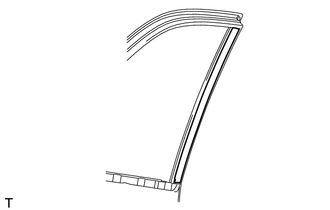

(a) Pull back an edge of the rear door lower outside stripe and pull it parallel to the vehicle body to remove it.

15. REMOVE REAR DOOR OUTSIDE STRIPE LH

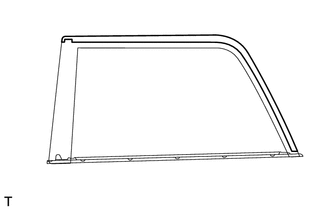

(a) Pull back an edge of the rear door outside stripe and pull it parallel to the vehicle body to remove it.
