Toyota 4Runner: Speaker Circuit

DESCRIPTION

  • If there is a short in a speaker circuit, the stereo component amplifier assembly detects it and stops output to the speakers.
  • Thus sound cannot be heard from the speakers even if there is no malfunction in the stereo component amplifier assembly, DCM (telematics transceiver)*1 or speakers.
  • If a short is detected in a speaker circuit, no sound can be heard from the speakers.
  • *1: w/ Manual (SOS) Switch

WIRING DIAGRAM

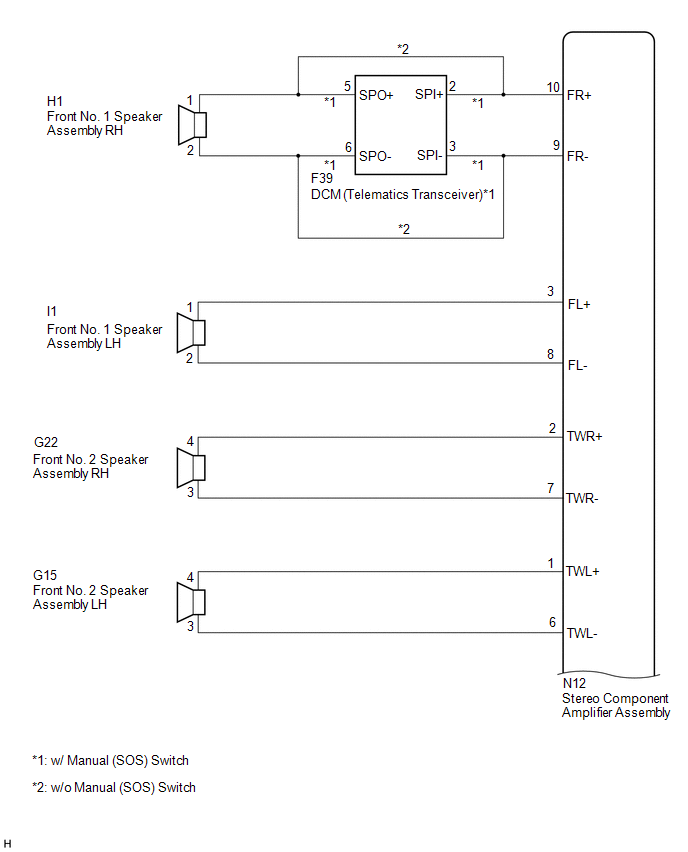

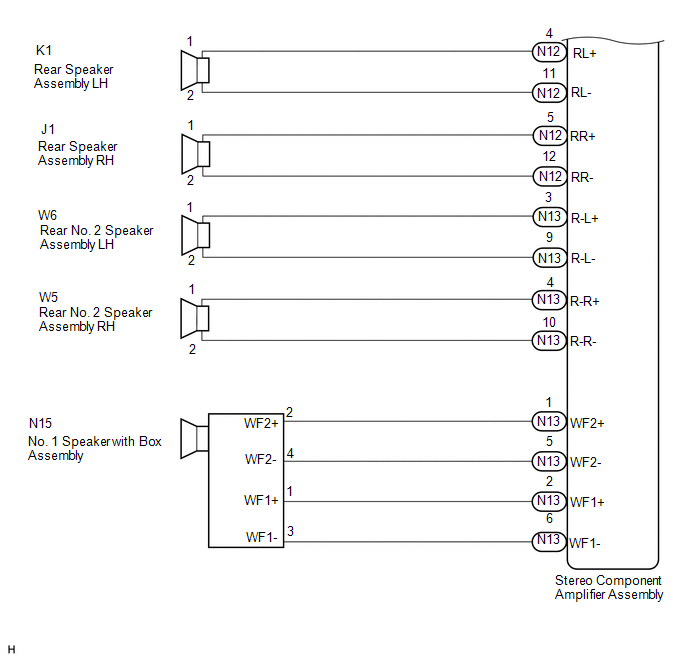

1. for 9 Speakers

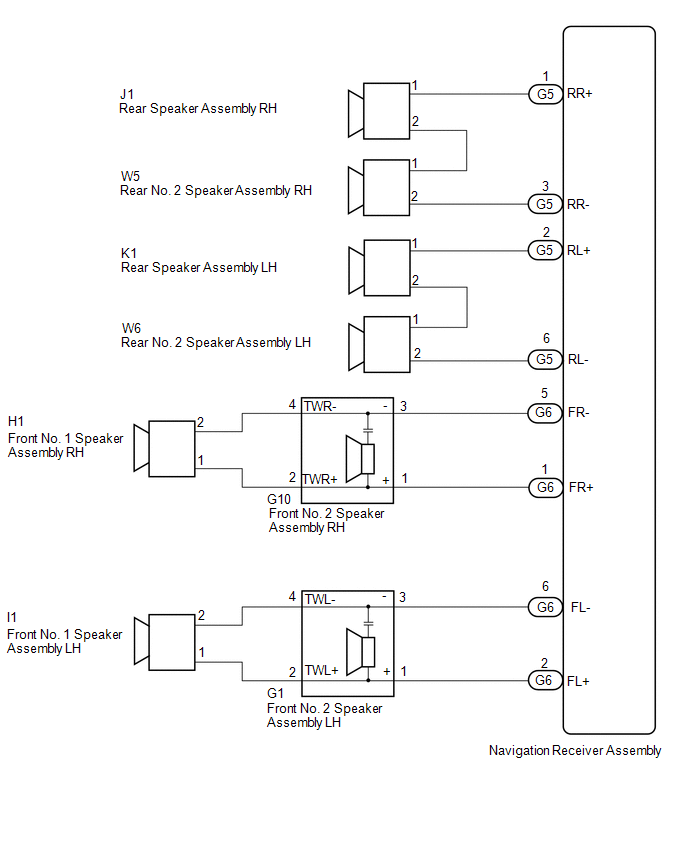

2. for 8 Speakers


PROCEDURE

1.

CONFIRM MODEL

(a) Choose the model to be inspected.

Model

Proceed to

for 9 Speakers

A

for 8 Speakers

B


B

GO TO STEP 9

A

2.

CHECK HARNESS AND CONNECTOR (for 9 Speakers)

(a) Disconnect the connectors from the N12 and N13 stereo component amplifier assembly, F39 DCM (telematics transceiver)*1 and speakers.

  • *1: w/ Manual (SOS) Switch

(b) w/ Manual (SOS) Switch

(1) Measure the resistance between the stereo component amplifier assembly and the DCM (telematics transceiver) to check for an open circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

N12-10 (FR+) - F39-2 (SPI+)

Always

Below 1 Ω

N12-9 (FR-) - F39-3 (SPI-)

Always

Below 1 Ω

(2) Measure the resistance between the front No. 1 speaker assembly RH and the DCM (telematics transceiver) to check for an open circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

H1-1 - F39-5 (SPO+)

Always

Below 1 Ω

H1-2 - F39-6 (SPO-)

Always

Below 1 Ω

(c) w/o Manual (SOS) Switch

(1) Measure the resistance between the front No. 1 speaker assembly RH and the stereo component amplifier assembly to check for an open circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

N12-10 (FR+) - H1-1

Always

Below 1 Ω

N12-9 (FR-) - H1-2

Always

Below 1 Ω

(d) Measure the resistance between the front No. 1 speaker assembly LH and the stereo component amplifier assembly to check for an open circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

N12-3 (FL+) - I1-1

Always

Below 1 Ω

N12-8 (FL-) - I1-2

Always

Below 1 Ω

(e) Measure the resistance between each of the front No. 2 speaker assemblies and the stereo component amplifier assembly to check for an open circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

N12-2 (TWR+) - G22-4

Always

Below 1 Ω

N12-7 (TWR-) - G22-3

Always

Below 1 Ω

N12-1 (TWL+) - G15-4

Always

Below 1 Ω

N12-6 (TWL-) - G15-3

Always

Below 1 Ω

(f) Measure the resistance between the rear speaker assemblies and the stereo component amplifier assembly to check for an open circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

N12-5 (RR+) - J1-1

Always

Below 1 Ω

N12-12 (RR-) - J1-2

Always

Below 1 Ω

N12-4 (RL+) - K1-1

Always

Below 1 Ω

N12-11 (RL-) - K1-2

Always

Below 1 Ω

(g) Measure the resistance between each of the rear No. 2 speaker assemblies and the stereo component amplifier assembly to check for an open circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

N13-4 (R-R+) - W5-1

Always

Below 1 Ω

N13-10 (R-R-) - W5-2

Always

Below 1 Ω

N13-3 (R-L+) - W6-1

Always

Below 1 Ω

N13-9 (R-L-) - W6-2

Always

Below 1 Ω

(h) Measure the resistance between the No. 1 speaker with box assembly and the stereo component amplifier assembly to check for an open circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

N13-1 (WF2+) - N15-2 (WF2+)

Always

Below 1 Ω

N13-5 (WF2-) - N15-4 (WF2-)

Always

Below 1 Ω

N13-2 (WF1+) - N15-1 (WF1+)

Always

Below 1 Ω

N13-6 (WF1-) - N15-3 (WF1-)

Always

Below 1 Ω

(i) Measure the resistance between the stereo component amplifier assembly and body ground to check for a short circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

N12-10 (FR+) - Body ground

Always

10 kΩ or higher

N12-9 (FR-) - Body ground

Always

10 kΩ or higher

N12-3 (FL+) - Body ground

Always

10 kΩ or higher

N12-8 (FL-) - Body ground

Always

10 kΩ or higher

N12-2 (TWR+) - Body ground

Always

10 kΩ or higher

N12-7 (TWR-) - Body ground

Always

10 kΩ or higher

N12-1 (TWL+) - Body ground

Always

10 kΩ or higher

N12-6 (TWL-) - Body ground

Always

10 kΩ or higher

N12-4 (RL+) - Body ground

Always

10 kΩ or higher

N12-11 (RL-) - Body ground

Always

10 kΩ or higher

N12-5 (RR+) - Body ground

Always

10 kΩ or higher

N12-12 (RR-) - Body ground

Always

10 kΩ or higher

N13-3 (R-L+) - Body ground

Always

10 kΩ or higher

N13-9 (R-L-) - Body ground

Always

10 kΩ or higher

N13-4 (R-R+) - Body ground

Always

10 kΩ or higher

N13-10 (R-R-) - Body ground

Always

10 kΩ or higher

N13-1 (WF2+) - Body ground

Always

10 kΩ or higher

N13-5 (WF2-) - Body ground

Always

10 kΩ or higher

N13-2 (WF1+) - Body ground

Always

10 kΩ or higher

N13-6 (WF1-) - Body ground

Always

10 kΩ or higher

(j) w/ Manual (SOS) Switch

Measure the resistance between the DCM (telematics transceiver) and body ground to check for a short circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

F39-5 (SPO+) - Body ground

Always

10 kΩ or higher

F39-6 (SPO-) - Body ground

Always

10 kΩ or higher


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3.

INSPECT FRONT NO. 1 SPEAKER ASSEMBLY (for 9 Speakers)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

H1-1 - H1-2

Always

1.4 to 2.2 Ω

I1-1 - I1-2

Always

1.4 to 2.2 Ω

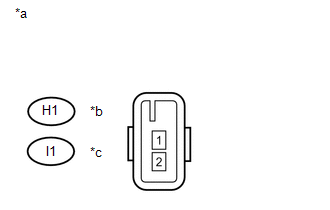

Text in Illustration

*a

Component without harness connected

(Front No. 1 Speaker Assembly)

*b

for RH

*c

for LH



NG

REPLACE FRONT NO. 1 SPEAKER ASSEMBLY

OK

4.

REPLACE FRONT NO. 2 SPEAKER ASSEMBLY (for 9 Speakers)

(a) Replace the front No. 2 speaker assembly with a known good one (See page ).


(b) Check that the malfunction disappears.

OK:

Malfunction disappears.

HINT:

  • Connect all the connectors to the front No. 2 speaker assemblies.
  • If there is a possibility that either the right or left front speaker is defective, inspect by interchanging the right one with the left one.
  • Perform the above inspection on both LH and RH sides.

OK

END

NG

5.

REPLACE REAR SPEAKER ASSEMBLY (for 9 Speakers)

(a) Replace the rear speaker assembly with a known good one (See page ).


(b) Check that the malfunction disappears.

OK:

Malfunction disappears.

HINT:

  • Connect all the connectors to the rear speaker assemblies.
  • If there is a possibility that either the right or left front speaker is defective, inspect by interchanging the right one with the left one.
  • Perform the above inspection on both LH and RH sides.

OK

END

NG

6.

REPLACE REAR NO. 2 SPEAKER ASSEMBLY (for 9 Speakers)

(a) Replace the rear No. 2 speaker assembly with a known good one (See page ).


(b) Check that the malfunction disappears.

OK:

Malfunction disappears.

HINT:

  • Connect all the connectors to the rear No. 2 speaker assemblies.
  • If there is a possibility that either the right or left front speaker is defective, inspect by interchanging the right one with the left one.
  • Perform the above inspection on both LH and RH sides.

OK

END

NG

7.

INSPECT NO. 1 SPEAKER WITH BOX ASSEMBLY (for 9 Speakers)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

N15-1 (WF1+) - N15-3 (WF1-)

Always

1.6 to 2.4 Ω

N15-2 (WF2+) - N15-4 (WF2-)

Always

1.6 to 2.4 Ω

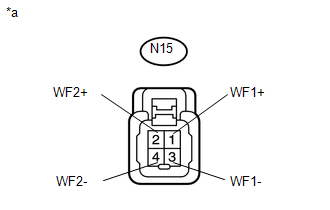

Text in Illustration

*a

Component without harness connected

(No. 1 Speaker with Box Assembly)


Condition

Proceed to

OK (w/ Manual (SOS) Switch)

A

OK (w/o Manual (SOS) Switch)

B

NG

C


B

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE


C

REPLACE NO. 1 SPEAKER WITH BOX ASSEMBLY

A

8.

INSPECT DCM (TELEMATICS TRANSCEIVER)

(a) Disconnect the F39 DCM (Telematics transceiver) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

F39-2 (SPI+) - F39-5 (SPO+)

Always

Below 1 Ω

F39-3 (SPI-) - F39-6 (SPO-)

Always

Below 1 Ω

F39-2 (SPI+) - F39-3 (SPI-)

Always

10 kΩ or higher

F39-5 (SPO+) - F39-6 (SPO-)

Always

10 kΩ or higher

F39-2 (SPI+) - Body ground

Always

10 kΩ or higher

F39-3 (SPI-) - Body ground

Always

10 kΩ or higher

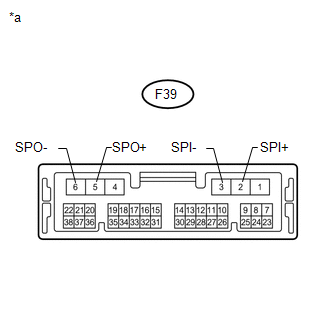

Text in Illustration

*a

Component without harness connected

(DCM (Telematics Transceiver))



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE


NG

REPLACE DCM (TELEMATICS TRANSCEIVER)

9.

CHECK HARNESS AND CONNECTOR (for 8 Speakers)

(a) Disconnect the connectors from the G6 and G5 navigation receiver assembly and speakers.

(b) Measure the resistance between the navigation receiver assembly and the front No. 2 speaker assembles to check for an open circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G6-1 (FR+) - G10-1 (+)

Always

Below 1 Ω

G6-5 (FR-) - G10-3 (-)

Always

Below 1 Ω

G6-2 (FL+) - G1-1 (+)

Always

Below 1 Ω

G6-6 (FL-) - G1-3 (-)

Always

Below 1 Ω

(c) Measure the resistance between the front No. 1 speaker assembles and the front No. 2 speaker assembles to check for an open circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

H1-1 - G10-2 (TWR+)

Always

Below 1 Ω

H1-2 - G10-4 (TWR-)

Always

Below 1 Ω

I1-1 - G1-2 (TWL+)

Always

Below 1 Ω

I1-2 - G1-4 (TWL-)

Always

Below 1 Ω

(d) Measure the resistance between the navigation receiver assembly, rear speaker assembly RH and rear No. 2 speaker assembly RH to check for an open circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G5-1 (RR+) - J1-1

Always

Below 1 Ω

G5-3 (RR-) - W5-2

Always

Below 1 Ω

W5-1 - J1-2

Always

Below 1 Ω

(e) Measure the resistance between the navigation receiver assembly, rear speaker assembly LH and rear No. 2 speaker assembly LH to check for an open circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G5-2 (RL+) - K1-1

Always

Below 1 Ω

G5-6 (RL-) - W6-2

Always

Below 1 Ω

W6-1 - K1-2

Always

Below 1 Ω

(f) Measure the resistance between the navigation receiver assembly, speaker assembly and body ground to check for a short circuit in the wire harness.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G6-1 (FR+) - Body ground

Always

10 kΩ or higher

G6-5 (FR-) - Body ground

Always

10 kΩ or higher

G6-2 (FL+) - Body ground

Always

10 kΩ or higher

G6-6 (FL-) - Body ground

Always

10 kΩ or higher

G5-1 (RR+) - Body ground

Always

10 kΩ or higher

G5-3 (RR-) - Body ground

Always

10 kΩ or higher

G5-2 (RL+) - Body ground

Always

10 kΩ or higher

G5-6 (RL-) - Body ground

Always

10 kΩ or higher

G10-2 (TWR+) - Body ground

Always

10 kΩ or higher

G10-4 (TWR-) - Body ground

Always

10 kΩ or higher

G1-2 (TWL+) - Body ground

Always

10 kΩ or higher

G1-4 (TWR-) - Body ground

Always

10 kΩ or higher

W6-1 - Body ground

Always

10 kΩ or higher

W5-1 - Body ground

Always

10 kΩ or higher


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

10.

INSPECT FRONT NO. 1 SPEAKER ASSEMBLY (for 8 Speakers)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

H1-1 - H1-2

Always

4 Ω

I1-1 - I1-2

Always

4 Ω

Text in Illustration

*a

Component without harness connected

(Front No. 1 Speaker Assembly)

*b

for RH

*c

for LH



NG

REPLACE FRONT NO. 1 SPEAKER ASSEMBLY

OK

11.

REPLACE FRONT NO. 2 SPEAKER ASSEMBLY (for 8 Speakers)

(a) Replace the front No. 2 speaker assembly with a known good one (See page ).


(b) Check that the malfunction disappears.

OK:

Malfunction disappears.

HINT:

  • Connect all the connectors to the front No. 2 speaker assemblies.
  • If there is a possibility that either the right or left front speaker is defective, inspect by interchanging the right one with the left one.
  • Perform the above inspection on both LH and RH sides.

OK

END

NG

12.

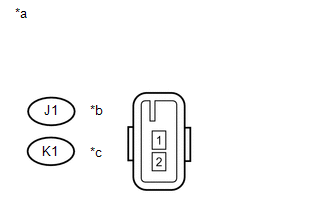

INSPECT REAR SPEAKER ASSEMBLY (for 8 Speakers)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

J1-1- J1-2

Always

4 Ω

K1-1 - K1-2

Always

4 Ω

Text in Illustration

*a

Component without harness connected

(Rear Speaker Assembly)

*b

for RH

*c

for LH



NG

REPLACE REAR SPEAKER ASSEMBLY

OK

13.

INSPECT REAR NO. 2 SPEAKER ASSEMBLY (for 8 Speakers)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

W5-1 - W5-2

Always

4 Ω

W6-1 - W6-2

Always

4 Ω

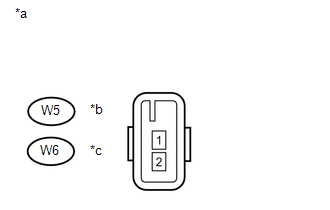

Text in Illustration

*a

Component without harness connected

(Rear No. 2 Speaker Assembly)

*b

for RH

*c

for LH



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE


NG

REPLACE REAR NO. 2 SPEAKER ASSEMBLY

Parking Brake Switch Circuit
DESCRIPTION This circuit is from the parking brake switch assembly to the navigation receiver assembly. WIRING DIAGRAM PROCEDURE 1. CHECK VEHICLE SIGNAL (OPERATION CHECK ...

Sound Signal Circuit between Navigation Receiver Assembly and Stereo Component Amplifier
DESCRIPTION The navigation receiver assembly sends a sound signal to the stereo component amplifier assembly via the sound signal circuit. The sound signal that has been sent is amplified by the s ...

Other materials about Toyota 4Runner:

Stop Light Control Relay Malfunction (C1380)
DESCRIPTION Upon receiving the hill-start assist control operating signal from the master cylinder solenoid (skid control ECU), the Stop light control relay (Stop light switch assembly) contact turns on and the stop lights come on. DTC No. ...

Precaution
PRECAUTION 1. IGNITION SWITCH EXPRESSION HINT: The type of ignition switch used on this model differs according to the specifications of the vehicle. The expressions listed in the table below are used in this section. Expression Ign ...

© 2016-2020 | www.to4runner.net

0.0762
