Toyota 4Runner: System Diagram

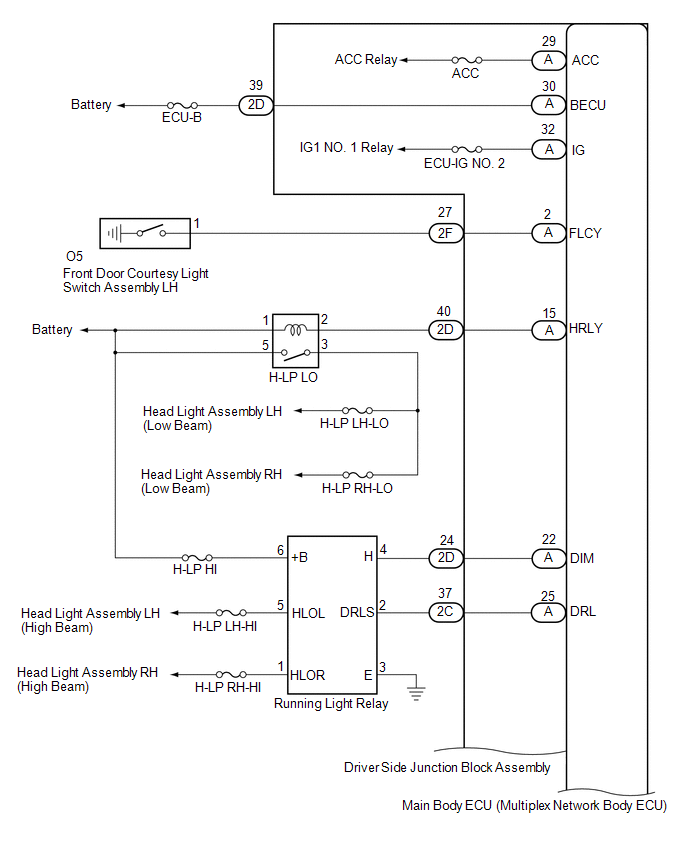

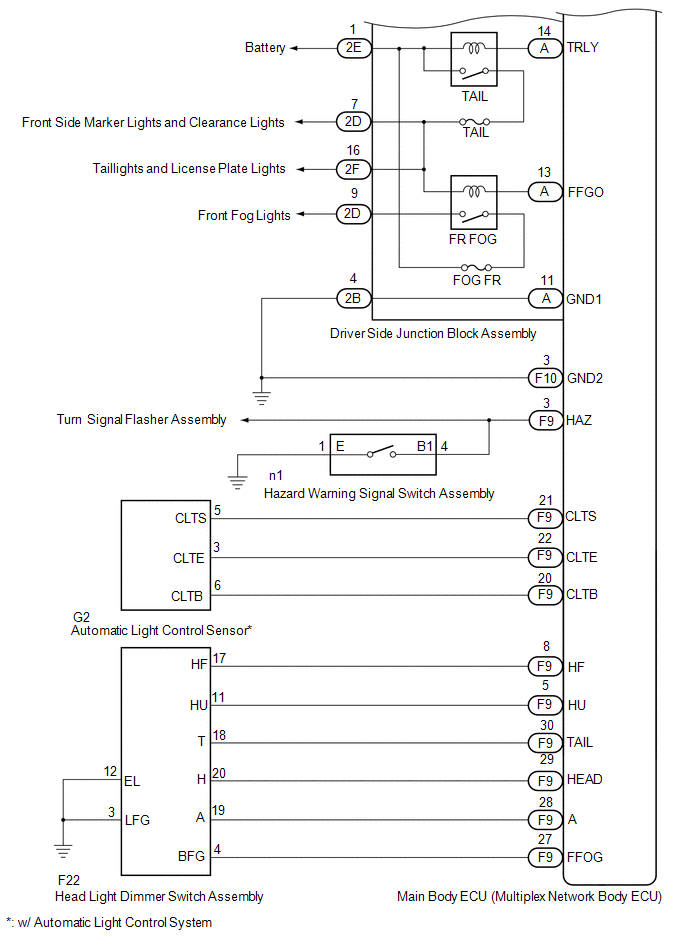

SYSTEM DIAGRAM



Parts Location
PARTS LOCATION ILLUSTRATION ILLUSTRATION ILLUSTRATION ...

How To Proceed With Troubleshooting
CAUTION / NOTICE / HINT HINT: Use these procedures to troubleshoot the lighting system. *: Use the Techstream. PROCEDURE 1. VEHICLE BROUGHT TO WORKSHOP ...

Other materials about Toyota 4Runner:

Removal
REMOVAL PROCEDURE 1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system. NOTICE: When disconnecting the cable, some systems ne ...

Driver Side Door Entry Unlock Function does not Operate
DESCRIPTION If the driver side door entry unlock function does not operate but the entry lock function operates, the communication line between the vehicle and electrical key transmitter is normal. The part at fault may be an unlock sensor circuit (front ...
