Toyota 4Runner: System Diagram

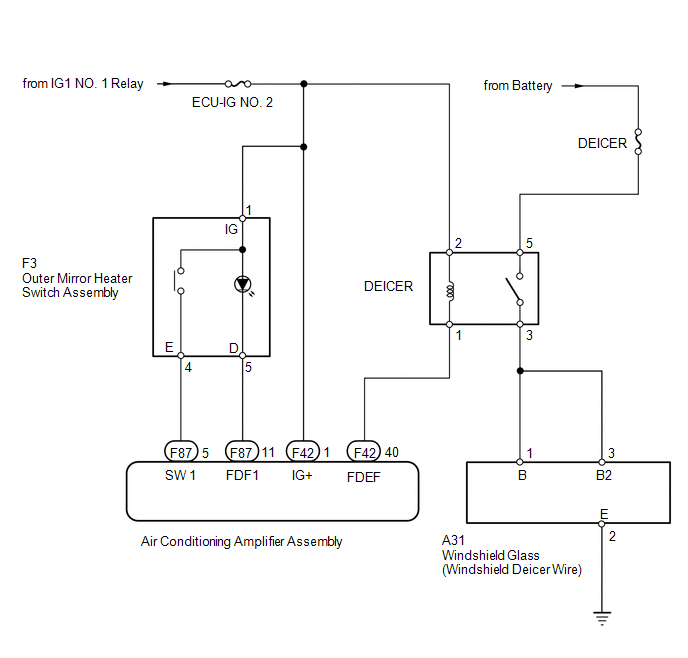

SYSTEM DIAGRAM


Precaution
PRECAUTION 1. IGNITION SWITCH EXPRESSION HINT: The type of ignition switch used on this model differs according to the specifications of the vehicle. The expressions listed in the table below are ...

Operation Check
OPERATION CHECK 1. CHECK WINDSHIELD DEICER SYSTEM OPERATION (a) When the ignition switch is turned to ON and the outer mirror heater switch (windshield deicer switch) is pressed, check that the wi ...

Other materials about Toyota 4Runner:

Rear Power Window LH does not Operate with Rear Power Window Switch LH
DESCRIPTION If the manual up/down function does not operate, there may be a malfunction in the rear power window regulator switch, rear power window regulator motor, harness or connector. WIRING DIAGRAM CAUTION / NOTICE / HINT NOTICE ...

Installation
INSTALLATION CAUTION / NOTICE / HINT HINT: A bolt without a torque specification is shown in the standard bolt chart (See page ). PROCEDURE 1. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY (a) Attach the 2 guides to install the instrument panel sub-assembly. ...
