Toyota 4Runner: Terminals Of Ecu

TERMINALS OF ECU

1. CHECK CERTIFICATION ECU

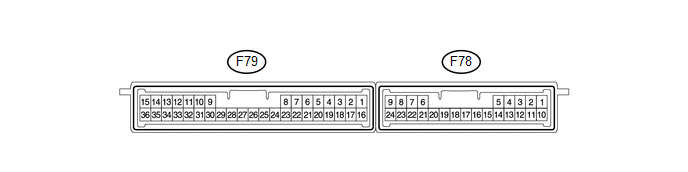

(a) Disconnect the F79 certification ECU connector.

(b) Measure the voltage and resistance according to the value(s) in the table below.

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

F79-1 (+B) - F79-15 (E)

V - W-B

+B power supply

Always

11 to 14 V

F79-15 (E) - Body ground

W-B - Body ground

Ground

Always

Below 1 Ω

F79-16 (IG) - F79-15 (E)

W - W-B

IG power supply

Engine switch off → on (IG)

Below 1 V →11 to 14 V

F79-17 (CUTB) - F79-15 (E)

L - W-B

+B power supply

Always

11 to 14 V

If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the F79 certification ECU connector.

(d) Measure the voltage according to the value(s) in the table below.

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

F79-3 (CLG1) - F79-15 (E)

R - W-B

Electrical key antenna (for driver side) sensor signal

Engine switch off, all doors closed, key not in cabin and transmitter lock switch not pressed → pressed

No pulse generation → Pulse generation

F79-4 (CG1B) - F79-15 (E)

W - W-B

Electrical key antenna (for driver side) sensor signal

Engine switch off, all doors closed, key not in cabin and transmitter lock switch not pressed → pressed

No pulse generation → Pulse generation

F79-5 (CLG2) - F79-15 (E)

R - W-B

Electrical key antenna (for front passenger side) sensor signal

Engine switch off, all doors closed, key not in cabin and transmitter lock switch not pressed → pressed

No pulse generation → Pulse generation

F79-6 (CG2B) - F79-15 (E)

W - W-B

Electrical key antenna (for front passenger side) sensor signal

Engine switch off, all doors closed, key not in cabin and transmitter lock switch not pressed → pressed

No pulse generation → Pulse generation

F79-7 (CLG5) - F79-15 (E)

R - W-B

Indoor No. 1 electrical key antenna (front floor) sensor signal

Engine switch off, all doors closed, key not in cabin and lock sensor off → on

No pulse generation → Pulse generation

F79-8 (CG5B) - F79-15 (E)

W - W-B

Indoor No. 1 electrical key antenna (front floor) sensor signal

Engine switch off, all doors closed, key not in cabin and lock sensor off → on

No pulse generation → Pulse generation

F79-18 (TSW1) - F79-15 (E)

V - W-B

Entry lock sensor (for driver side) detection signal

Engine switch off, all doors closed and lock sensor (for driver side) off → on

Pulse generation → Below 2 V

F79-19 (TSW2) - F79-15 (E)

V - W-B

Entry lock sensor (for front passenger side) detection signal

Engine switch off, all doors closed and lock sensor (for front passenger side) off → on

Pulse generation → Below 2 V

F79-20 (SEN1) - F79-15 (E)

W - W-B

Entry unlock sensor (for driver side) detection signal

Engine switch off, all doors locked, key not sufficiently close to vehicle and unlock sensor (for driver side) off → on

Pulse generation → Below 2 V

F79-21 (SEN2) - F79-15 (E)

W - W-B

Entry unlock sensor (for front passenger side) detection signal

Engine switch off, all doors locked, key not sufficiently close to vehicle and unlock sensor (for front passenger side) off → on

Pulse generation → Below 2 V

F79-22 (TSW5) - Body ground

V - Body ground

Back door opener switch signal

Unlock switch off → on

Pulse generation → Below 1 V

F79-23 (TSW6) - Body ground

W - Body ground

Back door control switch signal

Lock switch off → on

Pulse generation → Below 1 V

F79-24 (CLG6) - F79-15 (E)

W - W-B

Indoor No. 2 electrical key antenna (rear floor) sensor signal

Engine switch off, all doors closed, key not in cabin and lock sensor off → on

No pulse generation → Pulse generation

F79-25 (CG6B) - F79-15 (E)

Y - W-B

Indoor No. 2 electrical key antenna (rear floor) sensor signal

Engine switch off, all doors closed, key not in cabin and lock sensor off → on

No pulse generation → Pulse generation

F79-26 (CLG7) - F79-15 (E)

R - W-B

Indoor No. 2 electrical key antenna (inside luggage) sensor signal

Engine switch off, all doors closed, key not in cabin and lock sensor off → on

No pulse generation → Pulse generation

F79-27 (CG7B) - F79-15 (E)

G - W-B

Indoor No. 2 electrical key antenna (inside luggage) sensor signal

Engine switch off, all doors closed, key not in cabin and lock sensor off → on

No pulse generation → Pulse generation

F79-32 (POS1) - F79-15 (E)

P - W-B

Entry unlock sensor (for driver side) output signal

Engine switch off → on (IG)

9 to 14 V → Below 2 V

F79-33 (POS2) - F79-15 (E)

P - W-B

Entry unlock sensor (for front passenger side) output signal

Engine switch off → on (IG)

9 to 14 V → Below 2 V

F78-5 (RCO) - F79-15 (E)

L - W-B

Door control receiver power source

Engine switch off and transmitter switch not pressed → pressed

Below 1 V → 4.5 to 5.5 V

F78-15 (RDA) - F79-15 (E)

G - W-B

Door control receiver data input signal

Engine switch off

11 to 14 V pulse generation at regular intervals

F78-16 (RSSI) - F79-15 (E)

P - W-B

Door control receiver electric wave existence signal

All doors closed, all doors locked and transmitter switch not pressed → pressed

11 to 14 V → Below 2 V

F78-19 (CLG8) - F79-15 (E)

W - W-B

Electrical key antenna (outside luggage) sensor signal

Engine switch off, all doors closed and unlock switch off → on

No pulse generation → Pulse generation

F78-20 (CG8B) - F79-15 (E)

B - W-B

Electrical key antenna (outside luggage) sensor signal

Engine switch off, all doors closed and unlock switch off → on

No pulse generation → Pulse generation

If the result is not as specified, the certification ECU may have a malfunction.

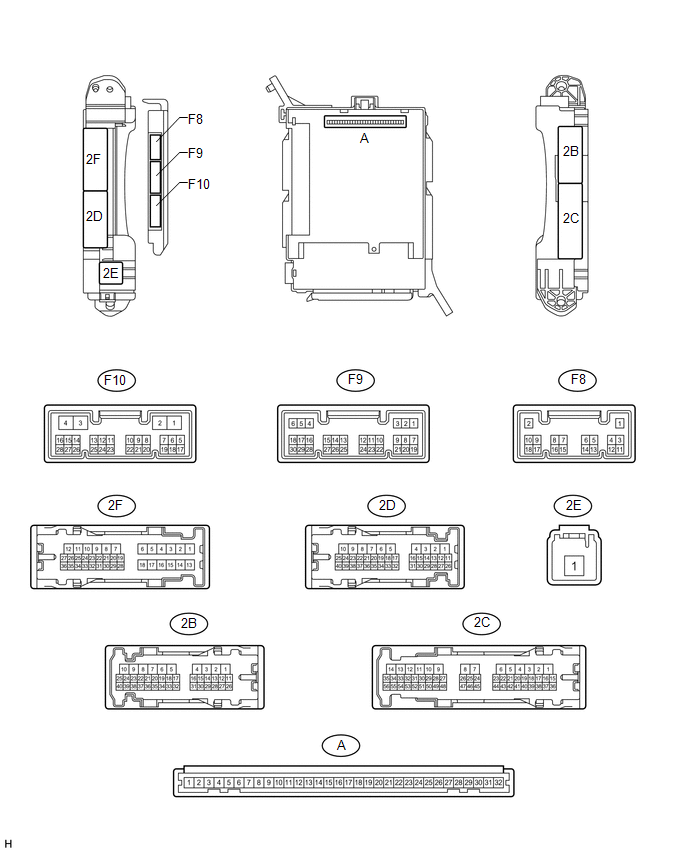

2. CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)


(a) Remove the main body ECU (multiplex network body ECU) (See page ).


(b) Measure the voltage and resistance according to the value(s) in the table below.

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

A-30 (BECU) - Body ground

-

Auxiliary battery power supply

Always

11 to 14 V

A-31 (ALTB) - Body ground

-

Auxiliary battery power supply

Always

11 to 14 V

A-32 (IG) - Body ground

-

Engine switch power supply

Engine switch on (IG)

11 to 14 V

A-32 (IG) - Body ground

-

Engine switch power supply

Engine switch off

Below 1 V

A-29 (ACC) - Body ground

-

ACC power supply

Engine switch on (ACC)

11 to 14 V

A-29 (ACC) - Body ground

-

ACC power supply

Engine switch off

Below 1 V

A-11 (GND1) - Body ground

-

Ground

Always

Below 1 Ω

F10-3 (GND2) - Body ground

W-B - Body ground

Ground

Always

Below 1 Ω

If the result is not as specified, there may be a malfunction in the wire harness.

(c) Install the main body ECU (See page ).


(d) Measure the voltage according to the value(s) in the table below.

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

2F-27 (FLCY) - Body ground

R - Body ground

Front door LH courtesy switch input

Front door LH open

Below 1 V

2F-27 (FLCY) - Body ground

R - Body ground

Front door LH courtesy switch input

Front door LH closed

11 to 14 V

2B-15 (FRCY) - Body ground

B - Body ground

Front door RH courtesy switch input

Front door RH open

Below 1 V

2B-15 (FRCY) - Body ground

B - Body ground

Front door RH courtesy switch input

Front door RH closed

11 to 14 V

F8-3 (LCTY) - Body ground

V - Body ground

Rear door LH courtesy light switch input

Rear door LH open

Below 1 V

F8-3 (LCTY) - Body ground

V - Body ground

Rear door LH courtesy light switch input

Rear door LH closed

11 to 14 V

F10-27 (RCTY) - Body ground

R - Body ground

Rear door RH courtesy light switch input

Rear door RH open

Below 1 V

F10-27 (RCTY) - Body ground

R - Body ground

Rear door RH courtesy light switch input

Rear door RH closed

11 to 14 V

F9-7 (LSFL) - Body ground

G - Body ground

Front door LH lock position switch input

Front door LH unlocked

Below 1 V

F9-7 (LSFL) - Body ground

G - Body ground

Front door LH lock position switch input

Engine switch off, all doors closed and front door LH locked

Pulse generation (see waveform 1 or 2)

F9-18 (LSFR) - Body ground

G - Body ground

Front door RH lock position switch input

Front door RH unlocked

Below 1 V

F9-18 (LSFR) - Body ground

G - Body ground

Front door RH lock position switch input

Engine switch off, all doors closed and front door RH locked

Pulse generation (see waveform 3 or 4)

2F-25 (LSWL) - Body ground

V - Body ground

Rear door LH lock position switch input

Rear door LH unlocked

Below 1 V

2F-25 (LSWL) - Body ground

V - Body ground

Rear door LH lock position switch input

Engine switch off, all doors closed and rear door LH locked

Pulse generation (see waveform 5 or 6)

F10-2 (LSWR) - Body ground

V - Body ground

Rear door RH lock position switch input

Rear door RH unlocked

Below 1 V

F10-2 (LSWR) - Body ground

V - Body ground

Rear door RH lock position switch input

Engine switch off, all doors closed and rear door RH locked

Pulse generation (see waveform 7 or 8)

If the result is not as specified, the main body ECU (multiplex network body ECU) or driver side junction block assembly may have a malfunction.

(e) Using an oscilloscope, check waveform 1.

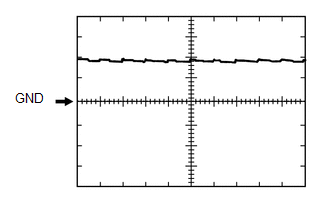

Waveform 1 (Reference)

Item

Content

Terminal No. (Symbol)

F9-7 (LSFL) - Body ground

Tool Setting

5 V/DIV., 20 ms/DIV.

Condition

Ignition switch off, all doors closed and front door LH locked

(f) Using an oscilloscope, check waveform 2.

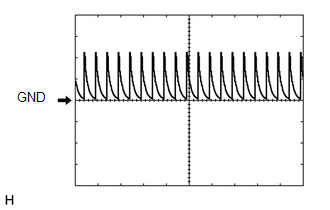

Waveform 2 (Reference)

Item

Content

Terminal No. (Symbol)

F9-7 (LSFL) - Body ground

Tool Setting

5 V/DIV., 20 ms/DIV.

Condition

Ignition switch off, all doors closed and front door LH locked

(g) Using an oscilloscope, check waveform 3.

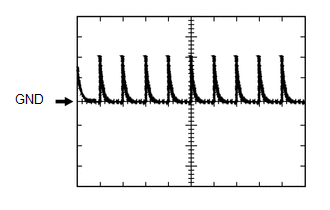

Waveform 3 (Reference)

Item

Content

Terminal No. (Symbol)

F9-18 (LSFR) - Body ground

Tool Setting

5 V/DIV., 20 ms/DIV.

Condition

Ignition switch off, all doors closed and front door RH locked

(h) Using an oscilloscope, check waveform 4.

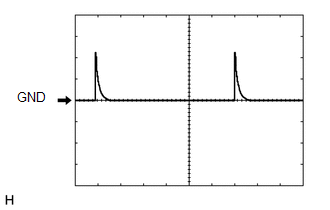

Waveform 4 (Reference)

Item

Content

Terminal No. (Symbol)

F9-18 (LSFR) - Body ground

Tool Setting

5 V/DIV., 20 ms/DIV.

Condition

Ignition switch off, all doors closed and front door RH locked

(i) Using an oscilloscope, check waveform 5.

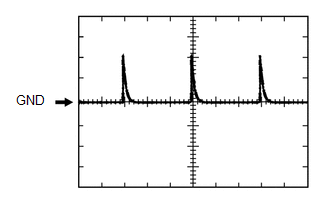

Waveform 5 (Reference)

Item

Content

Terminal No. (Symbol)

2F-25 (LSWL) - Body ground

Tool Setting

5 V/DIV., 20 ms/DIV.

Condition

Ignition switch off, all doors closed and rear door LH locked

(j) Using an oscilloscope, check waveform 6.

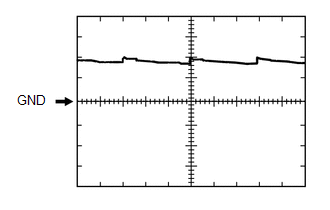

Waveform 6 (Reference)

Item

Content

Terminal No. (Symbol)

2F-25 (LSWL) - Body ground

Tool Setting

5 V/DIV., 20 ms/DIV.

Condition

Ignition switch off, all doors closed and rear door LH locked

(k) Using an oscilloscope, check waveform 7.

Waveform 7 (Reference)

Item

Content

Terminal No. (Symbol)

F10-2 (LSWR) - Body ground

Tool Setting

5 V/DIV., 20 ms/DIV.

Condition

Ignition switch off, all doors closed and rear door RH locked

(l) Using an oscilloscope, check waveform 8.

Waveform 8 (Reference)

Item

Content

Terminal No. (Symbol)

F10-2 (LSWR) - Body ground

Tool Setting

5 V/DIV., 20 ms/DIV.

Condition

Ignition switch off, all doors closed and rear door RH locked

3. CHECK MULTIPLEX NETWORK DOOR ECU (BACK DOOR P/W)

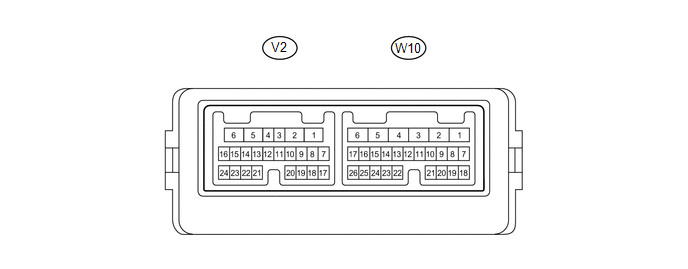

(a) Disconnect the V2 multiplex network door ECU (back door P/W) connector.

(b) Measure the voltage and resistance according to the value(s) in the table below.

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

V2-1 (BDR) - Body ground

B - Body ground

Battery power supply

Always

11 to 14 V

V2-7 (BECU) - Body ground

L - Body ground

Battery power supply

Always

11 to 14 V

V2-8 (SIG) - Body ground

G - Body ground

Engine switch power supply

Engine switch on (IG)

11 to 14 V

V2-8 (SIG) - Body ground

G - Body ground

Engine switch power supply

Engine switch off

Below 1 V

V2-6 (GND) - Body ground

W-B - Body ground

Ground

Always

Below 1 Ω

If the result is not as specified, there may be a malfunction in the wire harness.

(c) Reconnect the V2 multiplex network door ECU (back door P/W) connector.

(d) Measure the voltage according to the value(s) in the table below.

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

W10-10 (BDCY) - W10-18 (CTYE)

P - G

Back door courtesy switch input

Back door closed

Pulse generation (see waveform 1 or 2)

W10-10 (BDCY) - W10-18 (CTYE)

P - G

Back door courtesy switch input

Back door open

Below 1 V

W10-17 (SUP) - W10-21 (E3)

W - B

Back door control switch input

Lock switch off

Pulse generation (see waveform 3 or 4)

W10-17 (SUP) - W10-21 (E3)

W - B

Back door control switch input

Lock switch on

Below 1 V

W10-9 (SDN) - W10-21 (E3)

SB - B

Back door control switch input

Unlock switch off

Pulse generation (see waveform 5 or 6)

W10-9 (SDN) - W10-21 (E3)

SB - B

Back door control switch input

Unlock switch on

Below 1 V

If the result is not as specified, the multiplex network door ECU (back door P/W) may have a malfunction.

(e) Using an oscilloscope, check waveform 1.

Waveform 1 (Reference)

Item

Content

Terminal No. (Symbol)

W10-10 (BDCY) - W10-18 (CTYE)

Tool Setting

5 V/DIV., 10 ms/DIV.

Condition

Back door closed

(f) Using an oscilloscope, check waveform 2.

Waveform 2 (Reference)

Item

Content

Terminal No. (Symbol)

W10-10 (BDCY) - W10-18 (CTYE)

Tool Setting

5 V/DIV., 10 ms/DIV.

Condition

Back door closed

(g) Using an oscilloscope, check waveform 3.

Waveform 3 (Reference)

Item

Content

Terminal No. (Symbol)

W10-17 (SUP) - W10-21 (E3)

Tool Setting

5 V/DIV., 10 ms/DIV.

Condition

Lock switch off

(h) Using an oscilloscope, check waveform 4.

Waveform 4 (Reference)

Item

Content

Terminal No. (Symbol)

W10-17 (SUP) - W10-21 (E3)

Tool Setting

5 V/DIV., 10 ms/DIV.

Condition

Lock switch off

(i) Using an oscilloscope, check waveform 5.

Waveform 5 (Reference)

Item

Content

Terminal No. (Symbol)

W10-9 (SDN) - W10-21 (E3)

Tool Setting

5 V/DIV., 10 ms/DIV.

Condition

Unlock switch off

(j) Using an oscilloscope, check waveform 6.

Waveform 6 (Reference)

Item

Content

Terminal No. (Symbol)

W10-9 (SDN) - W10-21 (E3)

Tool Setting

5 V/DIV., 10 ms/DIV.

Condition

Unlock switch off

Problem Symptoms Table
PROBLEM SYMPTOMS TABLE HINT: Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are lis ...

Data List / Active Test
DATA LIST / ACTIVE TEST 1. READ DATA LIST HINT: Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing ...

Other materials about Toyota 4Runner:

Open or Short in Front Speed Sensor RH Circuit (C1405,C1406)
DESCRIPTION Refer to DTCs C1401 and C1402 (See page ). DTC Code DTC Detection Condition Trouble Area C1405 C1406 Either condition is met: An open in the speed sensor signal circui ...

Installation
INSTALLATION PROCEDURE 1. INSTALL SEAT HEATER SWITCH (a) Attach the 4 claws to install the 2 switches. (b) Connect the 2 connectors. 2. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY 3. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for VF2A) 4. INSTALL SHIFT L ...

© 2016-2020 | www.to4runner.net

0.0068
