Toyota 4Runner: Vehicle Speed Signal Circuit between Radio Receiver and Combination Meter

Toyota 4Runner Service Manual / Audio / Visual / Telematics / Audio / Video / Audio And Visual System / Vehicle Speed Signal Circuit between Radio Receiver and Combination Meter

DESCRIPTION

for Automatic Sound Levelizer (ASL):
  • This circuit is necessary for the Automatic Sound Levelizer (ASL) built into the radio and display receiver assembly.

    The Automatic Sound Levelizer (ASL) function automatically adjusts the audio system volume level in order to compensate for increased vehicle noise (vehicle noise tends to increase as vehicle speed increases). The ASL adjusts the volume level based upon vehicle speed signals that it receives from the combination meter assembly.

for "Bluetooth":
  • Vehicle speed signals are received from the combination meter assembly and used to cancel "Bluetooth" function operation.

    The radio and display receiver assembly recognizes that the vehicle is being driven and makes it impossible to connect or register a "Bluetooth" device while driving.

HINT:

  • A voltage of 12 V or 5 V is output from each ECU and then input to the combination meter assembly. The signal is changed to a pulse signal at the transistor in the combination meter assembly. Each ECU controls the respective system based on the pulse signal.
  • If a short occurs in any of the ECUs or in the wire harness connected to an ECU, all systems in the following diagram will not operate normally.

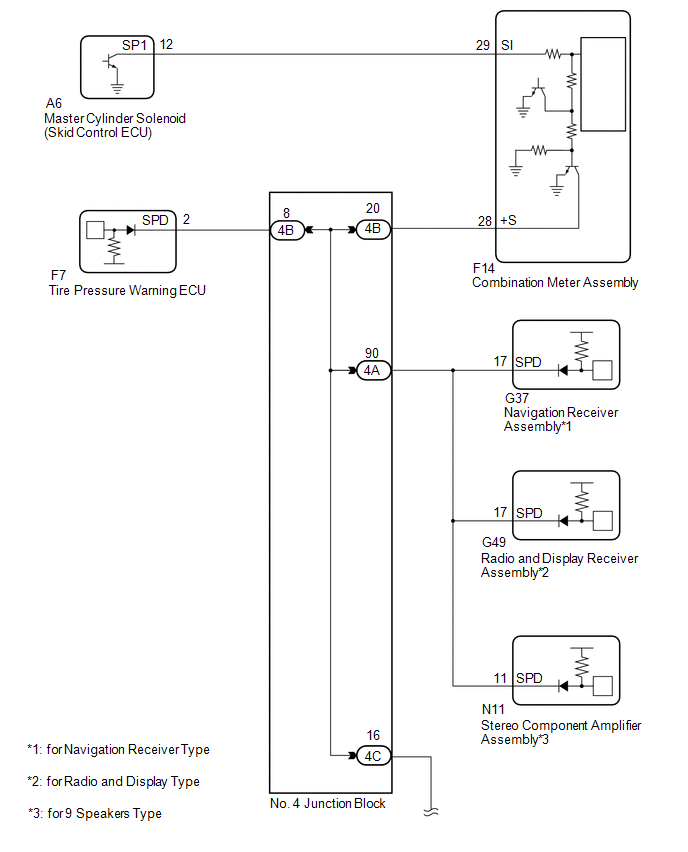

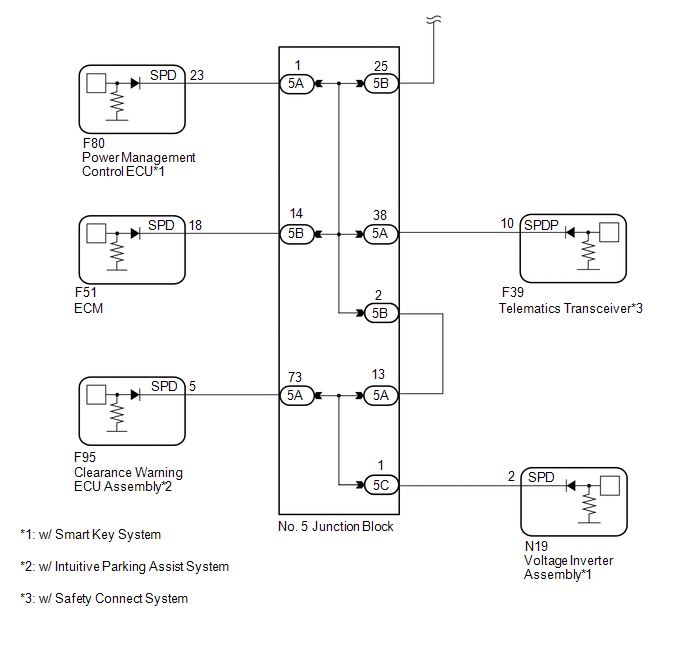

WIRING DIAGRAM



PROCEDURE

1.

CHECK VEHICLE SIGNAL (OPERATION CHECK)

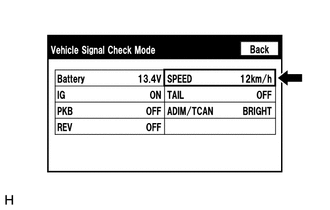

(a) Enter the "Vehicle Signal Check Mode" screen. Refer to Check Vehicle Signal Check Mode in Operation Check (See page ).



(b) While driving the vehicle, compare the value displayed for "SPEED" to the reading on the speedometer. Check if these readings are almost equal.

HINT:

The combination meter assembly receives the vehicle speed signal from the skid control ECU via CAN communication. Therefore, perform the following inspection referring to values on the Data List of the skid control ECU because it is the source of the vehicle speed signal.

OK:

Vehicle speed displayed on the "Vehicle Signal Check Mode" screen is almost the same as the actual vehicle speed measured using the Techstream (See page ).



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

2.

INSPECT COMBINATION METER ASSEMBLY (OUTPUT WAVEFORM)

(a) Check the output waveform.

(1) Remove the combination meter assembly with the connector still connected.

(2) Connect an oscilloscope to terminal F14-28 (+S) and body ground.

(3) Turn the ignition switch to ON.

(4) Turn a wheel slowly.

(5) Check the signal waveform according to the condition(s) in the table below.

Item

Condition

Measurement terminal

F14-28 (+S) - Body ground

Tool setting

5 V/DIV., 20 ms./DIV.

Vehicle condition

Wheel being rotated

OK:

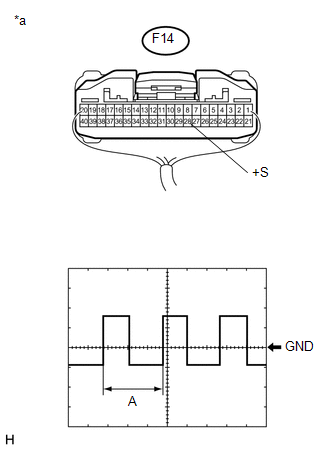

The waveform is similar to that shown in the illustration.

HINT:

When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

Text in Illustration

*a

Component with harness connected

(Combination Meter Assembly)



NG

GO TO METER / GAUGE SYSTEM

OK

3.

CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - COMBINATION METER ASSEMBLY)

(a) Disconnect the G49 radio and display receiver assembly connector.

(b) Disconnect the F14 combination meter assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G49-17 (SPD) - F14-28 (+S)

Always

Below 1 Ω


OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

NG

4.

CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - NO. 4 JUNCTION BLOCK)

(a) Disconnect the G49 radio and display receiver assembly connector.

(b) Disconnect the 4A No. 4 junction block connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G49-17 (SPD) - 4A-90

Always

Below 1 Ω


OK

REPAIR OR REPLACE HARNESS OR CONNECTOR (NO. 4 JUNCTION BLOCK)


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - NO. 4 JUNCTION BLOCK)
