DESCRIPTION

The front airbag sensor RH consists of the diagnostic circuit and frontal deceleration sensor, etc.

If the center airbag sensor receives signals from the frontal deceleration sensor, it determines whether the SRS should be activated.

DTC B1610/13 is stored when a malfunction is detected in the front airbag sensor RH circuit.

DTC Code	DTC Detection Condition	Trouble Area
B1610/13	Either condition is met: A front airbag sensor RH malfunction. A center airbag sensor malfunction.	Front airbag sensor RH Center airbag sensor assembly

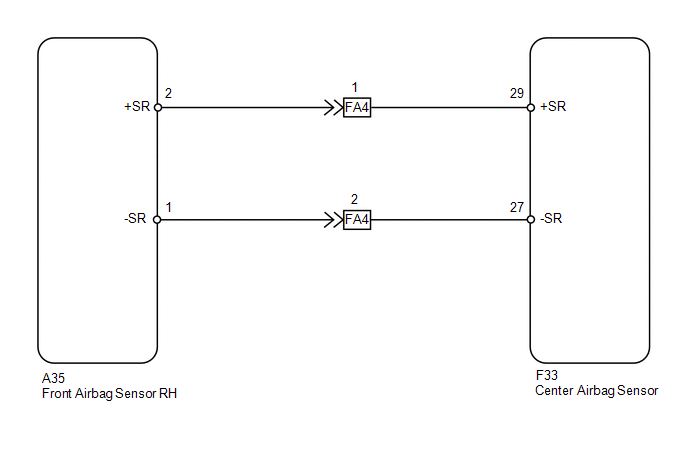

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

When disconnecting the cable from the negative (-) battery terminal while performing repairs, some systems need to be initialized after the cable is reconnected (See page ).

PROCEDURE

1.	CHECK FRONT AIRBAG SENSOR RH

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(d) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(e) Turn the ignition switch to ON, and wait for at least 60 seconds.

(f) Clear the DTCs stored in memory (See page
).

(g) Turn the ignition switch off.

(h) Turn the ignition switch to ON, and wait for at least 60 seconds.

(i) Check for DTCs (See page ).

Result

Result	Proceed to
DTC B1610 is output	A
DTC B1615 is output	B
DTC B1610 and B1615 are not output	C

HINT:

Codes other than DTC B1610 and B1615 may be output at this time, but they are not related to this check.

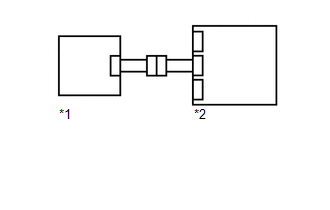

Text in Illustration

*1	Front Airbag Sensor LH
*2	Center Airbag Sensor

USE SIMULATION METHOD TO CHECK

REPLACE CENTER AIRBAG SENSOR ASSEMBLY

REPLACE FRONT AIRBAG SENSOR RH
