Replacement
REPLACEMENT
CAUTION / NOTICE / HINT
NOTICE:
Take extra care when handling these precision electronic components.
PROCEDURE
1. REMOVE TRANSMITTER HOUSING COVER

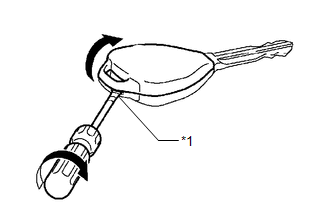

(a) Twist a screwdriver in the direction of the arrow in the illustration and remove the transmitter housing cover. NOTICE: Do not forcibly pry open the cover. HINT: Tape the screwdriver tip before use. Text in Illustration
|
|
2. REMOVE DOOR CONTROL TRANSMITTER MODULE

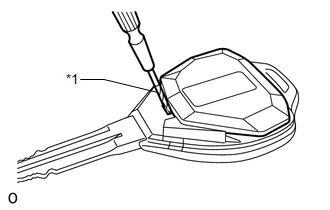

(a) Using a precision screwdriver, remove the door control transmitter module. HINT: Tape the screwdriver tip before use. Text in Illustration
|
|
3. REMOVE TRANSMITTER BATTERY

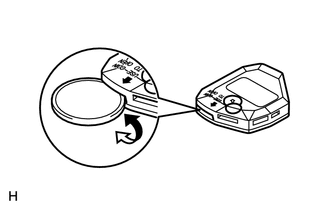

(a) Twist a coin in the direction of the arrow in the illustration and remove the transmitter battery cover. |
|

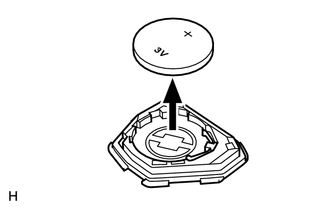

(b) Remove the battery (lithium battery: CR2016). NOTICE:
|
|
4. INSTALL TRANSMITTER BATTERY
(a) Install a new battery (lithium battery: CR2016) with the positive (+) side facing upward as shown in the illustration. NOTICE:
|
|
(b) Install the cover.
5. INSTALL DOOR CONTROL TRANSMITTER MODULE
(a) Install the door control transmitter module.
6. INSTALL TRANSMITTER HOUSING COVER
(a) Install the transmitter housing cover to the transmitter housing case.
(b) Check that the transmitter LED illuminates 3 times when a switch is pressed 3 times.
