DESCRIPTION

During normal mode, pressing the VSC OFF switch for a short amount of time changes vehicle to AUTO LSD mode.

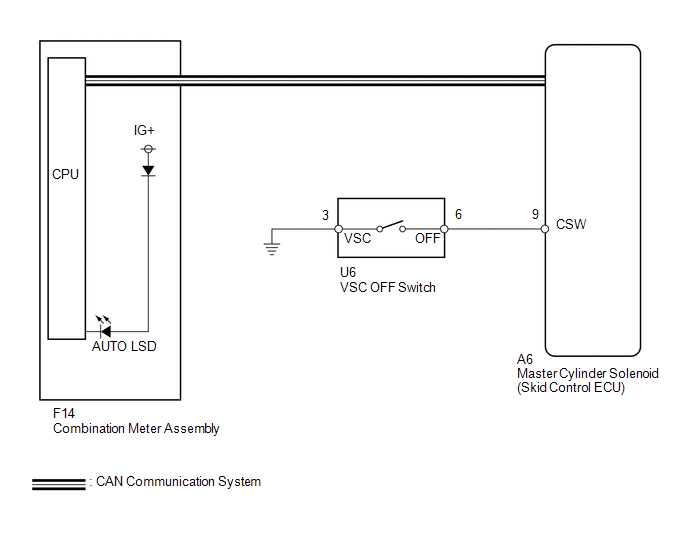

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

When replacing the master cylinder solenoid, perform calibration (See page ).

PROCEDURE

1.	CHECK CAN COMMUNICATION LINE

(a) Turn the ignition switch off.

(b) Connect the Techstream to the DLC3.

(d) Turn the Techstream on.

(e) Select CAN Bus Check from the System Selection Menu screen and follow the prompts on the screen to inspect the CAN bus (See page ).

OK:

CAN Bus Check indicates no malfunctions in CAN communication.

GO TO CAN COMMUNICATION SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

2.	INSPECT VSC OFF SWITCH

REPLACE VSC OFF SWITCH

3.	CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - VSC OFF SWITCH)

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.	READ VALUE USING TECHSTREAM (AUTO LSD INDICATOR LIGHT)

(a) Turn the ignition switch off.

(b) Connect the Techstream to the DLC3.

(d) Turn the Techstream on.

(e) Enter the following menus: Chassis / ABS/VSC/TRAC / Data List.

ABS/VSC/TRAC

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Auto LSD Indicator Light	Auto LSD indicator light/ ON or OFF	ON: Indicator light on OFF: Indicator light off	-

Tester Display

Measurement Item/Range

Normal Condition

Diagnostic Note

Auto LSD Indicator Light

Auto LSD indicator light/ ON or OFF

ON: Indicator light on

OFF: Indicator light off

(f) When performing the Auto LSD Indicator Light Active Test, check Auto LSD Indicator Light in the Data List (See page ).

ABS/VSC/TRAC

Tester Display	Test Part	Control Range	Diagnostic Note
Auto LSD Indicator Light	Auto LSD indicator light	Indicator light ON/OFF	Observe the combination meter.

Result

Result		Proceed to
Data List Display	Data List Display when Performing Active Test ON/OFF Operation	Proceed to
ON	Does not change between ON and OFF	A
ON	Changes between ON and OFF	B
OFF	Does not change between ON and OFF	A
OFF	Changes between ON and OFF	B

REPLACE MASTER CYLINDER SOLENOID

GO TO METER / GAUGE SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)
