Components

COMPONENTS

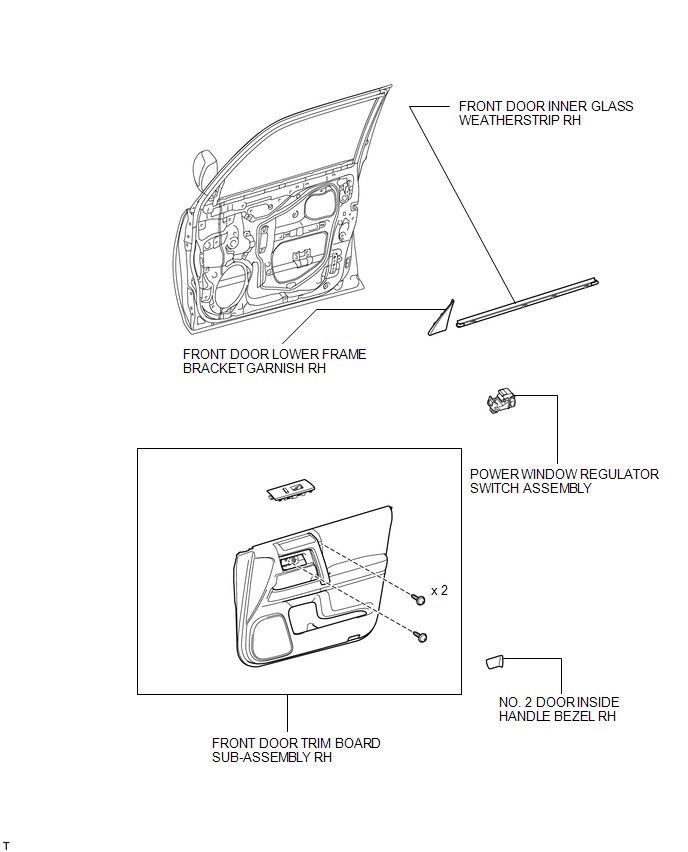

ILLUSTRATION

Inspection

INSPECTION

PROCEDURE

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Switch Condition	Specified Condition
6 (UP) - 1 (GND)	Manual up operation	Below 1 Ω
7 (DOWN) - 1 (GND)	Manual down operation	Below 1 Ω
8 (AUTO) - 1 (GND)	Auto up/down operation	Below 1 Ω
6 (UP) - 1 (GND)	Not operated	10 kΩ or higher
7 (DOWN) - 1 (GND)	Not operated	10 kΩ or higher
8 (AUTO) - 1 (GND)	Not operated	10 kΩ or higher

If the result is not as specified, replace the power window regulator switch assembly.

(b) Check that the LED illuminates.

(1) Apply battery voltage to the power window regulator switch and check that the LED illuminates.

OK:

Measurement Condition	Specified Condition
Battery positive (+) → 4 (LED) Battery negative (-) → 1 (GND)	LED illuminates

Measurement Condition

Specified Condition

Battery positive (+) → 4 (LED)

Battery negative (-) → 1 (GND)

LED illuminates

If the result is not as specified, replace the power window regulator switch assembly.

Text in Illustration

LED

Front view of wire harness connector

(Power Window Regulator Switch Assembly)

Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH RH

2. REMOVE NO. 2 DOOR INSIDE HANDLE BEZEL RH

3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH

4. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP RH

5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Detach the 10 claws from the backside and remove the power window regulator switch with base panel.

(b) Disconnect the connectors.

Installation

INSTALLATION

PROCEDURE

1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Attach the 2 claws to install the power window regulator switch.

(b) Connect the connectors.

2. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP RH

3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH

4. INSTALL NO. 2 DOOR INSIDE HANDLE BEZEL RH

5. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH RH
