Toyota 4Runner: General maintenance
Listed below are the general maintenance items that should be performed at the intervals specified in the “Owner's Warranty Information Booklet” or “Owner’s Manual Supplement/Scheduled Maintenance Guide”. It is recommended that any problem you notice should be brought to the attention of your Toyota dealer or qualified service shop for advice.

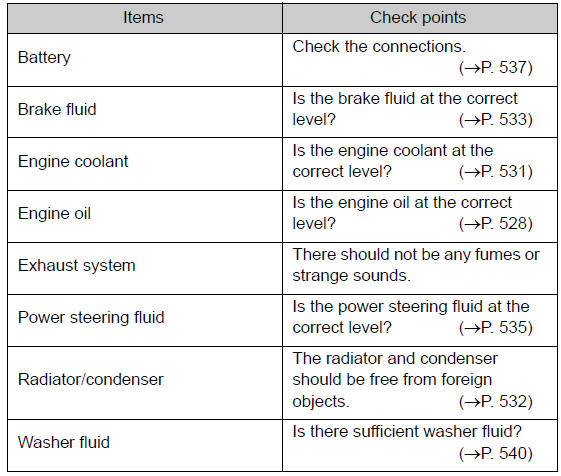

Engine compartment

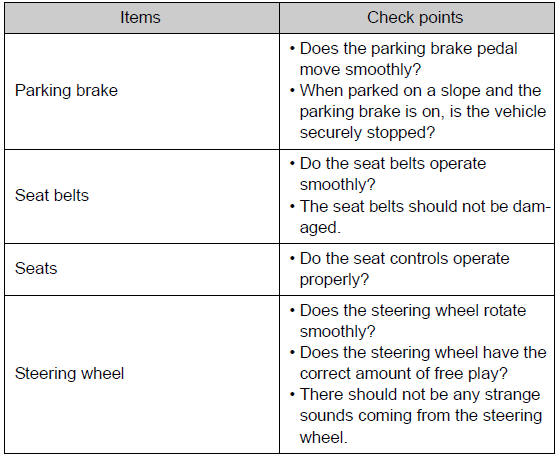

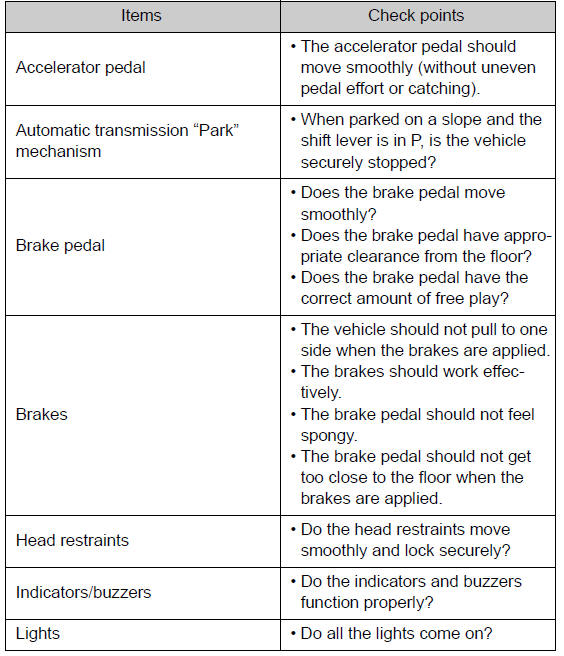

Vehicle interior

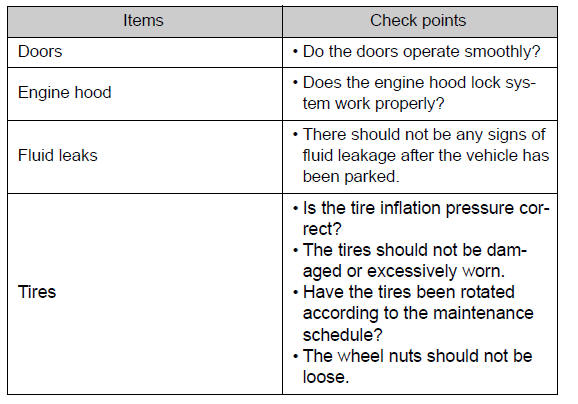

Vehicle exterior
CAUTION
If the engine is running
Turn the engine off and ensure that there is adequate ventilation before performing maintenance checks.
