Vehicles without third row seats

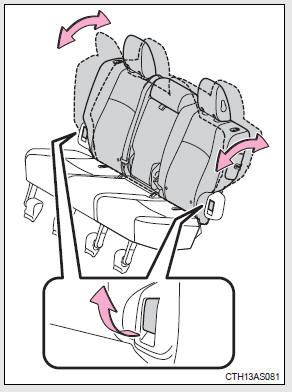

Rear seat
Pull up the seatback angle adjustment lever until the lock is released.
Vehicles with third row seats

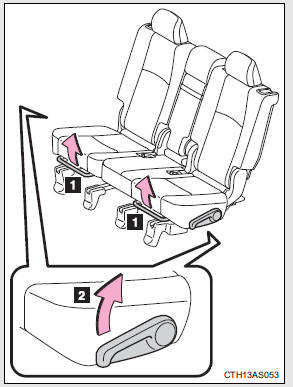

Second row seats
1. Seat position adjustment lever 2. Seatback angle adjustment lever
Third row seats
The third row seats do not have a seat adjustment function.
