Toyota 4Runner: Removal

Toyota 4Runner Service Manual / Vehicle Interior / Seat Belt / Front Seat Outer Belt Assembly / Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.

PROCEDURE

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).

2. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

(a) Partially remove the front door opening trim weatherstrip so that the lower center pillar garnish and center pillar garnish can be removed (See page ).

4. REMOVE REAR NO. 1 FLOOR STEP COVER (w/ Rear No. 2 Seat)

5. REMOVE QUARTER SCUFF PLATE LH (w/ Rear No. 2 Seat)

6. REMOVE REAR DOOR SCUFF PLATE LH

7. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

(a) Partially remove the rear door opening trim weatherstrip so that the lower center pillar garnish and center pillar garnish can be removed (See page ).

8. REMOVE OUTER LAP BELT ANCHOR COVER

9. REMOVE LOWER CENTER PILLAR GARNISH LH

(a) Remove the bolt and disconnect the front seat outer belt floor anchor.

(b) Detach the 4 claws and 2 clips and remove the lower center pillar garnish.

10. REMOVE CENTER PILLAR GARNISH LH

11. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

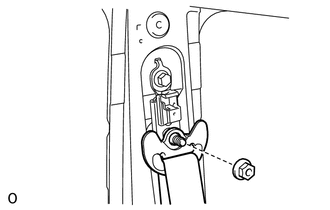

(a) Remove the nut and shoulder anchor.

(b) Disconnect the pretensioner connector.

12. REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY

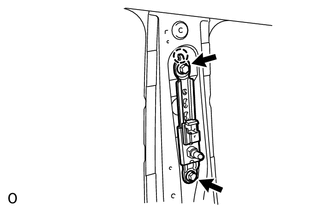

(a) Remove the 2 bolts and anchor plate.
