Toyota 4Runner: Adjustment

ADJUSTMENT

PROCEDURE

1. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Loosen the bolt of the park/neutral position switch and move the shift lever to the N position.


(b) Align the neutral basic line with the switch groove.

(c) Hold the switch in position and tighten the bolt.

Torque:

13 N·m {130 kgf·cm, 9 ft·lbf}

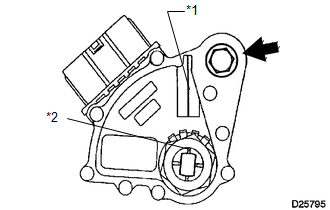

Text in Illustration

*1

Neutral Basic Line

*2

Groove

(d) After the adjustment, perform the on-vehicle inspection (See page ).
