Toyota 4Runner: Components

COMPONENTS

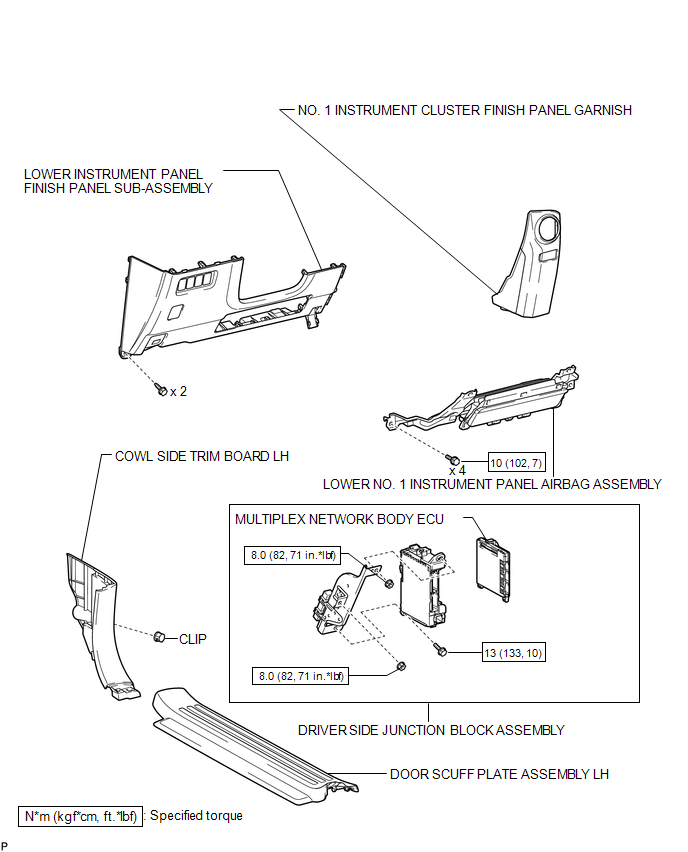

ILLUSTRATION


Main Body Ecu
...

Removal
REMOVAL PROCEDURE 1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS sys ...
