Toyota 4Runner: Components

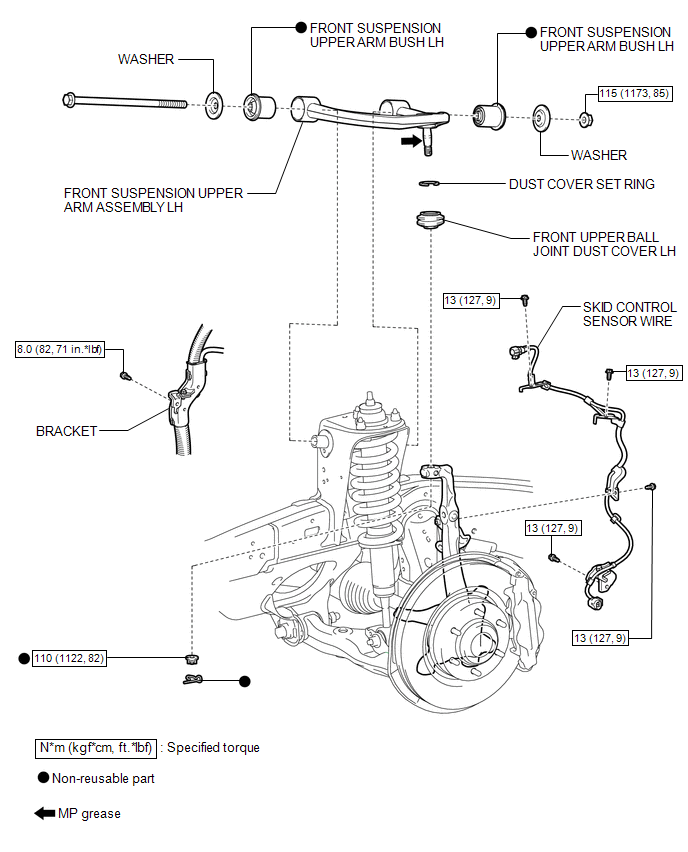

COMPONENTS

ILLUSTRATION


Front Upper Suspension Arm
...

On-vehicle Inspection
ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT FRONT SUSPENSION UPPER ARM BALL JOINT RATTLE (a) Jack up the vehicle. (b) Move the front suspension upper arm up and down by hand and check for rattle. ...
