Toyota 4Runner: Components

COMPONENTS

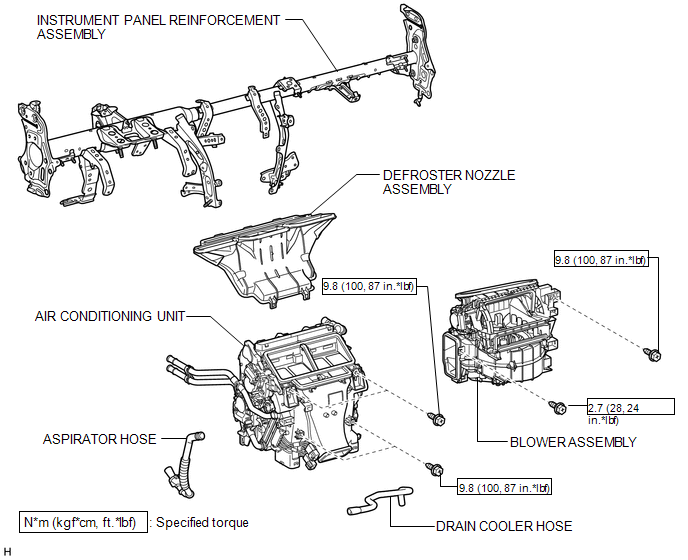

ILLUSTRATION

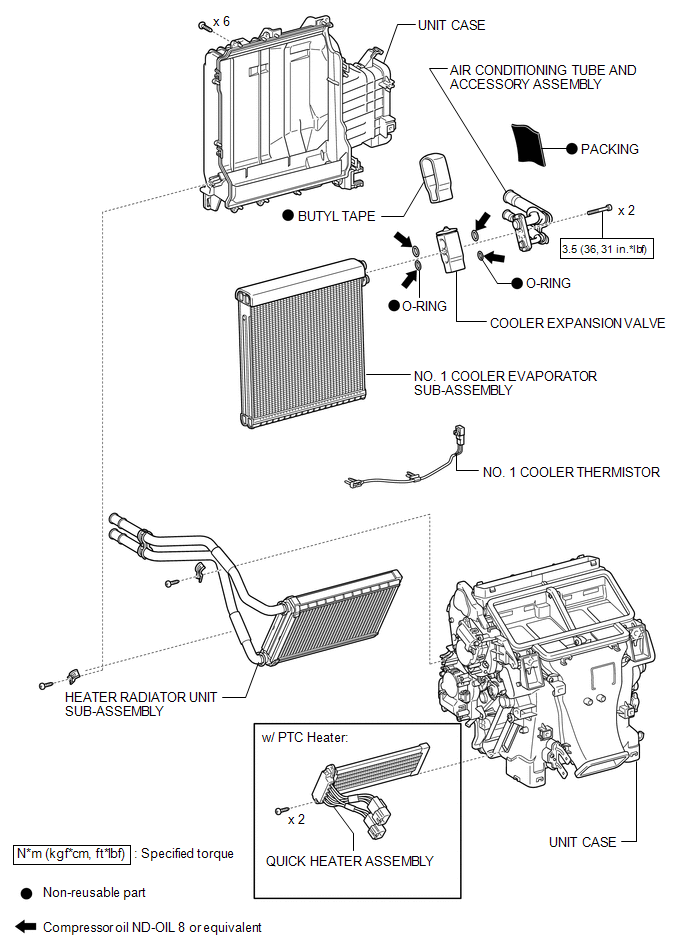

ILLUSTRATION

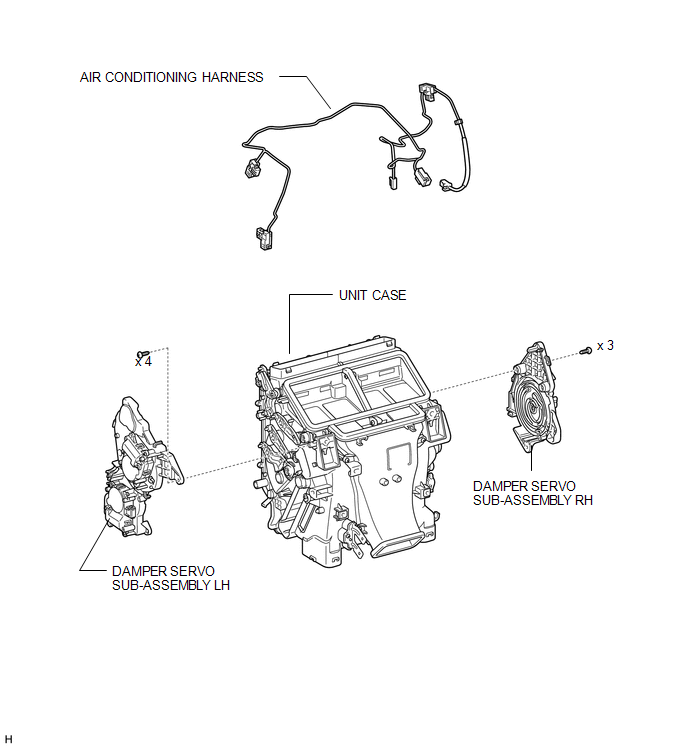

ILLUSTRATION

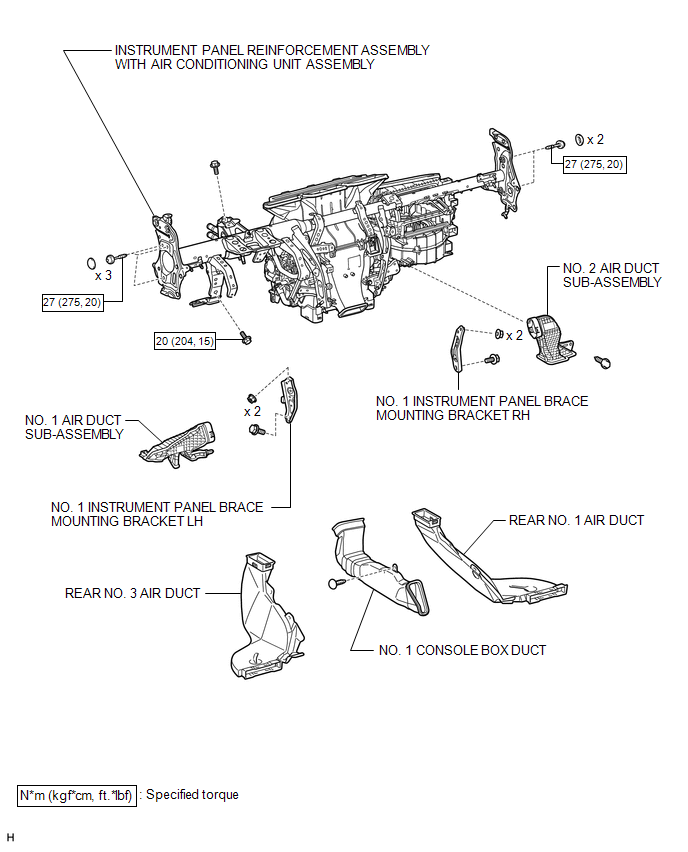

ILLUSTRATION


Air Conditioning Unit
...

Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE BLOWER ASSEMBLY (a) Remove the bolt. (b) Detach the 2 claws and remove the blower unit assembly. 2. REMOVE DEF ...

Other materials about Toyota 4Runner:

Reassembly
REASSEMBLY PROCEDURE 1. INSTALL NO. 1 COOLER THERMISTOR NOTICE: If reusing the evaporator, do not insert the thermistor into a location where the thermistor was previously inserted. (a) Insert the thermistor to a location that is 1 fin to the right or ...

Installation
INSTALLATION PROCEDURE 1. INSTALL FRONT DRIVE SHAFT ASSEMBLY (a) Coat the spline of the inboard joint shaft assembly with ATF. (b) Align the shaft splines and install the drive shaft with a brass bar and hammer. NOTICE: Set the snap ring with ...
