Toyota 4Runner: Components

COMPONENTS

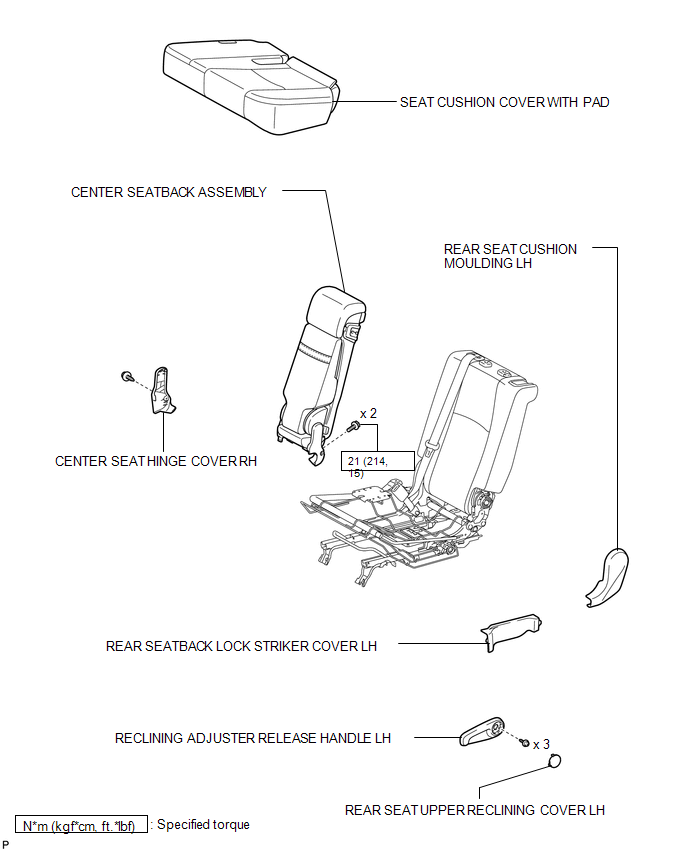

ILLUSTRATION

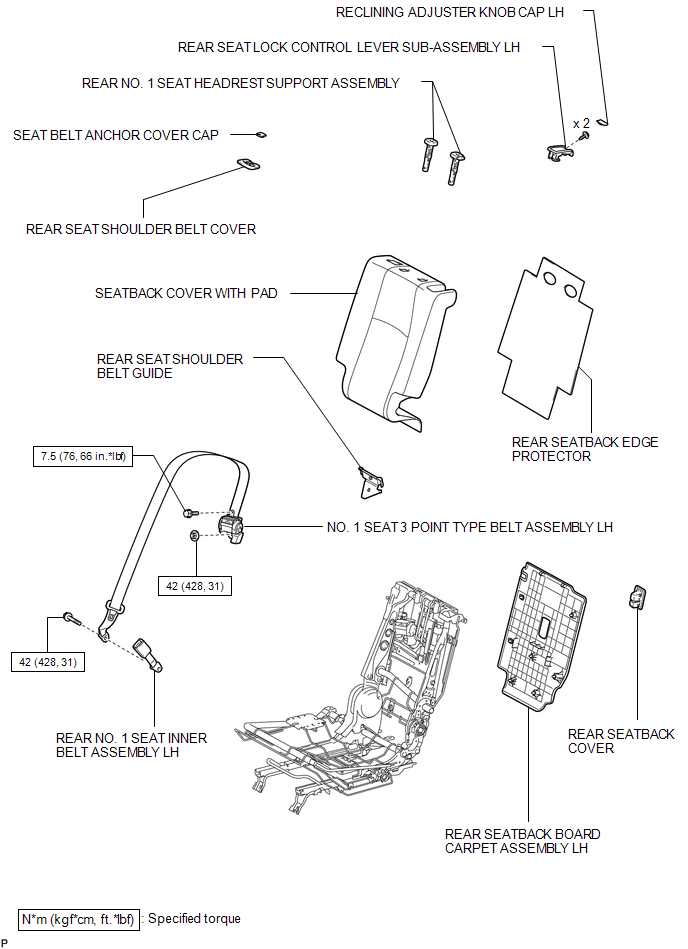

ILLUSTRATION


Rear Center Seat Outer Belt Assembly(for 60/40 Split Slide Walk-in Seat Type Lh Side)
...

Inspection
INSPECTION PROCEDURE 1. INSPECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH NOTICE: Do not disassemble the retractor. (a) When the inclination of the retractor is 15° or less, check that the belt ...
