Toyota 4Runner: Inspection

Toyota 4Runner Service Manual / Vehicle Interior / Seat Belt / Rear Center Seat Outer Belt Assembly(for 60/40 Split Slide Walk-in Seat Type Lh Side) / Inspection

INSPECTION

PROCEDURE

1. INSPECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

NOTICE:

Do not disassemble the retractor.

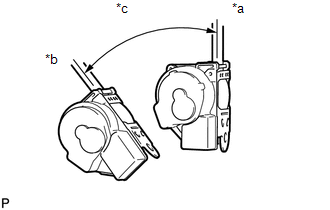

(a) When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the operation is not as specified, replace the belt.

(b) Check the fastening function of the child restraint system.

NOTICE:

The check should be performed with the outer belt installed.

(1) When the belt is pulled out fully, check that the belt automatically starts to retract.

(2) After the belt is fully retracted, check that the belt can be pulled out and retracted again. If the operation is not as specified, replace the belt assembly.

Text in Illustration

*a	Unlock
*b	Lock
*c	45°
