Toyota 4Runner: Components

COMPONENTS

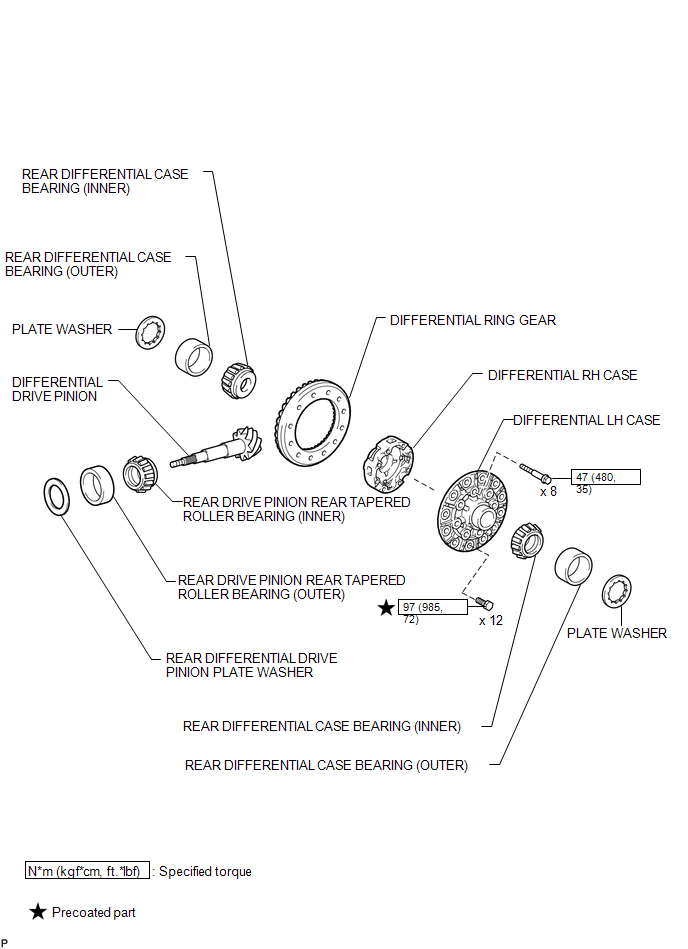

ILLUSTRATION

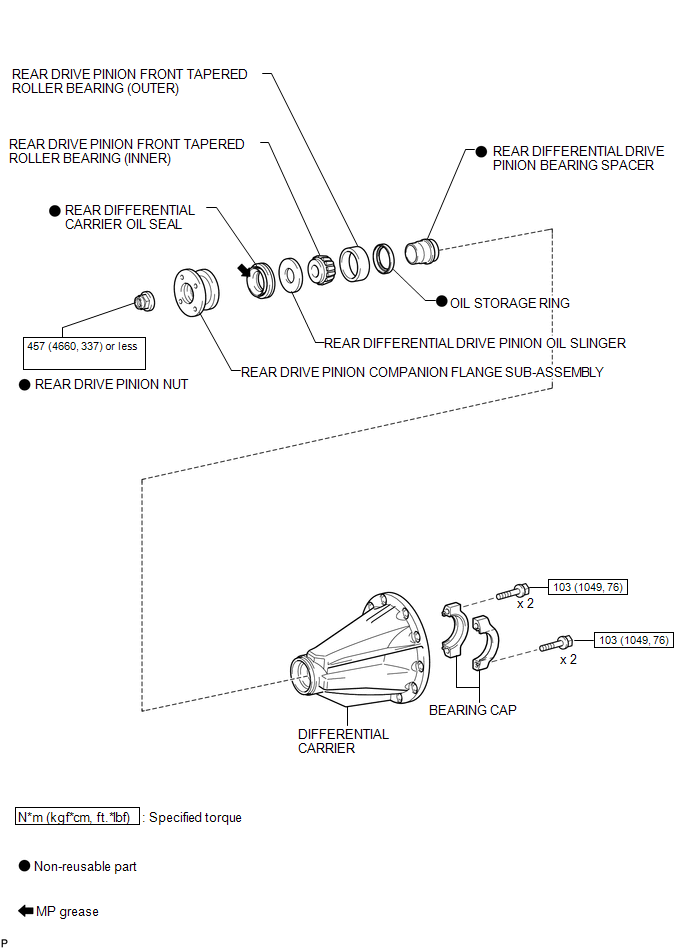

ILLUSTRATION

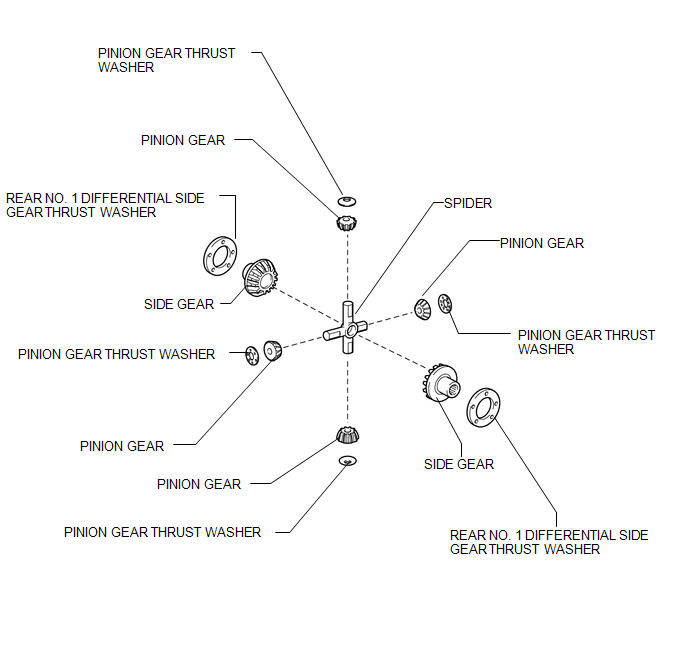

ILLUSTRATION

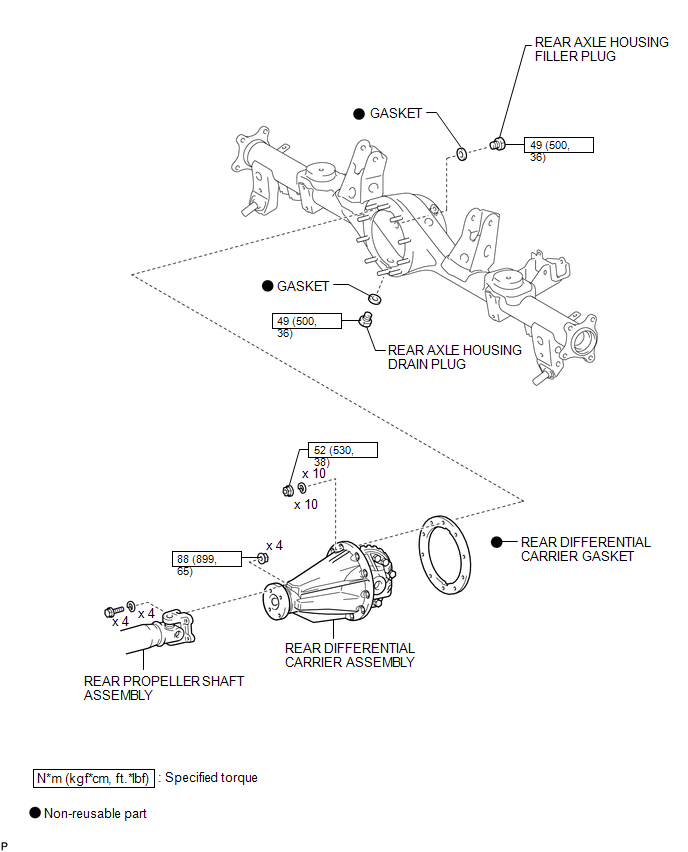

ILLUSTRATION


Rear Differential Carrier Assembly(w/o Differential Lock)
...

Removal
REMOVAL PROCEDURE 1. REMOVE REAR AXLE SHAFT RH (a) Remove the rear axle shaft RH (See page ). 2. REMOVE REAR AXLE SHAFT LH HINT: Use the same procedure described for the RH side. 3. REMOVE P ...
