CAUTION / NOTICE / HINT
NOTICE:
After replacing the navigation receiver assembly of vehicles subscribed to pay-type satellite radio broadcasts, XM radio ID registration is necessary.
PROCEDURE
1. |
CHECK IF A PROPER DISC IS INSERTED |
(a) Make sure that the disc is an audio disc or a disc with MP3, WMA or AAC files, and that it is not deformed, flawed, stained, deteriorated or otherwise defective.
OK:
Disc is normal
HINT:
NG | ![]() |
CHANGE DISC |
|
2. |
CHECK THAT DISC IS INSERTED PROPERLY |
(a) Check whether or not the disc is inserted upside down.
OK:
Disc is properly inserted.
NG | ![]() |
INSERT DISC PROPERLY |
|
3. |
CLEAN DISC AND RECHECK |

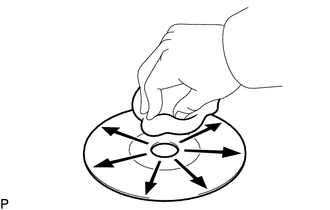

(a) Clean the disc by wiping it clean with a soft cloth from the inside to the outside in a radial direction. OK: Malfunction disappears. NOTICE: Do not use a conventional record cleaner or anti-static preservative. |
|
OK | ![]() |
END (DISC WAS DIRTY) |
|
4. |
REPLACE DISC AND RECHECK |
(a) Replace the disc with a known good one and check that the malfunction disappears.
OK:
Malfunction disappears.
OK | ![]() |
END (DISC WAS FAULTY) |
NG | ![]() |
REPLACE NAVIGATION RECEIVER ASSEMBLY |
Installation
INSTALLATION
PROCEDURE
1. INSTALL STEREO COMPONENT TUNER ASSEMBLY
(a) Connect the 6 connectors to the radio and display receiver assembly or navigation
receiver assembly and stereo component tuner assembly.
HINT:
Connect the connectors with white tape t ...
