Toyota 4Runner: Front seats

Manual seat


1. Seat position adjustment lever 2. Vertical height adjustment lever (driver’s side only) 3. Seatback angle adjustment lever 4. Lumber support adjustment switch (driver’s side only)

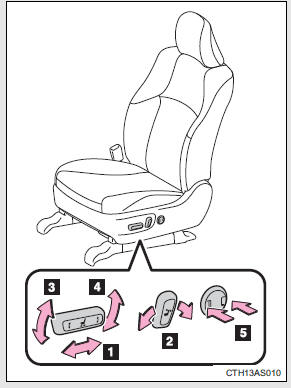

Power seat


1. Seat position adjustment switch 2. Seatback angle adjustment switch 3.Seat cushion (front) angle adjustment switch (driver’s side only) 4. Vertical height adjustment switch (driver’s side only) 5. Lumber support adjustment switch (driver’s side only)

Active head restraints


When the occupant’s lower back presses against the seatback during a rear-end collision, the head restraint moves slightly forward and upward to help reduce the risk of whiplash to the seat occupant.

The auto away function for exiting the driver seat

If the seat is already close to the rearmost position, the auto away function may not operate when the driver exits the vehicle.

Active head restraints

Even small forces applied to the seatback may cause the head restraint to move. Pushing up a locked head restraint forcibly may appear the head restraint inner structure. These do not indicate problems.


CAUTION

Seat adjustment

• To reduce the risk of sliding under the lap belt during a collision, do not recline the seat more than necessary.

If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen, or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.

Adjustments should not be made while driving as the seat may unexpectedly move and cause the driver to lose control of the vehicle.

• After adjusting the seat, make sure that the seat is locked in position.
