INSPECTION

PROCEDURE

1. INSPECT TRANSMISSION CONTROL SWITCH

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
3 (IG) - 7 (S)	Shift lever in S, "+" or "-"	Below 1 Ω
3 (IG) - 7 (S)	Shift lever not in S, "+" or "-"	10 kΩ or higher

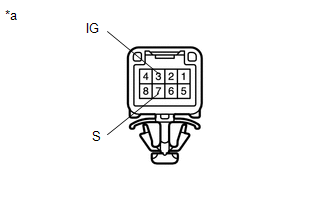

Text in Illustration

*a	Component without harness connected: (Transmission Control Switch)

If the result is not as specified, replace the transmission floor shift.
