Toyota 4Runner: Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT DRIVE SHAFT ASSEMBLY

NOTICE:

Keep the drive shaft level while handling it.

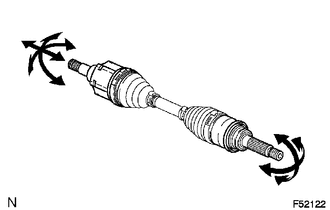

(a) Check if there is excessive play in the outboard joint.

(b) Check if the inboard joint shaft slides smoothly in the thrust direction.

(c) Check if there is excessive play in the radial direction of the inboard joint shaft.

(d) Check the boots for damage.

Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP (a) Hold the drive shaft lightly in a vise between aluminum plates. (b) Using pliers, remove the front No. 2 ax ...

Installation
INSTALLATION PROCEDURE 1. INSTALL FRONT DRIVE SHAFT ASSEMBLY (a) Coat the spline of the inboard joint shaft assembly with ATF. (b) Align the shaft splines and install the drive shaft with a bras ...
