Toyota 4Runner: Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH and LH sides.
  • The procedure listed below is for the LH side.
  • When installing the window frame moulding, black out tape and outside stripe, heat the vehicle body, window frame moulding, black out tape and outside stripe using a heat light.

    Standard:

    Item

    Temperature

    Vehicle Body

    40 to 60°C (104 to 140°F)

    Window Frame Moulding

    20 to 30°C (68 to 86°F)

    Black Out Tape

    20 to 30°C (68 to 86°F)

    Outside Stripe

    20 to 30°C (68 to 86°F)

NOTICE:

Do not heat the vehicle body, window frame moulding, black out tape or outside stripe excessively.

PROCEDURE

1. REPAIR INSTRUCTION

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Wipe off any tape adhesive residue with cleaner.

(b) Installation temperature.

(1) When the ambient temperature is below 15°C (59°F), perform the installation procedure after warming the vehicle body surface (installation surface of the door frame) and tape to between 20 and 30°C (68 and 86°F) using a heat light. When the ambient temperature is higher than 35°C (95°F), cool the vehicle body surface (installation surface of the door frame) and tape to between 20 and 30°C (68 and 86°F) prior to installation.

HINT:

  • The most appropriate temperature for installing the tape is 25°C (77°F).
  • When the temperature is low, the tape turns stiff and falls off easily. When the temperature is high, the tape loses elasticity.

(c) Before installation.

(1) Make sure any dirt on and around the vehicle body surface where the tape will be installed (installation surface of the door frame) is removed, and that the surface is smooth. If the surface is rough or dirt remains when pressing the tape onto the surface, air will be trapped under the tape and result in a poor appearance.

HINT:

Spray water on the shop floor to settle any dust.

(d) Key points for handling the tape.

(1) The tape bends and rolls up easily. Store the tape between flat pieces of cardboard or other similar objects and keep it dry and level.

NOTICE:

Do not bend the tape or leave it in place with a high temperature.

(e) Key points for the installation of the tape (how to use a squeegee and the installation procedure for a flat surface).

NOTICE:

  • Position the tape with a high level of accuracy to achieve a neat finish and to avoid peeling.
  • The tape cannot be reused because it deforms and will not fit after removal.

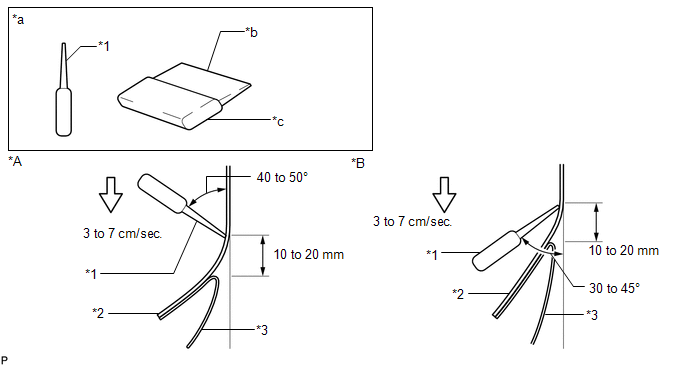

(1) To avoid air bubbles, slightly raise the part of the tape that is going to be applied so that its adhesive surface does not touch the vehicle body while applying the tape. Tilt the squeegee 40 to 50° (for pressing forward) or 30 to 45° (for pulling) from the vehicle body surface and press with a force of 20 to 30 N (2 to 3 kgf) while moving the squeegee at a constant slow speed of 3 to 7 cm (1.2 to 2.8 in.) per second.

Text in Illustration

*A

Pressing

*B

Pulling

*1

Squeegee

*2

Black Out Tape

*3

Release Paper

-

-

*a

Sectional View

*b

Non-padded Side

*c

Padded Side

-

-

NOTICE:

Be sure to observe the specified pressing speed, force and angle of the squeegee to avoid wrinkles and air bubbles.

HINT:

  • Either angle of the squeegee (for pressing forward or for pulling) is acceptable.
  • Be sure to apply the tape while removing the release paper 10 to 20 mm (0.393 to 0.787 in.) from the edge of the squeegee.

(f) Key points for the installation of the tape (how to use a squeegee and the installation procedure for hemming surfaces).

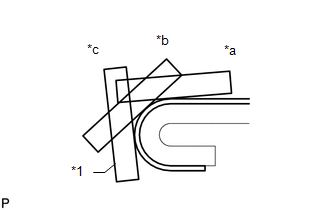

(1) If it is difficult to press the tape, press it in several steps as shown in the illustration. Use your fingers or the padded surface of a squeegee to slowly apply the tape to the hem of the vehicle, especially for a small hem.

HINT:

When applying tape to the backside of a hem, remove the release paper and use your fingers or the padded surface of a squeegee.

Text in Illustration

*1

Squeegee

*a

First

*b

Second

*c

Third


(g) Key points for the installation of the tape (how to use a squeegee and the installation procedure for the corners).

(1) Remove the release paper and apply the tape carefully with your fingers.

(2) Before applying the tape to each corner, heat the tape using a heat light and gradually apply it to avoid wrinkles on the tape and achieve a neat finish.

(h) Check after installation.

(1) After completing the application, check if the tape is applied neatly. If the tape is not applied neatly, apply new tape.

NOTICE:

Do not reuse the tape.

2. INSTALL FRONT DOOR LOWER OUTSIDE STRIPE LH

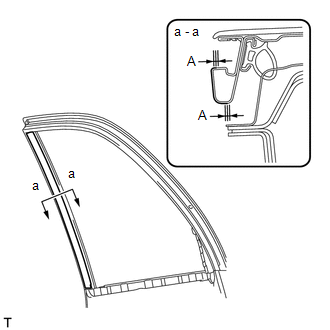

(a) Refer to the illustration to position a new front door lower outside stripe.

Reference Value:

Area

Specified Condition

A

+/- 1.0 mm (0.039 in.) From End

3. INSTALL FRONT DOOR OUTSIDE STRIPE LH

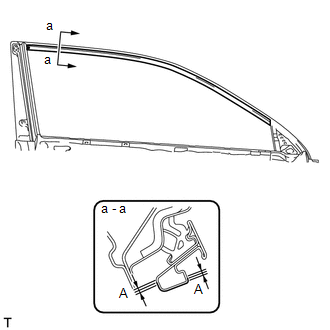

(a) Refer to the illustration to position a new front door outside stripe.

Reference Value:

Area

Specified Condition

A

+/- 1.0 mm (0.039 in.) From End

4. INSTALL NO. 1 BLACK OUT TAPE LH

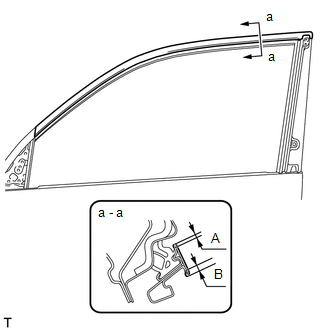

(a) Refer to the illustration to position new black out tape.

Reference Value:

Area

Specified Condition

A

2 to 4 mm (0.078 to 0.158 in.)

B

4 to 6 mm (0.157 to 0.236 in.)

5. INSTALL FRONT DOOR REAR WINDOW FRAME MOULDING LH


6. INSTALL FRONT DOOR WEATHERSTRIP LH


7. INSTALL FRONT DOOR BELT MOULDING LH


8. INSTALL FRONT DOOR GLASS RUN LH


9. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY LH


10. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH


11. INSTALL FRONT DOOR SERVICE HOLE COVER LH


12. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP LH


13. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH


14. INSTALL NO. 2 DOOR INSIDE HANDLE BEZEL LH


15. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH


16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some system need to be initialized after the cable is reconnected (See page ).


17. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light (See page ).


Removal
