Toyota 4Runner: Parts Location

PARTS LOCATION

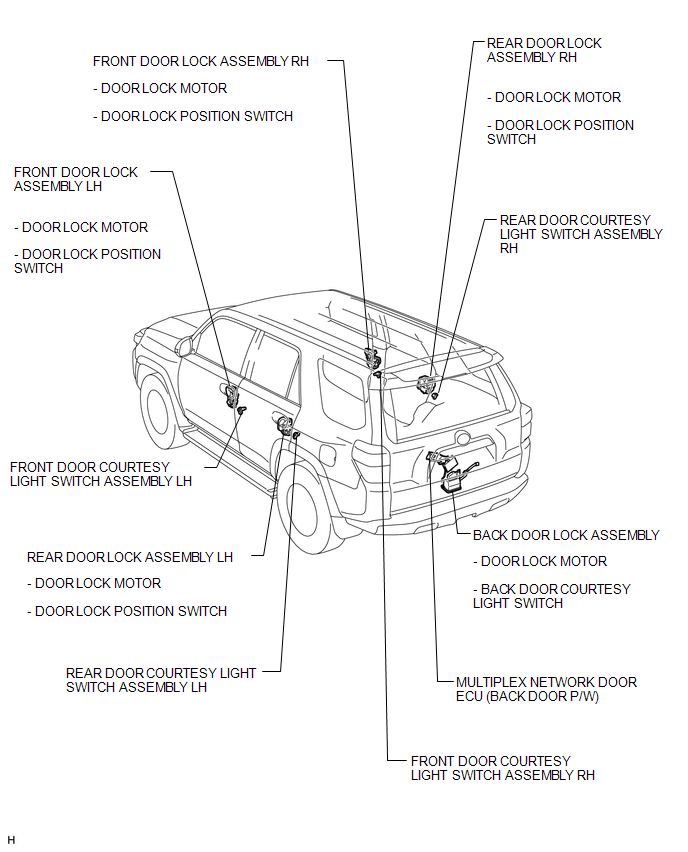

ILLUSTRATION

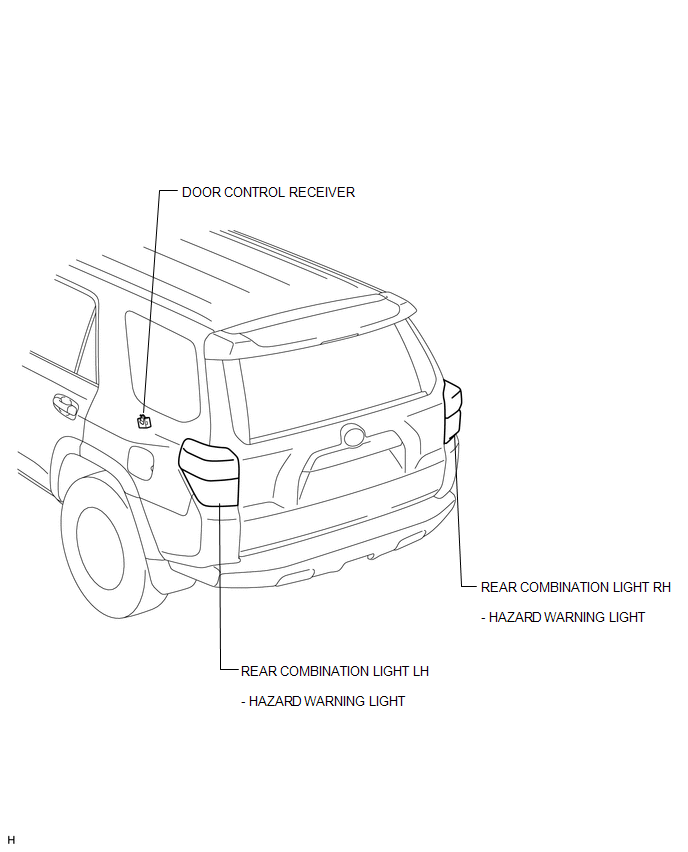

ILLUSTRATION

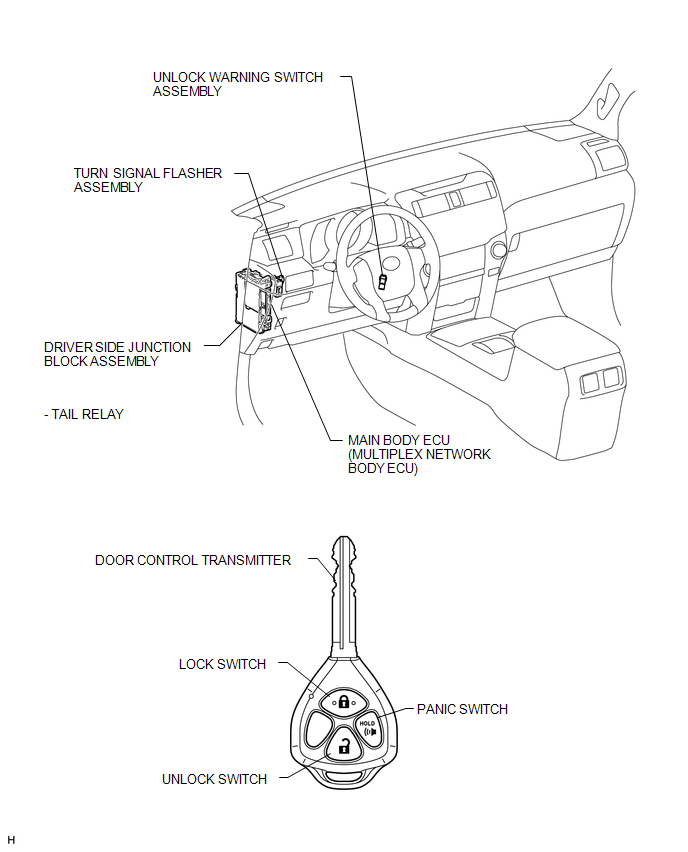

ILLUSTRATION

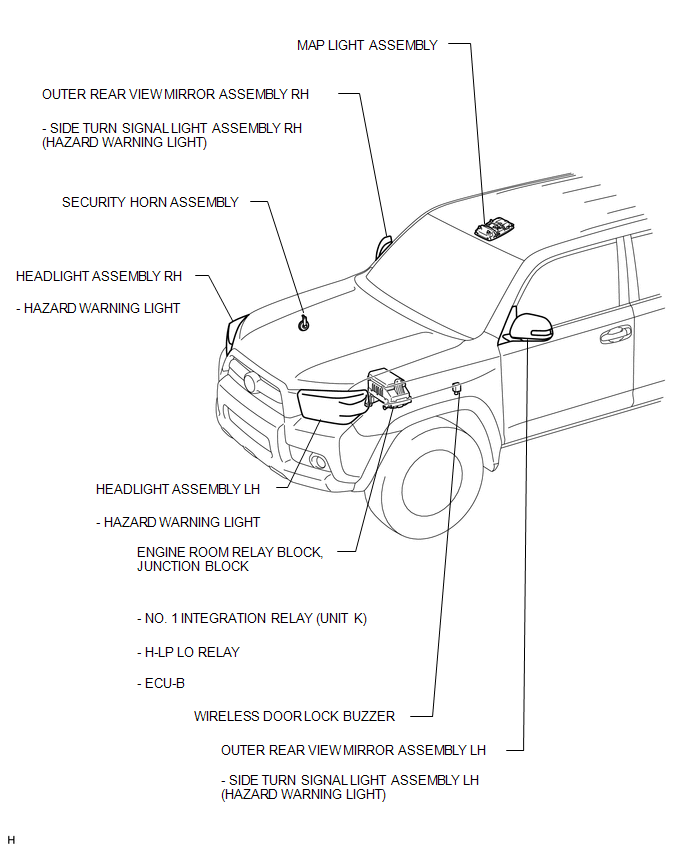

ILLUSTRATION


Wireless Door Lock Control System(w/o Smart Key System)
...

System Diagram
SYSTEM DIAGRAM ...
