Toyota 4Runner: Registration

REGISTRATION

PROCEDURE

1. DESCRIPTION OF CODE REGISTRATION

The key has 2 codes: the key code (immobiliser code) and the wireless code (recognition code). Both of these codes need to be registered. For wireless code registration procedures, refer to the following procedures (See page ). For key code registration procedures, refer
to the procedures below.

The key code is needed when the transponder key ECU, ECM or key is replaced with a new one.

2. KEY REGISTRATION PROCEDURES WHEN ADDING OR REPLACING KEY OR WHEN KEY IS LOST

HINT:

  • The following procedures require the use of the Techstream:
    • - New key ID registration
    • - Additional key ID registration
    • - Key ID erasure
  • A maximum of 8 key codes for 5 master keys and 3 sub-key can be registered.

Customer Request/Condition

Registration Procedure Condition

Procedure

Refer to

Registering additional key

Customer must bring at least 1 master key

1. Register additional keys as necessary (additional key ID registration)

PROCEDURE "B"

  • Replacing key
  • Making lost key unusable

HINT:

After key ID erasure, any remaining keys that are not registered at this time cannot be used. Therefore, after key ID erasure, register all remaining keys.

Customer must bring at least 1 master key

1. Using remaining key, clear all registered keys except one (key ID erasure)

PROCEDURE "C"

2. Register additional keys as necessary (additional key ID registration)

PROCEDURE "B"

All keys are lost

-

1. Reset all keys (all keys ID erasure (key code reset))

PROCEDURE "D"

2. Register all keys (new key ID registration)

PROCEDURE "A"

3. PART REPLACEMENT AND KEY REGISTRATION PROCEDURES

(a) The following table shows ECU replacement and key registration procedures in case the malfunctioning ECU has been specified after troubleshooting the engine immobiliser system.

HINT:

  • The following procedures indicated in the table below require the use of the Techstream:

    - New key code registration

    - Additional key code registration

    - Key code erasure

    - ECU code registration

  • A maximum of 8 key codes for 5 master keys and 3 sub-keys can be registered.

Malfunctioning ECU

Procedure

Refer to

Transponder key ECU

1. Replace transponder key ECU

-

2. Reregister all keys

PROCEDURE "A"

3. Using SST (09843-018040), connect terminals TC and CG of DLC3

PROCEDURE "E"

4. Turn ignition switch to ON and leave it as is for 30 minutes

ECM

1. Replace ECM

-

2. Check that engine starts and stays on for more than 3 seconds

PROCEDURE "E"

Transponder key ECU and ECM

1. Replace transponder key ECU

-

2. Replace ECM

-

3. Reregister all keys

PROCEDURE "A"

4. Check that engine starts and stays on for more than 3 seconds

PROCEDURE "E"

4. KEY REGISTRATION PROCEDURES

(a) PROCEDURE "A"

New key code registration

HINT:

  • This mode operates normally when no key codes are registered in the transponder key ECU.
  • When a new transponder key ECU is installed, key codes must be registered in the transponder key ECU.
  • In this mode, a maximum of 3 key codes for 2 master keys and 1 sub-key can be registered. The master keys and sub-key can be registered in any order because the transponder key ECU can distinguish between different types of keys.
  • New key codes must be registered with the battery connected. The ignition switch can be either ON or off.

Procedure

Security Indicator Light Condition

1. Start registration

Security indicator light is blinking

2. Insert one of master keys into ignition key cylinder

Security indicator light turns on

3. Enter the following menus:

(1) Body Electrical

(2) Immobiliser

(3) Utility

(4) Key Registration

HINT:

After above operation, proceed to next step in accordance with prompts on screen

Security indicator light turns off for 1 sec. and then turns on

4. Remove key

Security indicator light turns on

HINT:

When maximum number of key codes is registered, security indicator light remains off until last key registered is removed. After it is removed, security indicator light starts blinking.

5. Register another key?

YES: Go to step 6

NO: Go to step 7

HINT:

Key codes for maximum of 2 master keys and 1 sub-key can be registered

6. Insert another key into ignition key cylinder. Then go to step 4.

Security indicator light turns off for 1 sec. and then turns on

7. End of registration

(1) End new key code registration mode (when not using the Techstream)

HINT:

Automatic key code registration mode can be forced to end when at least 1 key code (immobiliser code) for a master key is registered.

  1. Turn the ignition switch to ON and LOCK 5 times within 10 seconds using a master key that is already registered.

(2) End new key code registration mode (when using the Techstream)

HINT:

Automatic key code registration mode can be forced to end when at least 1 key code (immobiliser code) for a master key is registered.

  1. Insert the key into the ignition key cylinder and turn the Techstream on.
  2. Follow the instructions on the Techstream screen to end new key code registration mode.

    HINT:

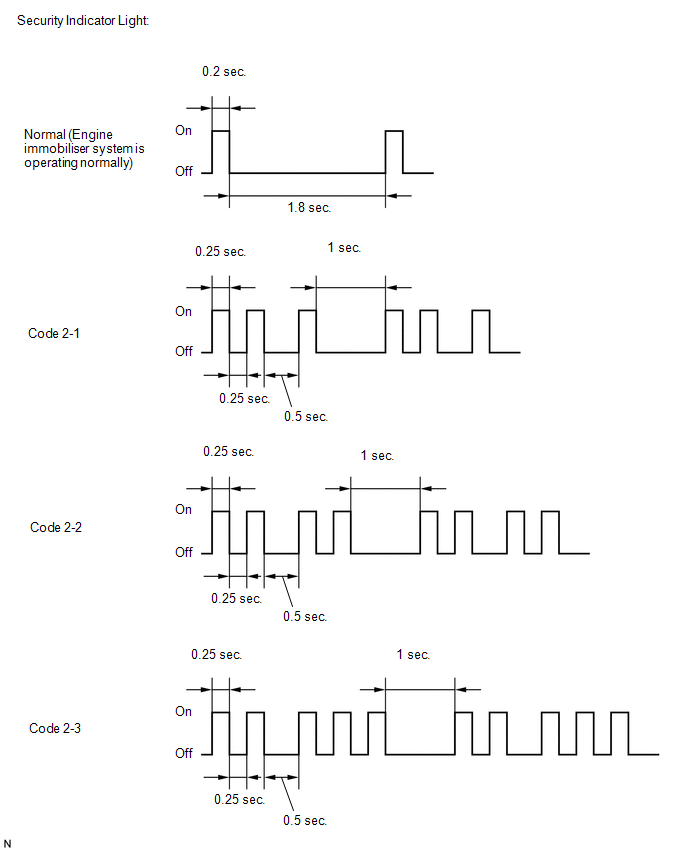

    • When the engine immobiliser system is operating normally and the key is pulled out, the security indicator light blinks continuously.
    • If new key code registration fails, code 2-1 is output by the security indicator light. Trying to reregister an already registered key causes code 2-2 to be output when the key is inserted. If the number of registered key codes exceeds the limit, code 2-3 is output by the security indicator light.

(b) PROCEDURE "B"

Additional key code registration

HINT:

  • At least one key code must be registered in the transponder key ECU in order for this mode to operate normally.
  • In this mode, a maximum of 5 master key codes and 3 sub-key codes can be registered.
  • This mode ends if each step is not completed within the specified time.
  • When the ignition key cylinder or the ignition key cylinder set is replaced, remove the transmitter module from the original master key. Then install this transmitter module to a new key and use the new key as the master key. If necessary, use this master key to register other keys.

NOTICE:

When only the ignition key cylinder is replaced, the new key cannot be used to lock or unlock doors. Therefore, keep the original key for locking and unlocking doors in order to avoid being locked out of the vehicle if the transmitter battery becomes depleted.

Procedure

Security Indicator Light Condition

Time (Completion of Operation)

1. Start registration

Security indicator light is blinking

-

2. Insert an already registered master key into the ignition key cylinder, turn the ignition switch to ON, and turn the Techstream on

Security indicator light turns off

-

3. Enter the following menus:

(1) Body Electrical

(2) Immobiliser

(3) Utility

(4) Key Registration

HINT:

After above operation, proceed to next step in accordance with prompts on screen

Security indicator light turns on

4. Perform following operation:

(1) Remove master key from ignition key cylinder

(2) Insert master key back into ignition key cylinder

(3) Turn ignition switch to ON

(4) Push Next on the Techstream

Security indicator light turns on

Within 120 sec. of instruction on the Techstream

5. Remove master key, and then push Next on the Techstream

Security indicator light turns on

Within 20 sec. of instruction on the Techstream

6. Insert unregistered key into ignition key cylinder, and then push Next on the Techstream

Security indicator light is blinking

HINT:

Registration is being performed

Within 10 sec.

7. After 60 sec., key is registered

HINT:

Security indicator light turns off

Security indicator light turns off

-

8. Screen displays number of registered keys

9. Register another key?

YES: Go to step 2

NO: Go to step 10

10. End of registration

HINT:

  • A brief outline of the procedures for key code registration is shown above. For more detailed information, refer to the screen of the Techstream.
  • When the engine immobiliser system is operating normally and the key is pulled out, the security indicator light blinks continuously.
  • If additional key code registration fails, code 2-1 is output by the security indicator light. Trying to reregister a previously registered key causes code 2-2 to be output when the key is inserted. If the number of registered key codes exceeds the limit, code 2-3 is output by the security indicator light. The output details are shown in procedure "B".

(c) PROCEDURE "C"

Clear all key codes except master key

HINT:

  • All key codes are cleared except for the master key which is used for clearing the key codes. In order to use a key whose code is cleared, a new key code must be registered.
  • At least one key code must be registered in the transponder key ECU in order for this mode to operate normally.
  • Make sure the inserted key is a registered master key.

Procedure

Security Indicator Light Condition

Time (Completion of Operation)

1. Start of erasure

Security indicator light is blinking

-

2. Enter the following menus:

(1) Body Electrical

(2) Immobiliser

(3) Utility

(4) Transponder Code Erasure

HINT:

After above operation, proceed to next step in accordance with prompts on screen

Security indicator light turns on for 1 sec. then turns off

-

3. Perform following operation:

(1) Insert registered master key into ignition key cylinder

(2) Turn ignition switch to ON

(3) Push Next on the Techstream

Security indicator light turns off

Within 120 sec. of instruction on the Techstream

4. Remove master key

HINT:

Key codes are cleared except inserted key

Security indicator light turns on

Within 10 sec. of instruction on the Techstream

5. End of erasure

(d) PROCEDURE "D"

Erasure of all key codes

HINT:

  • This mode performs normally when at least one key code must be registered in the transponder key ECU.
  • The inserted key is either a registered key or unregistered key.

Procedure

Security Indicator Light Condition

Time (Completion of Operation)

1. Using TIS, confirm that user and vehicle match

Security indicator light is blinking

-

2. Start of erasure

Security indicator light is blinking

-

3. Insert previously registered master key or unregistered key into ignition key cylinder and turn ignition switch to ON

Security indicator light turns off

Within 120 sec.

4. Enter the following menus:

(1) Body Electrical

(2) Immobiliser

(3) Utility

(4) Immobiliser Code Reset

Security indicator light turns on for 1 sec. then turns off

Within 15 min.

5. Completion of erasure of all key codes is displayed

Security indicator light turns on

-

6. End of erasure

HINT:

  • A brief outline of the procedures for key code registration is shown above. For more detailed information, refer to the screen of the Techstream.
  • When the engine immobiliser system is operating normally and the key is pulled out, the security indicator light blinks continuously.

(e) PROCEDURE "E"

ECU - ECM communication ID registration

NOTICE:

  • The ECU - ECM communication ID must be registered to the transponder key ECU and ECM when one of the following occurs in order to match their IDs: 1) the transponder key ECU is replaced, 2) the ECM is replaced, or 3) the transponder key ECU and ECM are replaced.
  • The SFI system cannot be started unless the ECU - ECM communication IDs of the transponder key ECU and ECM match.

(1) After replacing the transponder key ECU

  1. Register the key code(s) by following the new key code registration procedure (procedure "A").

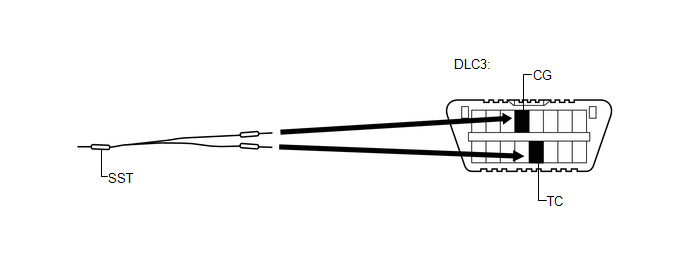

  2. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3 before inserting the key into the key cylinder.

SST: 09843-18040


Procedure

Security Indicator Light Condition

1. Insert previously registered key into ignition key cylinder and turn ignition switch to ON

HINT:

Do not start engine

Security indicator light turns off

2. Leave vehicle as is for 30 min.

3. Turn ignition switch off and disconnect terminals 13 (TC) and 4 (CG)

4. Start engine

5. Check that engine starts and stays on for more than 3 sec. Registration is complete

(2) After replacing the ECM

  1. Register the ECU - ECM communication ID.

Procedure

Security Indicator Light Condition

1. Insert previously registered key into ignition key cylinder

Security indicator light turns off.

2. Start engine

3. Check that engine starts and stays on for more than 3 sec. Registration is complete

(3) After replacing the transponder key ECU and ECM

  1. Register the key code(s) by following the new key code registration procedure (procedure "A").
  2. Register the ECU - ECM communication ID.

Procedure

Security Indicator Light Condition

1. Insert previously registered key into ignition key cylinder

Security indicator light turns off

2. Start engine

3. Check that engine starts and stays on for more than 3 sec. Registration is complete
