Toyota 4Runner: Relay(for Magnet Clutch Control)

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. REMOVE MAGNET CLUTCH RELAY

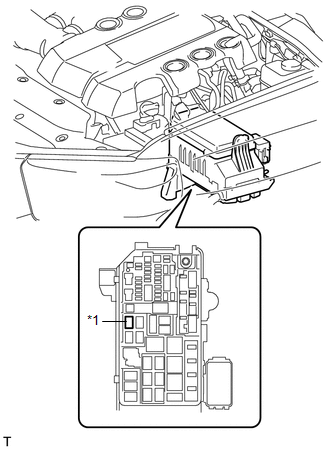

(a) Remove the magnet clutch relay from the engine room relay block.

Text in Illustration

*1

Magnet Clutch Relay


2. INSPECT MAGNET CLUTCH RELAY


(a) Measure the resistance of the according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 5

Battery voltage not applied between terminals 1 and 2

10 kΩ or higher

Battery voltage applied to terminal 1 and 2

Below 1 Ω

  • If the result is not as specified, replace the relay.

3. INSTALL MAGNET CLUTCH RELAY

(a) Install the magnet clutch relay to the engine room relay block.
