Toyota 4Runner: Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH and LH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. REMOVE ROCKER PANEL MOULDING (w/ Intuitive Parking Assist System)

(See page )

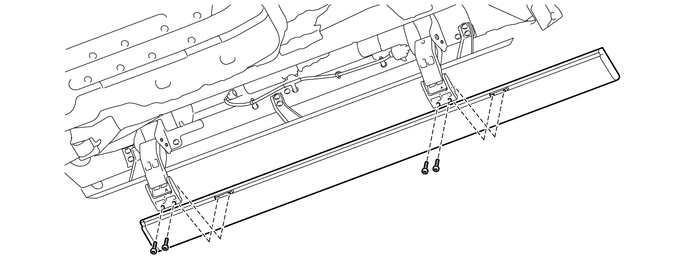

2. REMOVE STEP PLATE

(a) Using a 5 mm hexagon wrench, remove the 4 hexagon bolts and step plate.

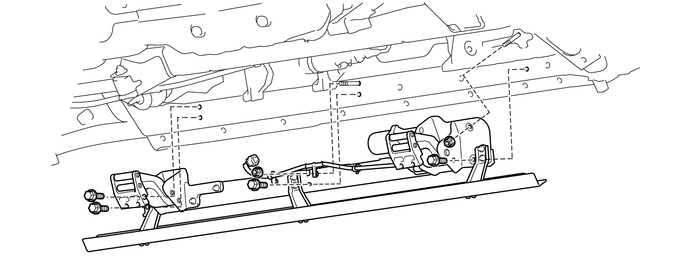

3. REMOVE POWER LIFT STEP ASSEMBLY

(a) Disconnect the connector.


(b) Remove the 4 bolts, 2 nuts and power lift step assembly.
