Toyota 4Runner: Removal

REMOVAL

PROCEDURE

1. REMOVE REAR NO. 2 SEAT ASSEMBLY

(a) Remove the rear No. 2 seat assembly (See page ).


2. REMOVE REAR NO. 1 FLOOR STEP COVER (w/ Rear No. 2 Seat)


3. REMOVE QUARTER SCUFF PLATE LH (w/ Rear No. 2 Seat)


4. REMOVE REAR DOOR SCUFF PLATE LH


5. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH


6. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER (w/o Deck Board)


7. REMOVE NO. 1 DECK BOARD SUB-ASSEMBLY (w/o Deck Board)


8. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER (w/ Deck Board, w/o Rear No. 2 Seat)


9. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY (w/ Deck Board)


10. REMOVE REAR NO. 2 FLOOR BOARD ASSEMBLY (w/ Deck Board)


11. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY LH (w/ Deck Board)


12. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY RH (w/ Deck Board)


13. REMOVE DECK BOARD ASSEMBLY (w/ Deck Board)


14. REMOVE INNER FLOOR SIDE RAIL SUB-ASSEMBLY (w/ Deck Board)


15. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE


16. REMOVE REAR FLOOR CARPET ASSEMBLY (w/ Deck Board)

(a) Detach the 4 claws and remove the rear floor carpet.

17. REMOVE REAR FLOOR CARPET ASSEMBLY (w/o Deck Board)


18. REMOVE REAR FLOOR PAD (w/o Deck Board)

(a) Remove the rear floor pad.

19. REMOVE REAR NO. 1 SEAT OUTER LAP BELT ANCHOR COVER


20. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK


21. REMOVE FRONT DECK SIDE TRIM COVER LH


22. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER


23. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

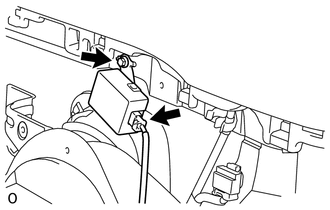

24. REMOVE DOOR CONTROL RECEIVER

(a) Disconnect the connector.


(b) Remove the bolt and door control receiver.
