INSTALLATION

PROCEDURE

1. INSTALL DOOR CONTROL RECEIVER

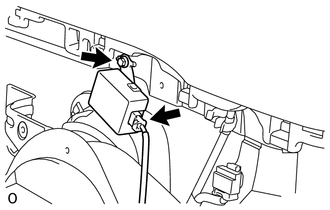

(a) Install the door control receiver with the bolt.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}


(b) Connect the connector.

2. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH


3. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM COVER


4. INSTALL FRONT DECK SIDE TRIM COVER LH


5. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK


6. INSTALL REAR NO. 1 SEAT OUTER LAP BELT ANCHOR COVER


7. INSTALL REAR FLOOR PAD (w/o Deck Board)

(a) Install the rear floor pad.

8. INSTALL REAR FLOOR CARPET ASSEMBLY (w/o Deck Board)


9. INSTALL REAR FLOOR CARPET ASSEMBLY (w/ Deck Board)

(a) Attach the 4 claws to install the rear floor carpet.

10. INSTALL REAR FLOOR MAT REAR SUPPORT PLATE


11. INSTALL INNER FLOOR SIDE RAIL SUB-ASSEMBLY (w/ Deck Board)


12. INSTALL DECK BOARD ASSEMBLY (w/ Deck Board)


13. INSTALL LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY LH (w/ Deck Board)


14. INSTALL LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY RH (w/ Deck Board)


15. INSTALL REAR NO. 2 FLOOR BOARD ASSEMBLY (w/ Deck Board)


16. INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY (w/ Deck Board)


17. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM COVER (w/ Deck Board)


18. INSTALL NO. 1 DECK BOARD SUB-ASSEMBLY (w/o Deck Board)


19. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM COVER (w/o Deck Board)


20. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH


21. INSTALL REAR DOOR SCUFF PLATE LH


22. INSTALL QUARTER SCUFF PLATE LH (w/ Rear No. 2 Seat)


23. INSTALL REAR NO. 1 FLOOR STEP COVER (w/ Rear No. 2 Seat)


24. INSTALL REAR NO. 2 SEAT ASSEMBLY

(a) Install the rear No. 2 seat assembly (See page ).
