REMOVAL
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
HINT:
PROCEDURE
1. PRECAUTION
CAUTION:
2. REMOVE FRONT SEAT HEADREST ASSEMBLY
(a) Remove the front seat headrest assembly.

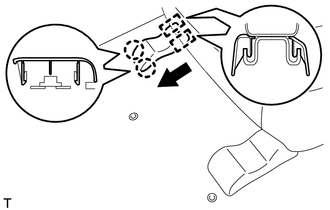

3. REMOVE FRONT SEAT INNER TRACK BRACKET COVER LH
(a) Operate the power seat switch (slide switch) to move the front seat assembly to the rearmost position.
(b) Using a moulding remover, detach the 2 claws. |
|
(c) Move the front seat inner track bracket cover LH in the direction of the arrow to detach the 2 guides and remove the front seat inner track bracket cover LH.

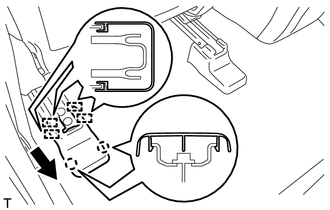

4. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER LH
(a) Using a moulding remover, detach the 2 claws. |
|
(b) Move the front seat outer track bracket cover LH in the direction of the arrow to detach the 2 claws and guide, and remove the front seat outer track bracket cover LH.

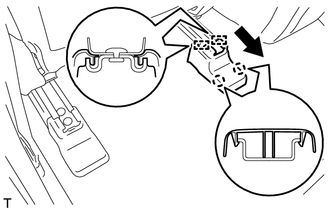

5. REMOVE INNER SEAT TRACK BRACKET COVER LH
(a) Operate the power seat switch (slide switch) to move the front seat assembly to the foremost position.
(b) Using a moulding remover, detach the 2 claws. |
|
(c) Move the inner seat track bracket cover LH in the direction of the arrow to detach the 2 guides and remove the inner seat track bracket cover LH.

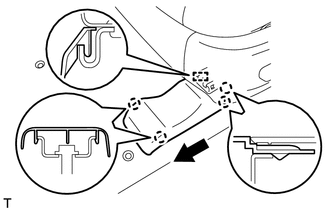

6. REMOVE OUTER SEAT TRACK COVER LH
(a) Using a moulding remover, detach the 2 claws. |
|
(b) Move the outer seat track cover LH in the direction of the arrow to detach the 4 guides and remove the outer seat track cover LH.
7. REMOVE FRONT SEAT ASSEMBLY

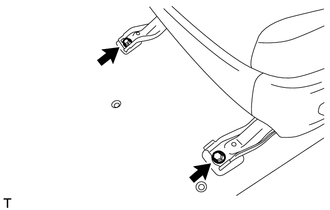

(a) Remove the 2 bolts. |
|
(b) Operate the power seat switch (slide switch) to move the front seat assembly to the rearmost position.
(c) Remove the 2 bolts. |
|
(d) Operate the power seat switch (slide switch) to move the front seat assembly to the center position, and operate the power seat switch (reclining switch) to move the seatback to the upright position.
(e) Disconnect the cable from the negative (-) battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).
(f) Disconnect the connectors under the seat.
(g) Remove the front seat assembly.
NOTICE:
Be careful not to damage the vehicle body.
