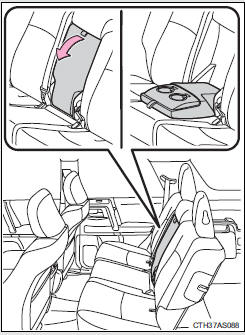

Fold down the armrest for use.
NOTICE
To prevent damage to the armrest
Do not apply too much load on the armrest.
