PROCEDURE
1. |
CHECK IF A PROPER CD IS INSERTED |
(a) Make sure that the CD is an audio CD or a CD with an MP3, WMA or AAC file, and that it is not deformed, flawed, stained, deteriorated or otherwise defective.
OK:
CD is normal.
HINT:
NG | ![]() |
CD IS FAULTY |
|
2. |
CHECK THAT CD IS INSERTED PROPERLY |
(a) Check whether or not the CD is inserted upside down.
OK:
CD is properly inserted.
NG | ![]() |
SET CD PROPERLY |
|
3. |
CLEAN CD AND RECHECK |

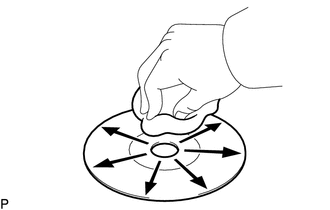

(a) Disc cleaning (1) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction. OK: Malfunction disappears. NOTICE: Do not use a conventional record cleaner or anti-static preservative. |
|
OK | ![]() |
END (CD WAS DIRTY) |
|
4. |
REPLACE CD AND RECHECK |
(a) Replace the CD with a known good one and check that the malfunction disappears.
OK:
Malfunction disappears.
OK | ![]() |
CD WAS FAULTY |
NG | ![]() |
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY |
Air Conditioning Compressor Magnetic Clutch Circuit
DESCRIPTION
When the air conditioning amplifier assembly is turned on, a magnet clutch assembly
ON signal is sent from the MGC terminal of the air conditioning amplifier assembly.
Then, the A/C COMP relay turns on to operate the magnet clutch assembly.
W ...
Reassembly
REASSEMBLY
PROCEDURE
1. INSTALL GENERATOR DRIVE END FRAME BEARING
(a) Using SST and a press, press in a new generator drive end frame bearing.
SST: 09950-60010
09951-00470
SST: 09950-70010
09951-07100
...
