COMPONENTS

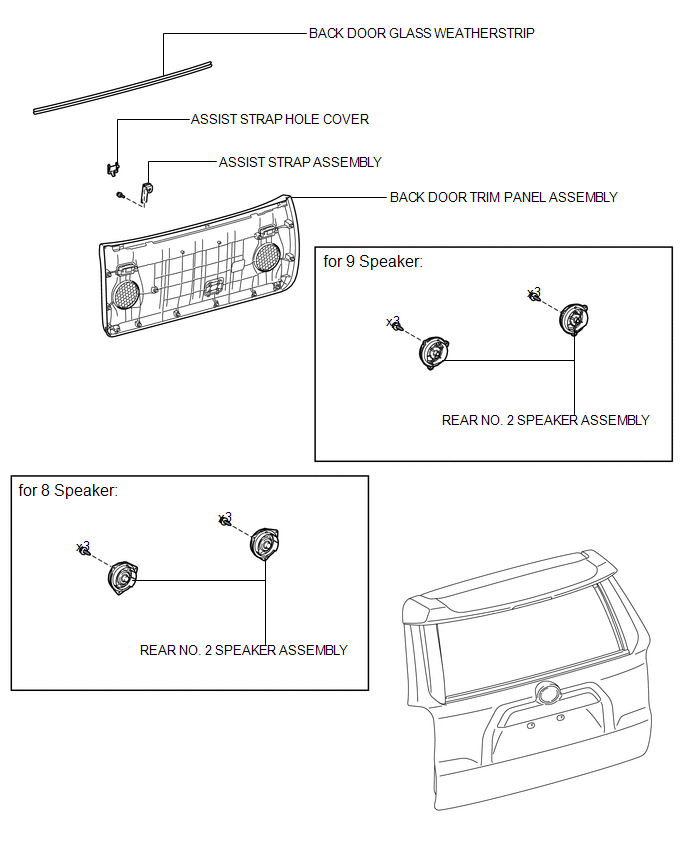

ILLUSTRATION

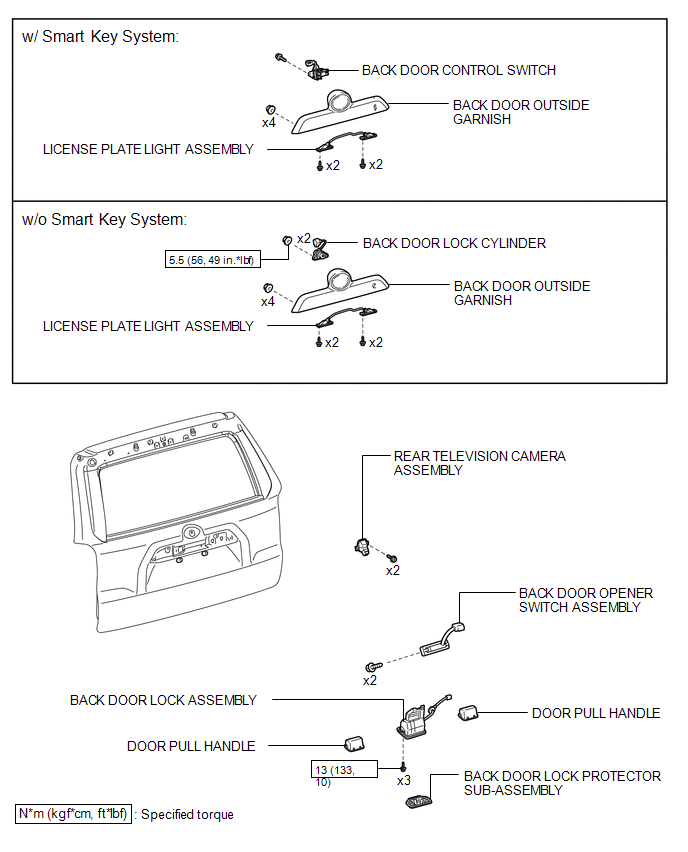

ILLUSTRATION

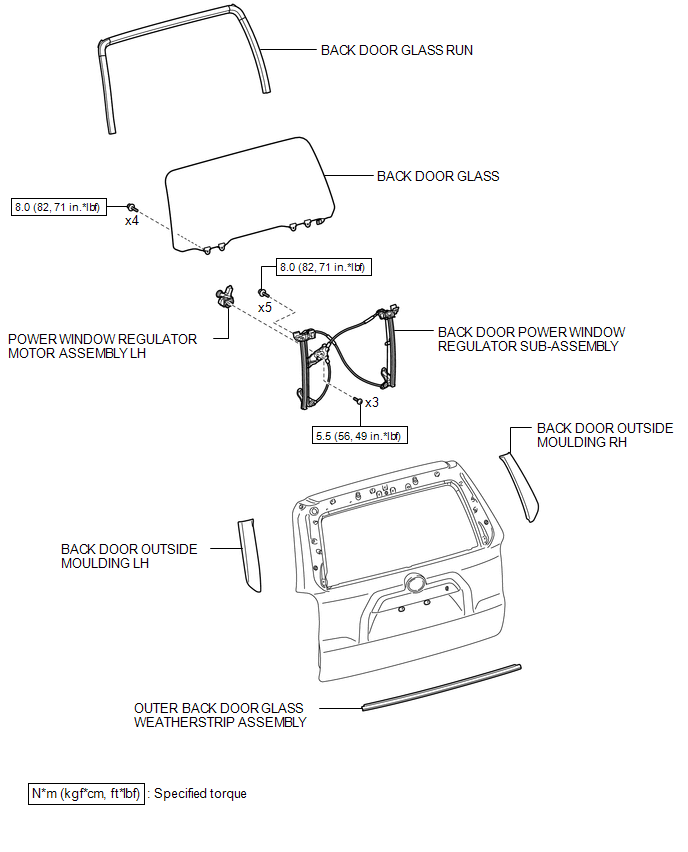

ILLUSTRATION

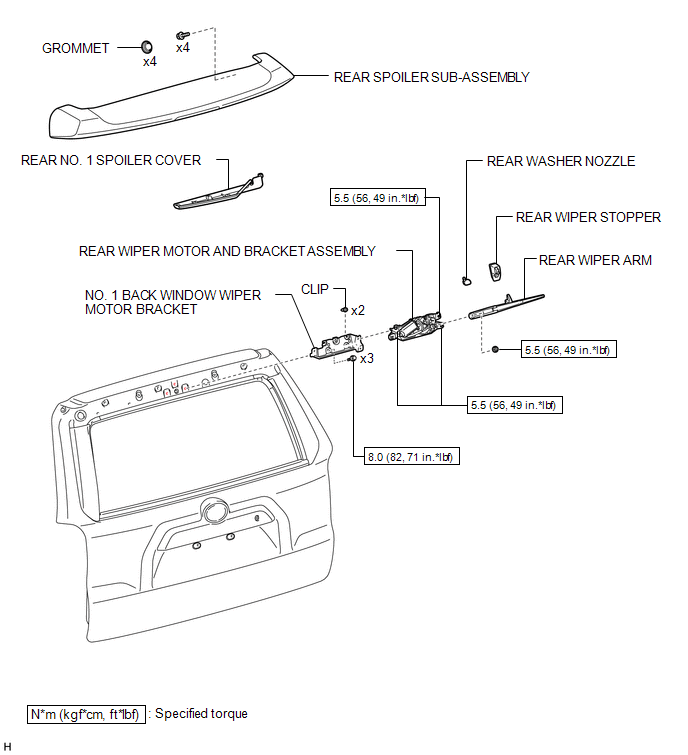

ILLUSTRATION

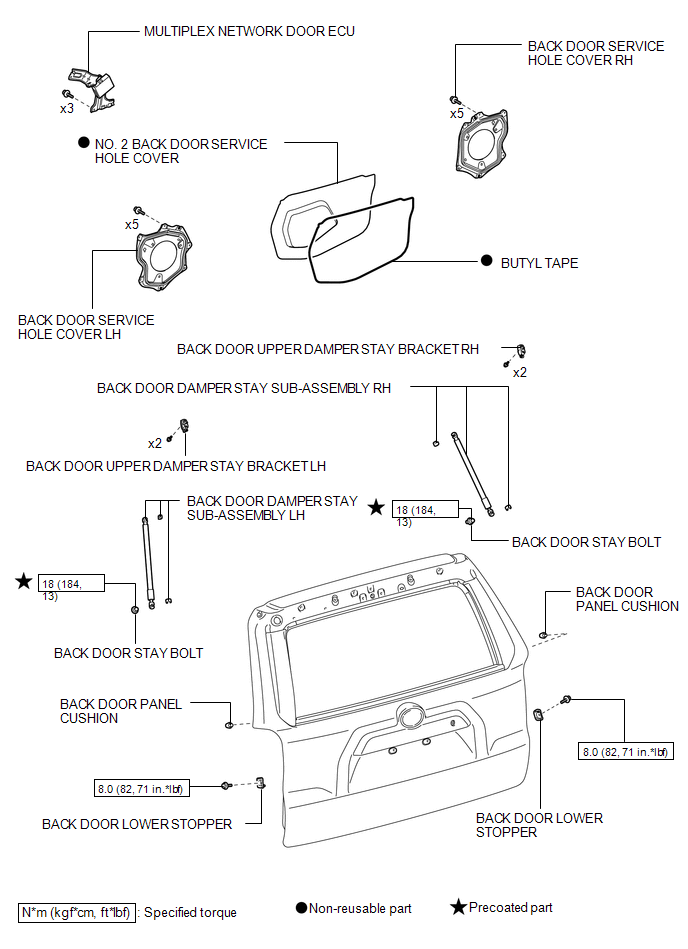

ILLUSTRATION
Back Door
DisassemblyDisassembly
DISASSEMBLY
PROCEDURE
1. REMOVE NO. 3 FLOOR WIRE
(a) Disconnect the 4 connectors and remove the 3 pieces of tape.
(b) Detach the 4 clamps to remove the No. 3 floor wire.
2. REMOVE REAR BUMPER SIDE BRACKET LH
(a) Remove the clip and 2 screws. ...
Installation
INSTALLATION
PROCEDURE
1. INSTALL FRONT DRIVE SHAFT ASSEMBLY
(a) Coat the spline of the inboard joint shaft assembly with ATF.
(b) Align the shaft splines and install the drive shaft with a brass bar and
hammer.
NOTICE:
Set the snap ring with ...
