Toyota 4Runner: Components

COMPONENTS

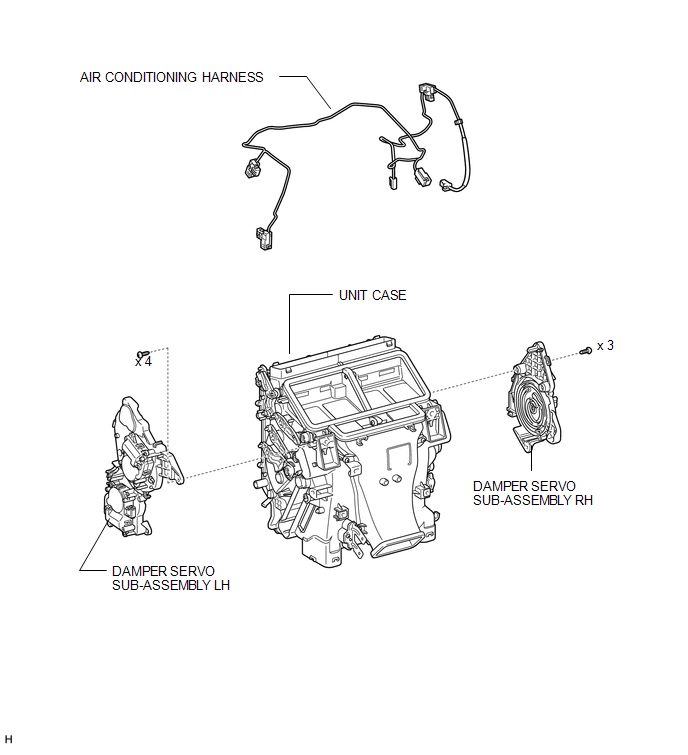

ILLUSTRATION

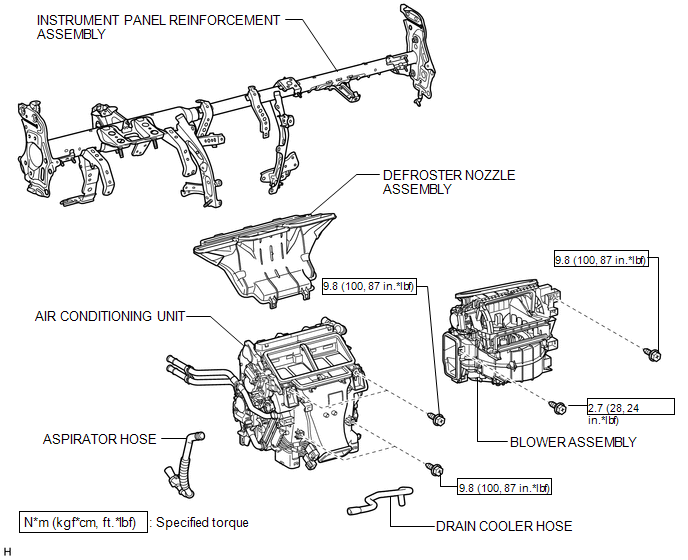

ILLUSTRATION

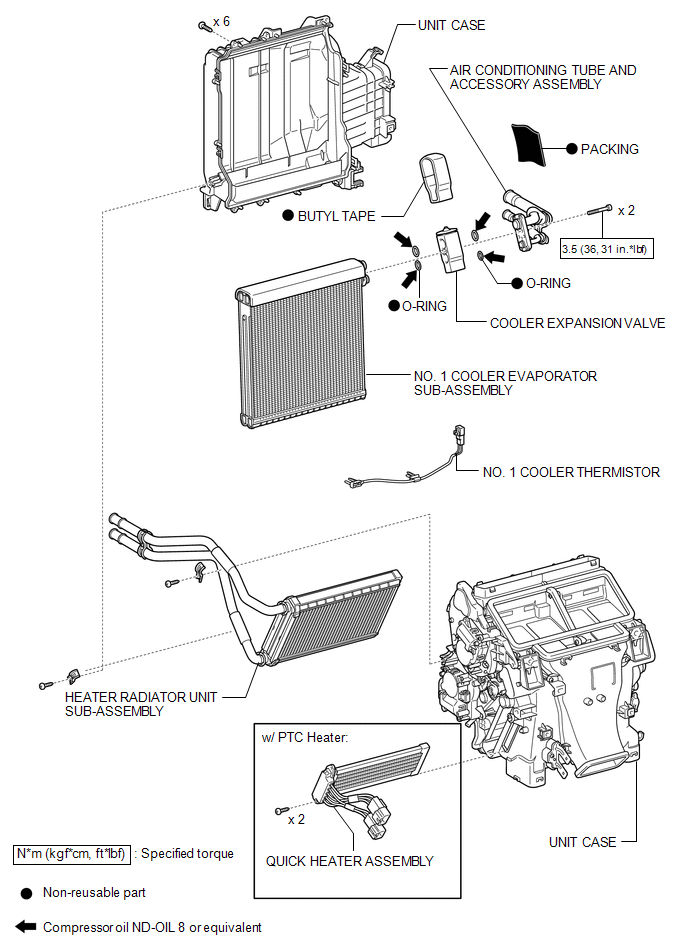

ILLUSTRATION

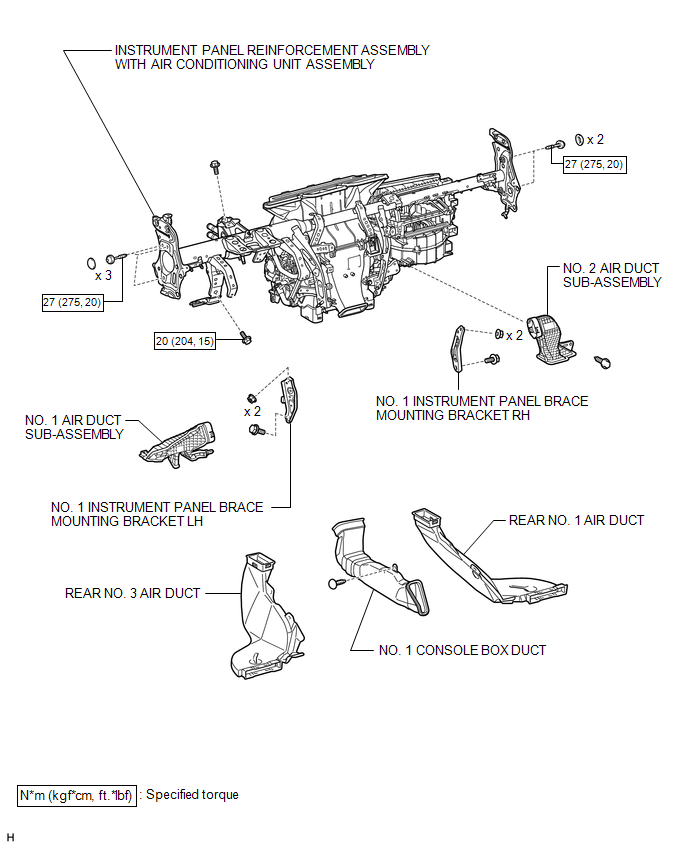

ILLUSTRATION


Front Evaporator Temperature Sensor
...

Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE BLOWER ASSEMBLY (a) Remove the screw. (b) Detach the 2 claws and remove the blower unit assembly. 2. REMO ...

Other materials about Toyota 4Runner:

Back-up Power Source Circuit
DESCRIPTION The back-up power source circuit for the air conditioning amplifier assembly is shown below. Power is supplied even after the ignition switch is turned off and is used for diagnostic trouble code memory, etc. WIRING DIAGRAM CAUTION / NOTIC ...

Problem Symptoms Table
PROBLEM SYMPTOMS TABLE HINT: Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of ...
