COMPONENTS

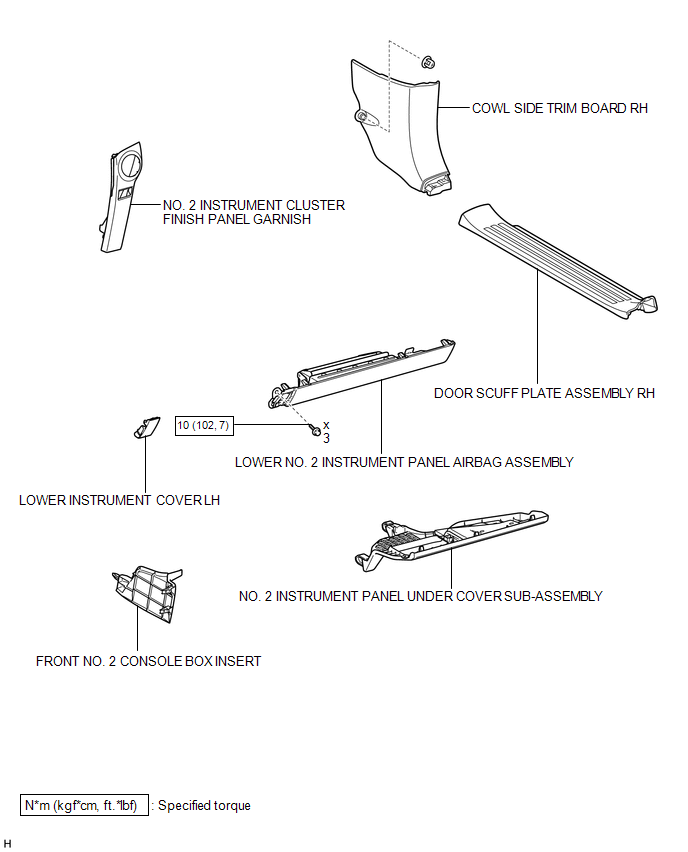

ILLUSTRATION

Knee Airbag Assembly(for Front Passenger Side)

...

Installation

INSTALLATION PROCEDURE 1. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY (a) Connect the connector. NOTICE: When handling the airbag connector, take care not to damage the ai ...
