PROCEDURE
|
1. |
CHECK IMAGE QUALITY SETTING |
(a) Turn the light control switch to the tail or head position.
(b) Check that the daytime screen setting on the display adjustment screen is set to on.
|
Result |
Proceed to |
|---|---|
|
Daytime screen setting is set to on. |
A |
|
Daytime screen setting is set to off. |
B |
| A | |
CHANGE DAYTIME SCREEN SETTING TO OFF |
|
|
2. |
CHECK VEHICLE SIGNAL (OPERATION CHECK) |
|

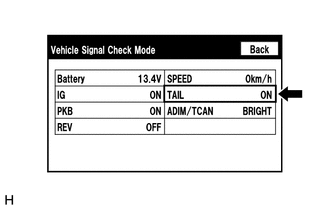

(a) Enter the "Vehicle Signal Check Mode" screen. Refer to Check Vehicle
Signal in Operation Check (See page |
|
(b) Check that the display changes between ON and OFF according to the light control switch operation.
OK:
|
Light Control Switch |
Display |
|---|---|
|
Tail or head |
ON |
|
Off |
OFF |
HINT:
The display is updated once per second. It is normal for the display to lag behind the actual switch operation.
| OK | |
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY |
| NG | |
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE |
