The fog lights secure excellent visibility in difficult driving conditions, such as in rain and fog.

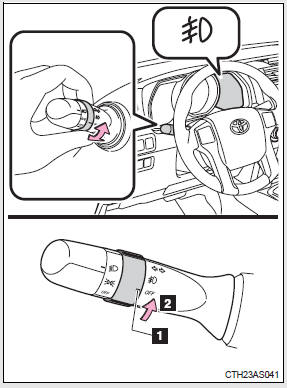

Type A
1. Turns the front fog lights
off
2. Turns the front fog lights on

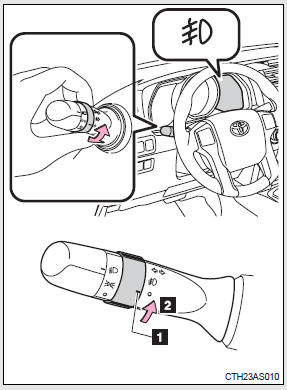

Type B
1. Turns the front fog lights
off
2. Turns the front fog lights on
Fog lights can be used when
The headlights are on in low beam.
