INSPECTION

PROCEDURE

1. INSPECT NO. 1 SPEAKER ASSEMBLY WITH BOX

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 (WF1+) - 3 (WF1-)	Always	1.6 to 2.4 Ω
2 (WF2+) - 4 (WF2-)	Always	1.6 to 2.4 Ω

Text in Illustration

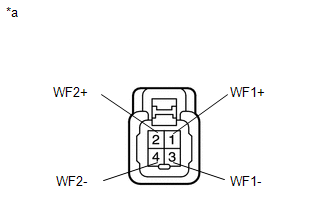

*a	Component without harness connected (No. 1 Speaker Assembly with Box)

If the result is not as specified, replace the No. 1 speaker assembly with box.
